Sealey SA682.V3 Instructions

Thank you for purchasing a Sealey Product. Manufactured to a high standard this product will, if used according to these instructions
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL
REQUIREMENTS, WARNINGS AND CAUTIONS. USE THIS PRODUCT CORRECTLY AND WITH CARE FOR THE
PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE OR PERSONAL INJURY AND
WILL INVALIDATE THE WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
1. safety instructions
 Follow all workshop safety rules, regulations, and conditions when using wrench.
 WarninG! Disconnect from air supply before changing accessories or servicing.
 Maintain the wrench in good condition and replace any damaged or worn parts. Use
genuine parts only. Non-authorised parts may be dangerous and will invalidate the warranty.
 WarninG! Check correct air pressure is maintained and not exceeded. We recommended 90psi.
 Keep air hose away from heat, oil and sharp edges. Check air hose for wear before each
use and ensure that all connections are secure.
 Only use impact sockets which are specifically designed for use with an impact wrench.
 Wear approved safety eye/face shield, ear defenders, and hand protection.
 WarninG! Due to the possible presence of asbestos dust from brake linings, when working
around vehicle brake systems we recommend you wear suitable respiratory protection
 Maintain correct balance and footing. Ensure the floor is not slippery and wear non-slip shoes.
 Keep children and unauthorised persons away from the working area.
 Do not use the wrench for a task it is not designed to perform.
 WarninG! Do not use wrench if damaged or thought to be faulty. (Contact Service Agent).
 Do not use wrench unless you have been instructed in its use by a qualified person.
 Do not drop, throw or abuse the wrench as it is a precision tool.
 Do not carry the wrench by the air hose, or yank the hose from the air supply.
 Do not operate wrench if you are tired, under the influence of alcohol, drugs or intoxicating medication.
 Do not carry wrench with your hand on the power trigger in order to avoid unintentional starting.
 Do not direct air from the air hose at yourself or others.
 When not in use disconnect from air supply and store in a safe, dry, childproof location.
2. introDuction & sPecifications

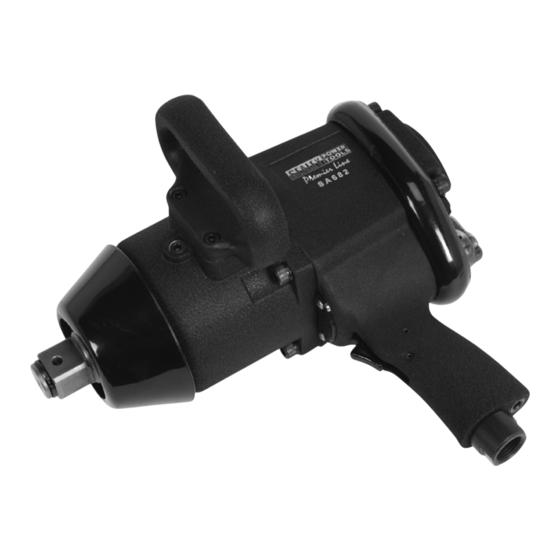

Super-duty 1" pistol grip air wrench suitable for commercial and agricultural vehicle use. Pin clutch
gives high power:weight ratio. Four-position torque control with reverse. Supplied with side handle
and spring balance hoop.
Drive Size . . . . . . . . . . . . . . . . . . . 1"Sq
Working/Max Torque. . . .1400/1600ft/lb
Ultimate Torque . . . . . . . . . . . 1800ft/lb
Speed . . . . . . . . . . . . . . . . . . . 3400rpm
Air Consumption. . . . . . . . . . . . . 12cfm
Operating Pressure . . . . . . . . . . . 90psi
Air Inlet Size . . . . . . . . . . . . . 1/2" BSP
Weight . . . . . . . . . . . . . . . . . . . .10.3kg
Noise Power . . . . . . . . . . . . . . . . 98dBA
Noise Pressure. . . . . . . . . . . . . . 87dBA
Vibration . . . . . . . . . . . . . . . . . . 5.9m/s²
Uncertainty . . . . . . . . . . . . . . . 2.36m/s²
© Jack Sealey Limited
INSTRUCTIONS FOR
air iMPact WrencH
sa682.V3
MODEL No.
Original Language Version
SA682.V3 Issue: 4(SP) - 18/12/13
