Sealey SA686 Instructions

thank you for purchasing a Sealey product. manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
refer to Wear eye
instruction protection
manual
1. SaFetY
follow all workshop safety rules, regulations and conditions when using wrench.
9
warninG! disconnect from air supply before changing accessories or servicing.
‰
maintain the wrench in good condition and replace any damaged or worn parts. Use genuine parts only. Unauthorised parts may be
9
dangerous and will invalidate the warranty.
warninG! check correct air pressure is maintained and not exceeded. We recommend 90psi.
‰
Keep air hose away from heat, oil and sharp edges. check air hose for wear before each use and ensure that all connections are
9
secure.
Only use impact sockets which are specifically designed for use with an impact wrench.
9
Wear approved safety eye/face shield, ear defenders and hand protection.
9
warninG! due to the possible presence of asbestos dust from brake linings, when working around vehicle brake systems we
‰
recommend you wear suitable respiratory protection.
maintain correct balance and footing. ensure the floor is not slippery and wear non-slip shoes.
9
Keep children and non essential persons away from the working area.
9
do not use the wrench for a task it is not designed to perform.
8
warninG! do not use wrench if damaged or thought to be faulty. (contact service Agent).
‰
do not use wrench unless you have been instructed in its use by a qualified person.
8
do not carry the wrench by the air hose, or yank the hose from the air supply.
8
do not operate wrench if you are tired or under the influence of alcohol, drugs or intoxicating medication.
8
do not carry wrench with your hand on the trigger in order to avoid unintentional starting.
8
do not direct air from the air hose at yourself or others.
8
When not in use disconnect from air supply and store in a safe, dry, childproof location.
9
2. introduction

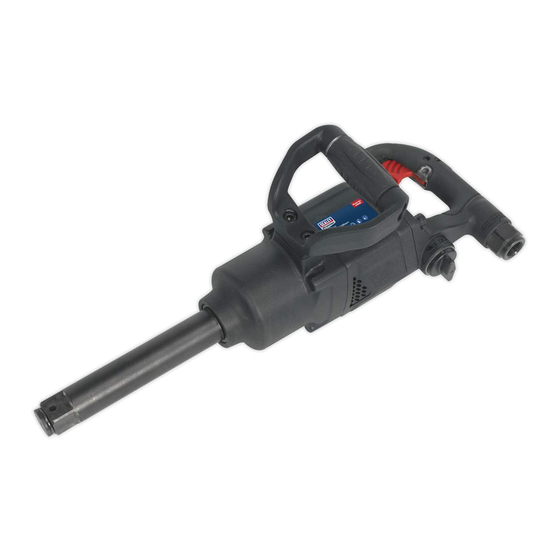

compact wrench weighs just 8.1kg, manufactured from a composite and aluminium housing. fitted with soft grip handles to help reduce vibration
and chill effects. features twin hammer function providing extremely high output ideal for commercial and agricultural use. twist controls for
simple choice of speed and direction.
3. SpeciFication
model no: .................................................................... sA686
drive: ............................................................................ 1"sq.
Working torque: ........................................1800lb.ft (2448nm)
maximum torque: .....................................2000lb.ft (2720nm)
ultimate torque: ........................................2100lb.ft (2856nm)
free speed: .............................................................. 5000rpm
Air consumption: ............................................................ 9cfm
operating pressure: ...................................................... 90psi
inlet size: ...................................................................1/2"BsP
Weight: .......................................................................... 8.1kg
noise power/pressure: ..................................... 120/104dB(A)
Vibration/uncertainty: ....................................... 14.5/1.93m/s²
© Jack sealey limited
instructions for
air impact wrench 1"Sq. drive
twin hammer - compact
model no:
Wear ear Wear a mask Wear protective
protection
Original Language Version
Sa686
gloves
sA686 | issue: 5 (l) 04/10/17
