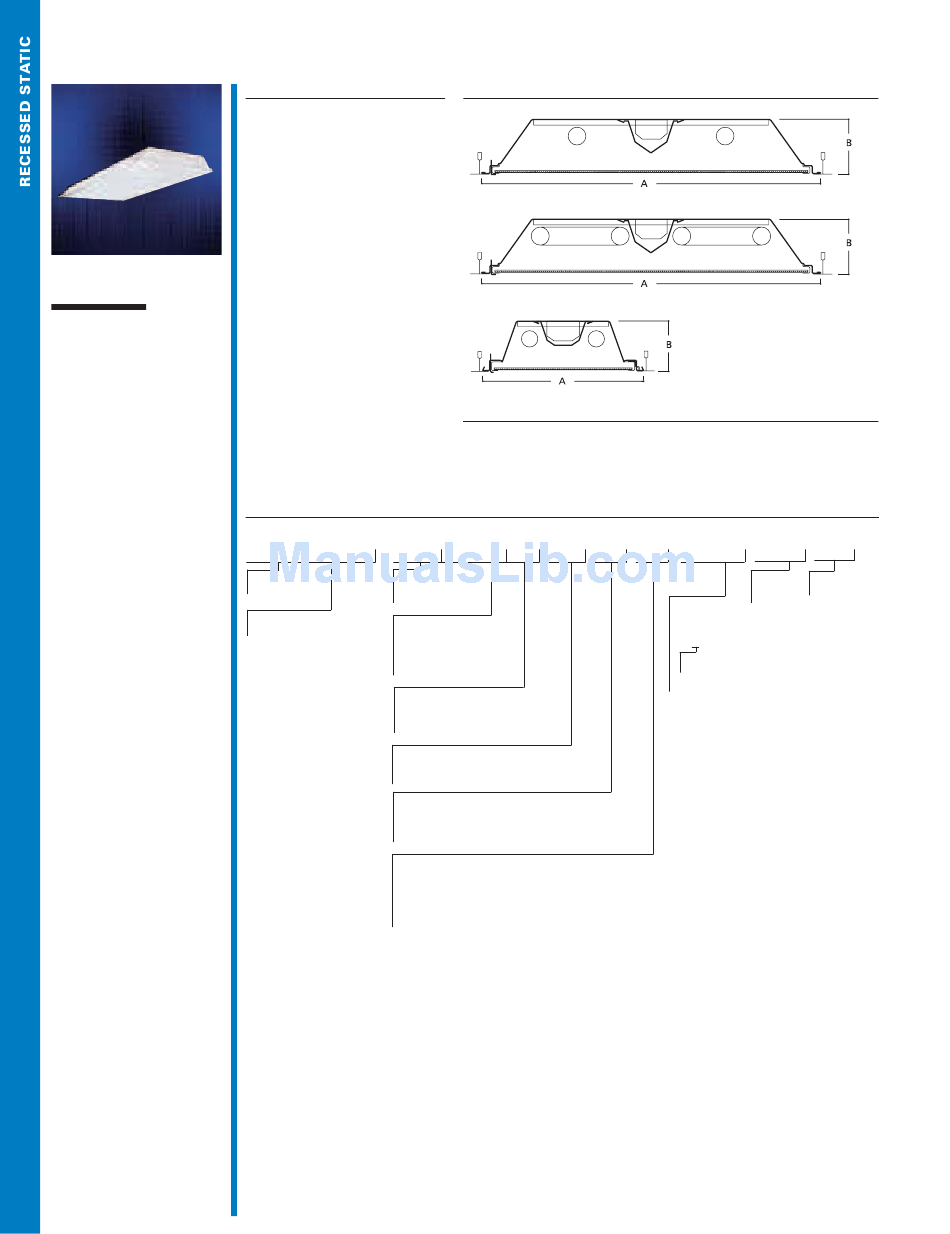

COOPER LIGHTING - METALUX
G SERIES
1 ' x 4 ' , 2 ' x 2 ' , 2 ' x 4 '
Tr o f f e r
2 , 3 o r 4 L a m p
L O W P R O F I L E
C O M M E R C I A L G R A D E
R E C E S S E D T 1 2 S TAT I C
T R O F F E R
• Equipped with energy
saving ballasts/complies
with federal energy
efficiency standards
• Reinforced flat white steel
door, mitered corners
• Spring loaded latch
• Full length mechanical light
trap and positive end light
seal
• T-hinges
• One piece die embossed
housing
• Unibody housing/end
plates with mechanically
weld secured
• Four auxiliary fixture end
suspension points
provided
• End plate grid-lock feature
• For drywall applications,
field install flange kit
available. See Technical
Section for detail.
• UL/CUL Listed. Suitable for
damp locations.
400
COOPER LIGHTING
D E S C R I P T I O N
The G Series features a nominal
3-3/4" deep low profile fixture
housing with a premium finish for
optimum performance. The series
also features recessed aesthetics
and the latest in energy efficient
technology. Luminaires are
compatible with today's popular
ceiling systems and are available
with a number of options and
accessories for application
versatility. The G Series features
efficiency, quality, performance
and economy in a low profile
luminaire. The G Series is an
excellent choice for commercial
office spaces, schools, hospitals or
retail merchandising areas.
O R D E R I N G I N F O R M AT I O N
S A M P L E N U M B E R : 2 G - 2 4 0 A - 1 2 0 V - L E 3 - U
2=2' Width
Number of Lamps
2, 3, or 4 Lamps
Blank=1' Width
(Not included)
Series
Wattage (Length)
(1)
G=Grid/Lay-in – Standard
40=40W T12 (48")
20=20W T12 (24")
U3=40W T12 (24")
U6=40W T12 (24")
Shielding
A=#12 PatternAcrylic
(See Lens and Louver Tables for
additional shielding options)
Starting Type
LTS=Low Trigger Start (20 Watt only)
HTS=High Trigger Start (20 Watt only)
Voltage
120V=120 Volt
277V=277 Volt
347V=347 Volt
Options
GL=Single Element Fuse
GM=Double Element Fuse
Lamps - for lamps installed, see lamp options table
Flex - for flex installed, see flex ordering table
Emergency - for EM installed, see EM options table
(1)
NOTES:
An EQ Grid Clip is recommended for all 9/16" ceiling systems.
US voltages and frequencies for international markets.
For complete product data, reference the Fluorescent Specification binder. Specifications & dimensions subject to change without notice. Consult your Cooper Lighting
Representative for availability and ordering information.
®
D I M E N S I O N S
2' x 4'
2' x 2'
1' x 4'
NOMINAL SIZE
A
1' x 4'
11-3/4" (298mm)
2' x 2'
23-3/4" (603mm)
2' x 4'
23-3/4" (603mm)
(2)
(2)
(2)
(3)
(2)
Standard off-center ballast compartment on 3-lamp fixtures.
B
3-3/4" (95mm)
3-3/4" (95mm)
3-3/4" (95mm)
Options
Packaging
(See Options
U=Unit Pack
Section)
(3)
Ballast Type
Blank=Standard Magnetic Ballast (Biax & 20W)
LE3=T12 Magnetic Energy Saving
EB2 =T12 Electronic Rapid Start.
No. of Ballast
1 or 2
(For complete details on generic or to specify
manufacturer's ballast see pg. 469)
(3)
Products also available in non-
