VOLTCRAFT PL-110SM - Lux meter Manual

INTENDED USE

Robust and easy-to-operate meter to measure the level of solar radiation. This allows quick and reliable checking of the efficiency of PV and solar systems. Just measure the solar radiation per m², multiply by the PV system's surface area and then compare to the current grid feed-in. The PL-110SM is also suitable for determining the ideal location of a new system. It is capable of recording the maximum/minimum value of the measured light power. The product can hold the current reading as well. The reading can be shown in either 'W/m²' or 'BTU/(ft²_*h)'.

This product fulfils European and national requirements related to electromagnetic compatibility (EMC). CE conformity has been verified and the relevant statements and documents have been deposited at the manufacturer.

Unauthorised conversion and/or modification of the device are inadmissible because of safety and approval reasons (CE). Any usage other than described above is not permitted and can damage the product and lead to associated risks such as short-circuit, fire, electric shock, etc. Please read the operating instructions thoroughly and keep them for further reference.

CONTENT OF DELIVERY

• Solar Radiation Measuring Instrument
• Cap
• AAA Battery x 3
• Carrying case
• Operating instructions

SAFETY INSTRUCTIONS

We do not assume liability for resulting damages to property or personal injury if the product has been abused in any way or damaged by improper use or failure to observe these operating instructions. The warranty/ guarantee will then expire!
The icon with exclamation mark indicates important information in the operating instructions. Carefully read the whole operating instructions before operating the device, otherwise there is risk of danger.

Personal safety

• The product is not a toy and should be kept out of reach of children!

Product safety

• When used in conjunction with other devices, observe the operating instructions and safety notices of connected devices.
• The product must not be subjected to heavy mechanical stress.
• The product must not be exposed it to extreme temperatures, intense vibration, or dampness.
• Do not use this product at attitude higher then 2000m.
• This is a precise device, do not go beyond its specification during operation or storage to prevent any possible damage or danger.

Battery safety

• Correct polarity must be observed while inserting the batteries.
• Batteries should be removed from the device if it is not used for a long period of time to avoid damage through leaking. Leaking or damaged batteries might cause acid burns when in contact with skin, therefore use suitable protective gloves to handle corrupted batteries.
• Batteries must be kept out of reach of children. Do not leave the battery lying around, as there is risk, that children or pets swallow it.
• All the batteries should be replaced at the same time. Mixing old and new batteries in the device can lead to battery leakage and device damage.
• Batteries must not be dismantled, short-circuited or thrown into fire. Never recharge nonrechargeable batteries. There is a risk of explosion!

Miscellaneous

• Repair works must only be carried out by a specialist/ specialist workshop.
• If you have queries about handling the device, that are not answered in this operating instruction, our technical support is available under the following address and telephone number: Voltcraft^®, 92242 Hirschau, Lindenweg 15, Germany, phone 0180 / 586 582 7

OPERATING ELEMENTS

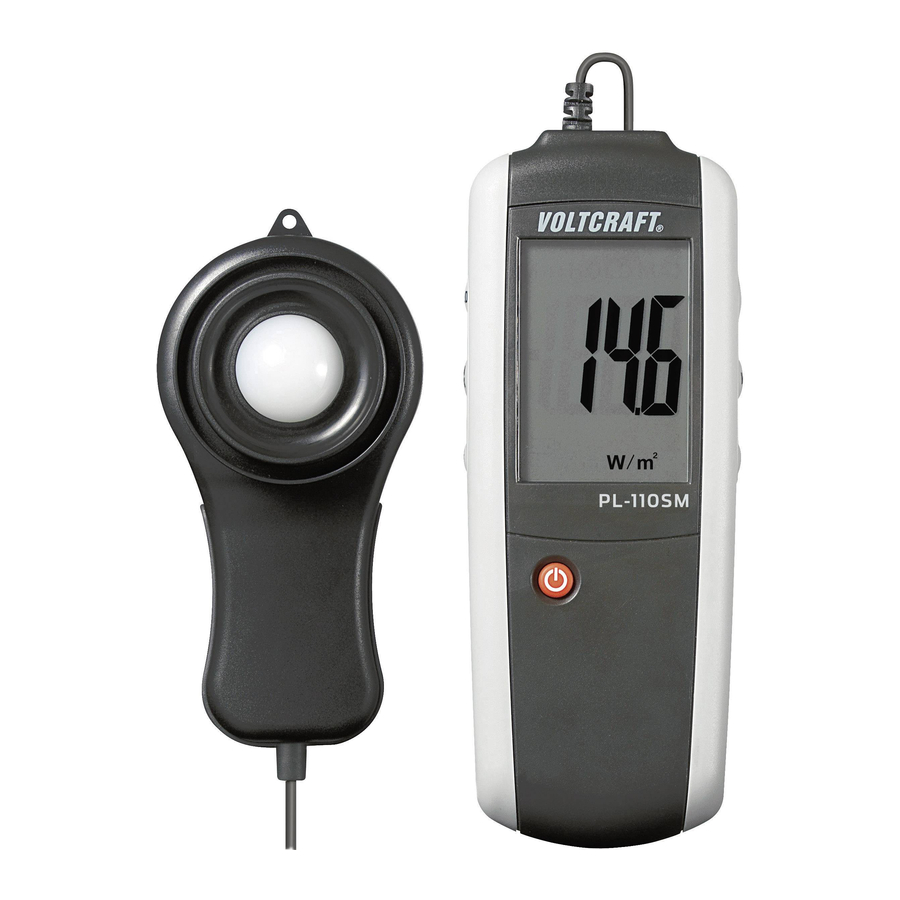

1. Sunlight probe
2. Sunlight probe connection
3. 0 Adjustment
4. LCD
5. On/off button
6. 'W/B' button
7. 'R' button
8. 'HOLD' button
9. 'MIN/MAX' button
10. Backlight button
11. Battery compartment

OPERATION

Please make sure the cap is covering the probe before you turn on the device.

1. Press the on/off (5) button.
2. The initial reading on the LCD (4) should be zero. If not, please adjust the 0 Adjustment (3) until the reading becomes zero.
3. Remove the cap and expose the probe (1) to the sunlight.
4. The power of the sunlight will be displayed on the LCD (4).
   • To change the unit of the reading, press the 'W/B' button (6). This product supports 'W/m²' or 'BTU/(ft²_*h)'.
   • To freeze the reading on the display, press the 'HOLD' button (8). The word 'HOLD' shows on the LCD (4) and the reading is frozen. To release the reading, press the 'HOLD' button (8) again.
   • If 'OL' is shown on the display, that means the measured data exceed 199.9. Press 'R' button (7) to switch to a larger range. Press 'R' button (7) again to switch back to the smaller range for an accurate measurement.
   • To obtain the minimum/maximum value of the current measurement, press the 'MIN/MAX' button (9). Press once to switch from the minimum to the maximum (and vice versa). 'MIN' or 'MAX' indicates the displayed reading is the minimum or the maximum value. Press and hold the 'MIN/MAX' button (9) for 1 second to switch back to the normal mode.
   • Press the backlight button (10) to turn the backlight of the LCD on or off.

CLEANING AND SERVICING

• Clean the device ONLY with a dry cloth. A wet cloth, water or any liquid should not be used.
• If the icon () appears, please replace the battery as soon as possible. To replace batteries, unscrew the screws at the back of the battery compartment. Replace the batteries with new batteries of the same type (AAA 1.5 V batteries) with the proper polarity. Then screw back the cover.

DISPOSAL

Dispose of waste electrical and electronic equipment

In order to preserve, protect and improve the quality of environment, protect human health and utilise natural resources prudently and rationally, the user should return unserviceable product to relevant facilities in accordance with statutory regulations.
The crossed-out wheeled bin indicates the product needs to be disposed separately and not as municipal waste.

Used batteries/ rechargeable batteries disposal

The user is legally obliged (battery regulation) to return used batteries and rechargeable batteries. Disposing used batteries in the household waste is prohibited! Batteries/ rechargeable batteries containing hazardous substances are marked with the crossed-out wheeled bin. The symbol indicates that the product is forbidden to be disposed via the domestic refuse. The chemical symbols for the respective hazardous substances are Cd = Cadmium, Hg = Mercury, Pb = Lead.

You can return used batteries/ rechargeable batteries free of charge to any collecting point of your local authority, our stores or where batteries/ rechargeable batteries are sold.
Consequently you comply with your legal obligations and contribute to environmental protection!

TECHNICAL DATA

These operating instructions are published by Voltcraft®,
Lindenweg 15, D-92242 Hirschau/ Germany, Phone +49 180 586 582 7.
All rights including translation reserved. Reproduction by any method, e.g. photocopy, microfilming, or the capture in electronic data processing systems require the prior written approval by the editor. Reprinting, also in part, is prohibited.
The operating instructions reflect the current technical specifications at time of print.
We reserve the right to change the technical or physical specifications.
© Copyright 2009 by Voltcraft^®.
