SIGE S.P.A.
TEL +39 071 90 90 000 R.A.
FAX +39 071 90 90 804
MADE AND ASSEMBLED IN ITALY
FEATURES
Laundry bins installed on the drawer with fabric bags. Suitable for Blum Tandembox drawers
FITTINGS
N°6 4,2x6,5
Self tapping TC screw
N°8 3,9x13
Self tapping TC screw
N°4 M5x8mm Screws
N°4 M5x13
Special hex key screw
N°1
Allen key

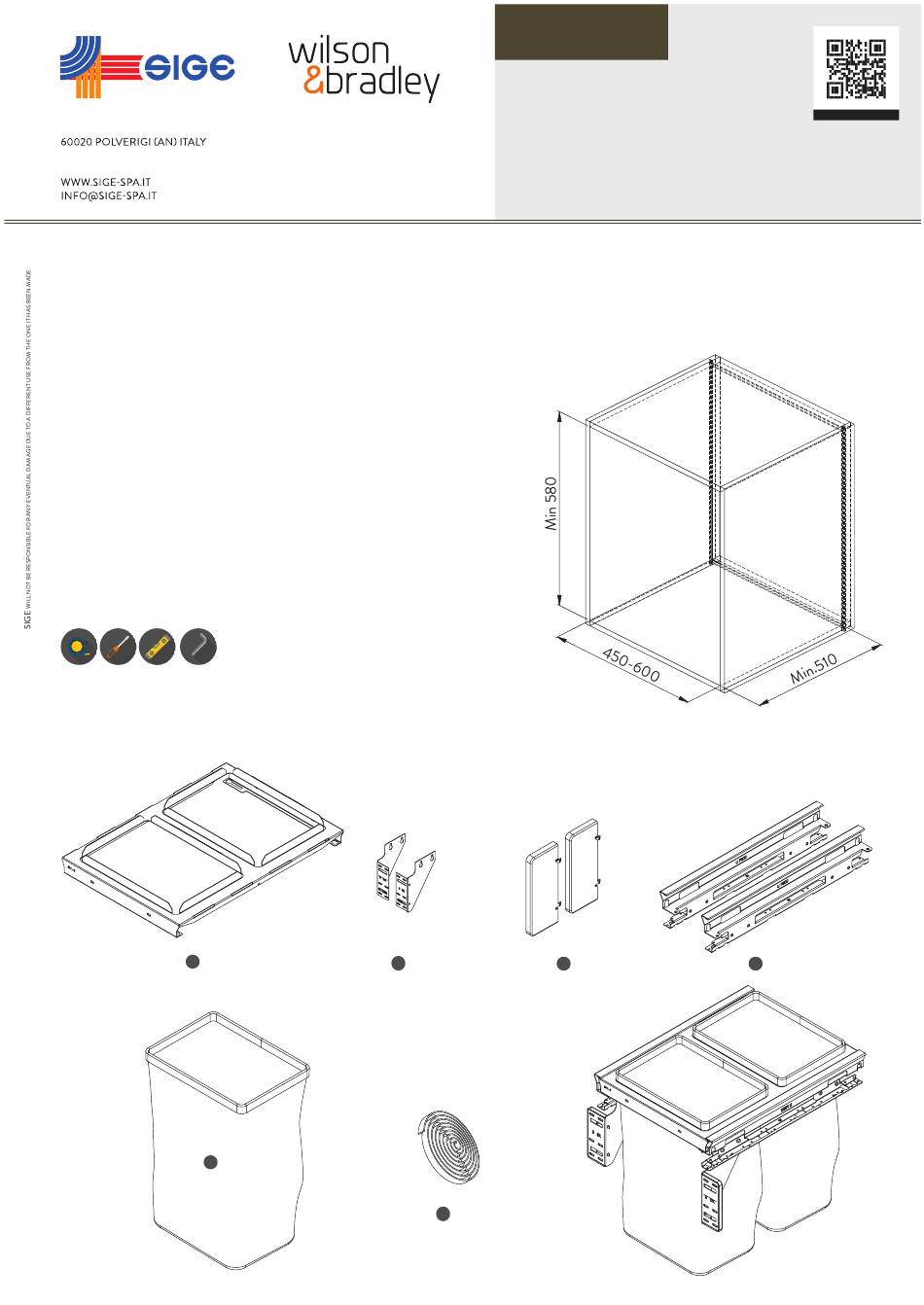

PARTS
A. N°1
Frame
B. N°2
Adjustable carter
C. N°2
Door stabilizing elements
D. N°2
Cover
E.
Laundry bags
F.
Velcro
TOOLS
MAINTENANCE
Clean with a soft, dry cloth. Avoid using solvents or abrasive. Wash bag at 30°.
A
E
MELBOURNE 94 BELL ST PRESTON,
3072 VICTORIA, AUSTRALIA
ABN: 56 630 675 375
1800 633 507
WWW.WILBRAD.COM.AU
SALES@WILBRAD.COM.AU
C
F
QUADRIFOGLIO
ART 511U-513U
DRAWERS: BLUM TANDEMBOX
REV 01.2021
F0IST00175
D
WEB SITE
B
Advertisement
Table of Contents
Related Manuals for SIGE wilson&bradley ART 511U-513U
Summary of Contents for SIGE wilson&bradley ART 511U-513U
- Page 1 QUADRIFOGLIO ART 511U-513U WEB SITE SIGE S.P.A. MELBOURNE 94 BELL ST PRESTON, 3072 VICTORIA, AUSTRALIA DRAWERS: BLUM TANDEMBOX TEL +39 071 90 90 000 R.A. ABN: 56 630 675 375 FAX +39 071 90 90 804 1800 633 507 WWW.WILBRAD.COM.AU REV 01.2021...
- Page 2 E.G. Blum TANDEMBOX drawer Fix the drawer slides at the suggested height. Assemble the back of the drawer (not supplied) on the drawer sistem. N°4 M5x13 Pre-mount the four M5x13 (special screws) on the carters B, as shown. (Do not tighten the screws).
- Page 3 Assemble the frame A with the carters B, as shown. Turn upside down and assemble the chassis with the drawer sides, as shown. * ATTENTION: mount the chassis in the correct way, as shown in the boxes, according to the type of drawer used. BLUM TANDEMBOX...
- Page 4 N°6 4,2x6,5 Fix the chassis in to the drawer using the six 4.2x6.5 screws, E.G. Blum TANDEMBOX drawer then rotate on the upside. E.G. Blum TANDEMBOX drawer Mount the drawer on the slides. Mount the door on the drawer.
- Page 5 Adjust the door through drawers adjustment system. Fix the frame A to the carters B by tightening the four M5x13 special screws E.G. Blum TANDEMBOX drawer from below with the allen key.
- Page 6 N°4 M5x8 Pre-mount four M5x8 screws on the front side of the carters B. Hang the door stabilizing elements C on the pre-mounted screws.
- Page 7 N°6 3,9x13 Position the door stabilizing elements C in contact with the door then tighten the E.G. Blum TANDEMBOX drawer four M5x8 screws, finally fix the stabilizing elements C to the door with six 3,9x13 screws. Mount the cover D.
- Page 8 If you have a solid door, fix the frame A to the door with a 3,9x13 screw to increase the stability. Apply the velcro and place the bags. 511U 511U Two bags One bag SIGE SPA HAS THE RIGHT TO MAKE CHANGES ON IT WITHOUT NOTICE...
