SIGE S.P.A.
TEL +39 071 90 90 000 R.A.
FAX +39 071 90 90 804
MADE AND ASSEMBLED IN ITALY
FEATURES
Pull out frame, slides with soft closing and adjustable spacers.
FITTINGS
N°4 M5x10 T.c.e.i. Screw
N°8 6,3x14 T.c. Euroscrew
N°1 Key exagonal
PARTS
A. N°1 Frame / Châssis / Marco
B. N°1 Lateral spacer Sx
C. N°1 Lateral spacer Dx
D. N°1 Slide kit
E. N°1 L.2.5m Rubber gasket
TOOLS
MAINTENANCE
Clean with a soft, dry cloth. Avoid using solvents or abrasive.
A
B
C
MELBOURNE 94 BELL ST PRESTON,
3072 VICTORIA, AUSTRALIA
ABN: 56 630 675 375
1800 633 507
WWW.WILBRAD.COM.AU
SALES@WILBRAD.COM.AU

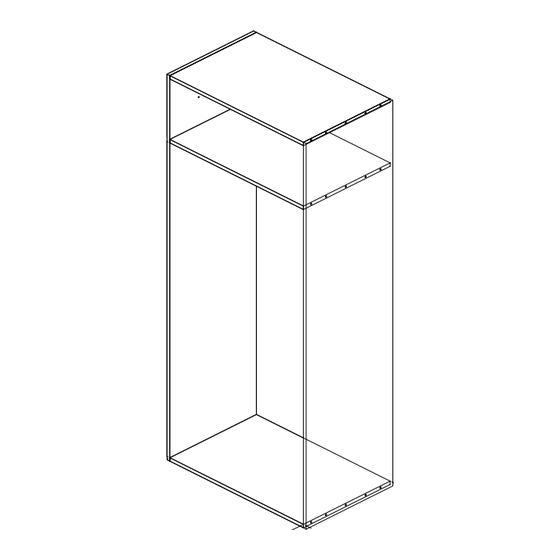

L. CABINET
450
500
600
800
900
1000
1200
E
KAOS
ART K100
SIGE SLIDES
REV 00.2022
F0IST00198
X MIN
X MAX
400
418
450
468
550
568
750
768
850
868
950
968
1150
1168
KG
WEB SITE
H 58
H 128
Z
min 250
min 320
7
KG
7
D
Advertisement
Related Manuals for SIGE wilson & bradley KAOS ART K100
Summary of Contents for SIGE wilson & bradley KAOS ART K100
- Page 1 KAOS ART K100 WEB SITE SIGE S.P.A. MELBOURNE 94 BELL ST PRESTON, 3072 VICTORIA, AUSTRALIA TEL +39 071 90 90 000 R.A. ABN: 56 630 675 375 SIGE SLIDES FAX +39 071 90 90 804 1800 633 507 WWW.WILBRAD.COM.AU REV 00.2022 SALES@WILBRAD.COM.AU...
- Page 2 N°4 M5x10 Disassemble the spacers (B and C) and screw the guides in the indicated holes. N°8 6.3x14 Pre-drill the sides of the cabinet (ø5x13) at the indicated dimensions and screw the spacers. EURO SCREW SELF TAPPING SCREW...
- Page 3 Place the spacer inside the profile. Insert the rubber gasket inside the groove and hook the frame to the guides as shown. CLICK!
- Page 4 Adjust both spacers to the same distance, then tighten the 6 screws (2 rear and 4 lower). CLICK! SIGE SPA HAS THE RIGHT TO MAKE CHANGES ON IT WITHOUT NOTICE...
