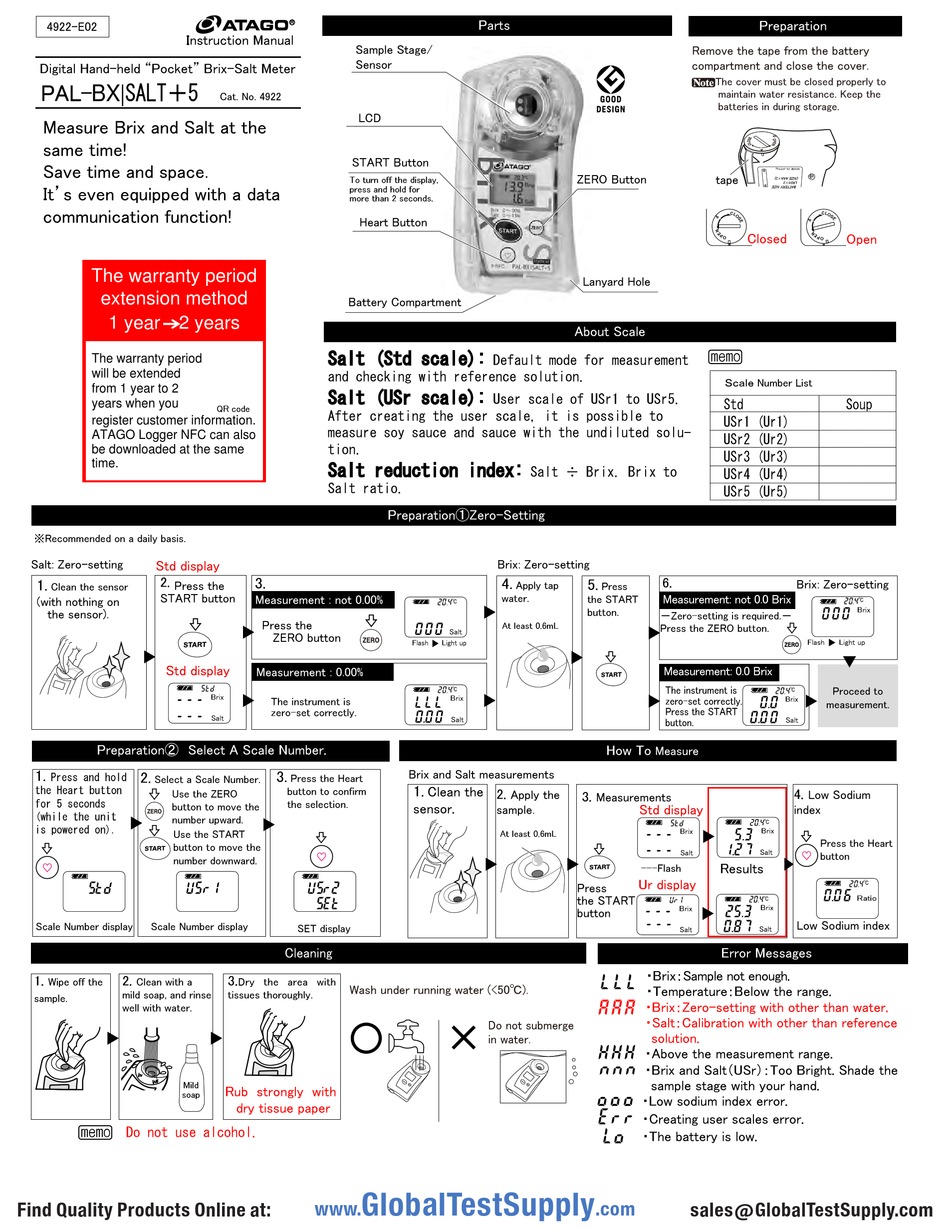

ATAGO PAL-BX/SALT+5 Instruction Manual

4922-E02
Instruction Manual
Digital Hand-held "Pocket" Brix-Salt Meter
PAL-BX|SALT＋5
Measure Brix and Salt at the
same time!
Save time and space.
It's even equipped with a data
communication function!
The warranty period
extension method
1 year 2 years
The warranty period
will be extended
from 1 year to 2
years when you
register customer information.
ATAGO Logger NFC can also
be downloaded at the same
time.
※Recommended on a daily basis.
Salt: Zero-setting Std display
2.
1.
Press the
Clean the sensor
START button
(with nothing on
the sensor).
Std display
- - -
- - -
Preparation② Select A Scale Number.
1.
2.
Press and hold
Select a Scale Number.
the Heart button
Use the ZERO
for 5 seconds
button to move the
(while the unit
number upward.
is powered on).
Use the START
button to move the
number downward.
std USr1
Scale Number display Scale Number display
1. 2.
Wipe off the Clean with a
mild soap, and rinse
sample.
well with water.
Mild
soap
N Do not use alcohol.
