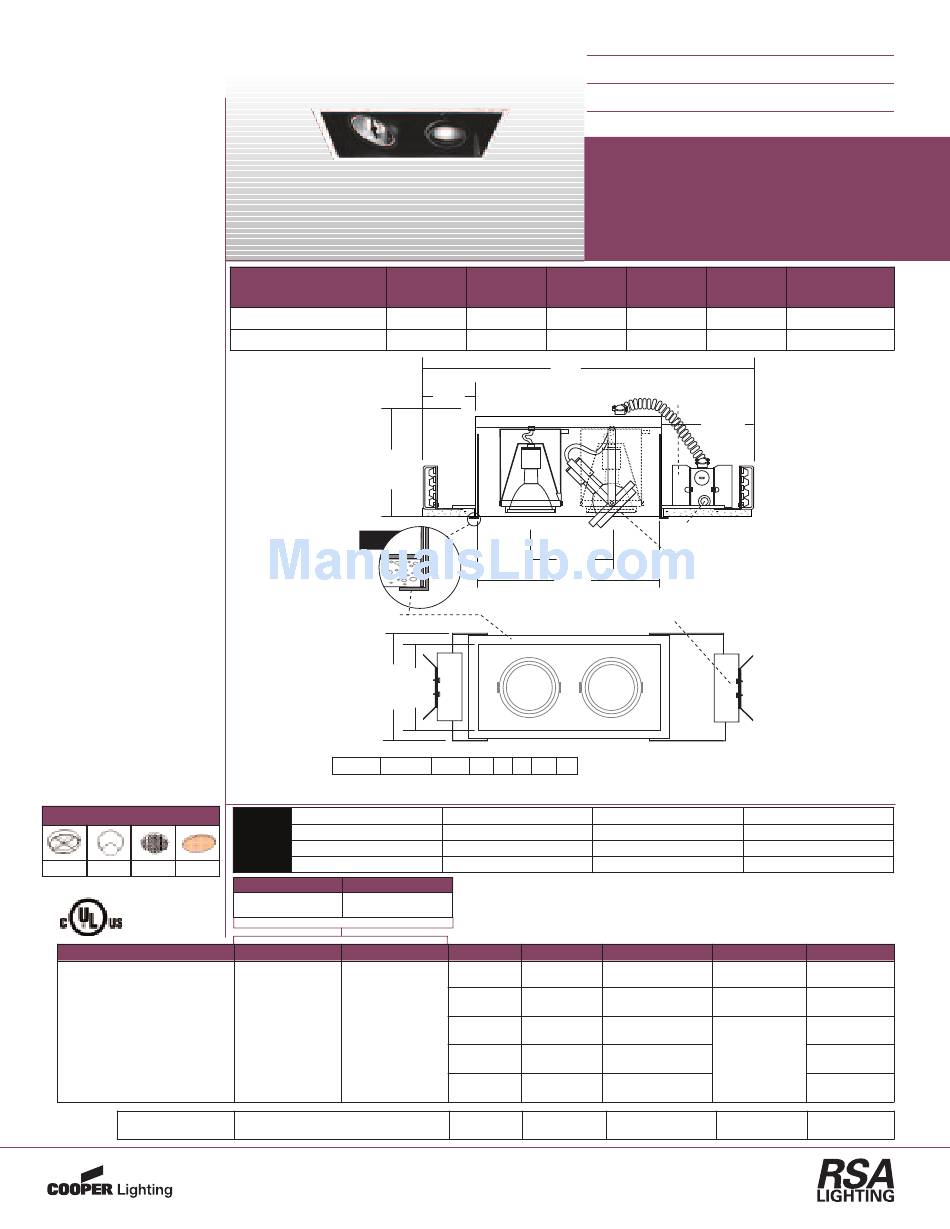

Cooper Lighting Combolight MLU Series MLU212 Specifications

RECESSED MIXED LAMP USAGE
LAMP GROUP 2
DESCRIPTION:
An adjustable fixture with mixed
lamp types suitable for multiple
downlighting applications with one
point of electrical entry. Powder coat
finish on housing & lamp assembly.
CONSTRUCTION:
Housing, Plaster Frame & Trim
Assembly: 18 gauge CRS. J-Box
Assembly: 16 gauge CRS (galva-
nized). Fixture utilizes a removable
trim sleeve to provide a 0.75" trim
around the ceiling opening and to
help conceal the inner hardware of
the fixture from sight below the ceil-
ing. Can accommodate 0.50" to 1.00"
ceiling thickness.
LAMP ASSEMBLY:
Two lamps mounted in adjustable
bezels. Each lamp can accept up to
two optical accessories. 380º x 45º
locking lamp adjustment. Provides
45º visual cut-off.
SYSTEM PROTECTION:
Thermal protection provided to
guard against overheating, and mis-
use of insulation over and around
fixture. Vent holes in housing pro-
vide cooler operation
ELECTRICAL:
Integral Aromat® electronic metal
halide ballsts for metal halide lamps.
Integral magnetic or electronic
transformers for low voltage lamps.
Fused and short circuit protection.
Junction box is UL listed for through
branch wiring, (access above ceiling
not required) for 8 #12, 90°C supply
conductors or 60°C for end of run.
Ballasts/Transformers and electrical
accessible through ceiling opening.
ALL RSA COMBOLIGHT PRODUCTS
ARE MADE IN THE U.S.A.
Other Adders
CC - Two Circuit
CP - Chicago Plenum
Optional Accessories - Details on Other Side
Baffle Snoots Louvers Lenses
Cat. # / Description
MLU212 - 2 Light Recessed
Combo w/ Mixed
Lamp Usage
SPECIFY -
MLU212
Configure with any combination of MR16, AR70, AR111,
PAR16, PAR20, PAR20MH, PAR30 or PAR30MH lamps.
Dimensions
Overall Length
w/ Magnetic Transformer 26.75"
w/ Electronic Transformer 26.75"
B
Trim
Detail
0.75" Trim
E D
MLU212 AR11150 PAR30 WH BK YK ELC 120
ORDERING EXAMPLE:
= Two Light Recessed Mixed Lamp Usage - One AR111 50W with One PAR30 - White Trim - Black Interior -
Regular Yoke Lamp Holder - Electronic Transformers - 120 Volt
Available MR1650 - MR16 12V 50W
Lamps
MR1675 - MR16 12V 75W
AR7020 - AR70 12V 20W
AR7050 - AR70 12V 50W
Cell 1 Cell 2
___ ___
Cell 1 Cell 2
(see table above)
Specifications and Dimensions subject to change without notice.
RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349-3031
Catalog #
Type
Project
A B C
Overall Height Aperture Length
9.10" 14.19"
9.10" 14.19"
A
5.25"
Lamp Cell 1 Lamp Cell 2
6.75"
C
Butterfly Brackets
for Black Iron Mounting
Lamp Cell 1 Lamp Cell 2
AR11135 - AR111 12V 35W PAR16 - PAR16 120V
AR11150 - AR111 12V 50W PAR20 - PAR20 120V
AR11175 - AR111 12V 75W PAR30 - PAR30 120V
AR111100 - AR111 12V 100W PAR20MH39 - PAR20MH 39W
Interior Finish
Trim Finish
BK - BK -
Black Black
WH - WH -
White White
S - S -
Silver Silver
PT - PT -
Custom Custom
TR -
Trimless
___ ___
COMBOLIGHT® MLU Series
TWO (2) Light Recessed
Multi-Lamp Luminaire w/ .75" Trim
Group 2 - Mixed Lamp Usage
New Construction
D E
Aperture Width Overall Width
6.50" 8.75"
6.50" 8.75"
Electronic Ballasts
and/or Electronic or
Magnetic Transformers
10.25" elc.
11.25" mag.
Thermal Protector
380º x 45º locking
angular adjustment
45º visual cut-off
PAR30MH39 - PAR30MH 39W
PAR30MH70 - PAR30MH 70W
Lamp Holder Transformer
YK - ELC -
Regular Yoke Electronic
RT - MAG -
Retractable Yoke Magnetic
DG - For use with low
Double Gimbal
voltage lamps only.
Transformer types
may not be mixed.
___
___
Ceiling Cut-Out
7.37" x 15.27"
7.37" x 15.27"
Voltage
120 -
120 Volt
277 -
277 Volt
