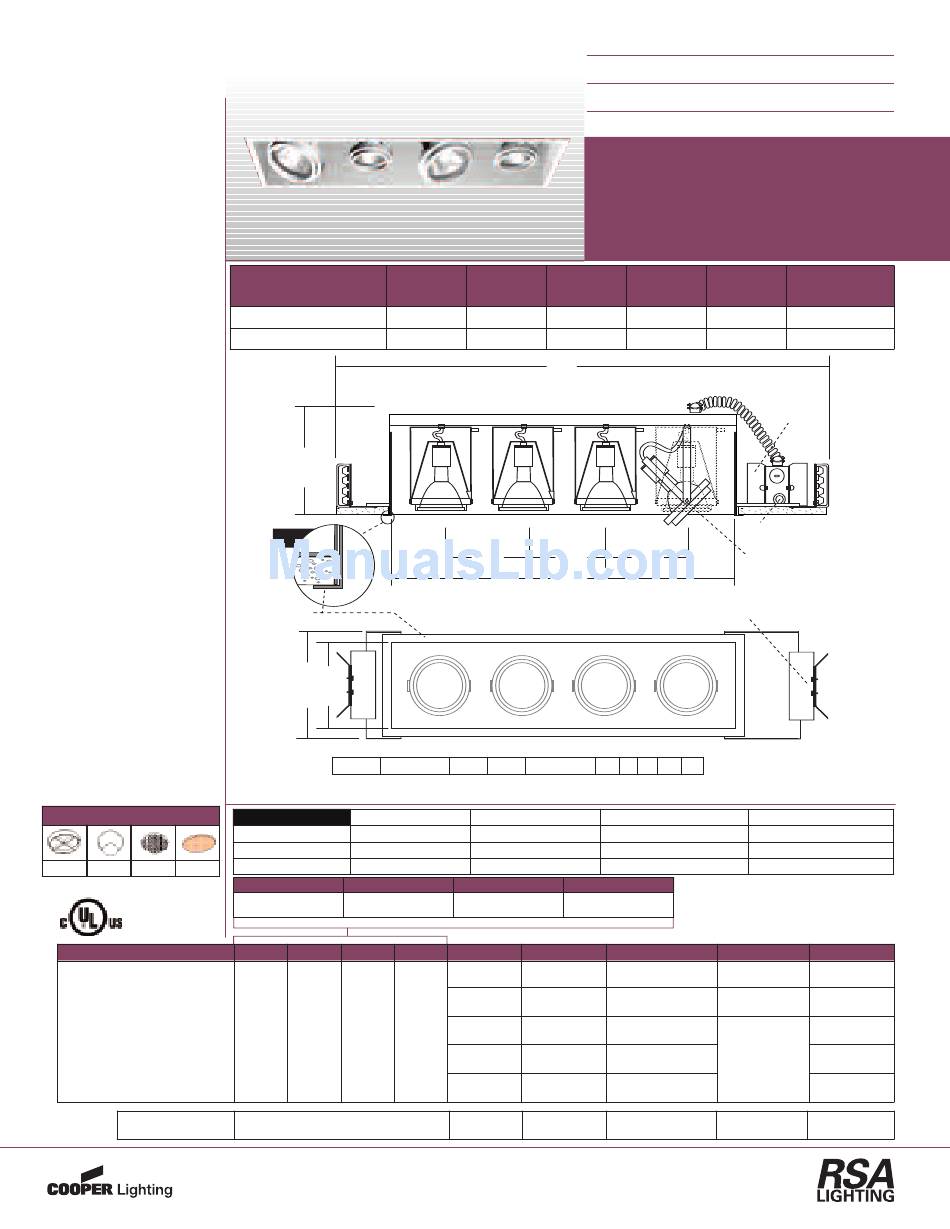

Cooper Lighting COMBOLIGHT MLU Series MLU314 Specifications

RECESSED MIXED LAMP USAGE
LAMP GROUP 3
DESCRIPTION:
An adjustable fixture with mixed
lamp types suitable for multiple
downlighting applications with one
point of electrical entry. Powder coat
finish on housing & lamp assembly.
CONSTRUCTION:
Housing, Plaster Frame & Trim
Assembly: 18 gauge CRS. J-Box
Assembly: 16 gauge CRS (galva-
nized). Fixture utilizes a removable
trim sleeve to provide a 0.75" trim
around the ceiling opening and to
help conceal the inner hardware of
the fixture from sight below the ceil-
ing. Can accommodate 0.50" to 1.00"
ceiling thickness.
LAMP ASSEMBLY:
Four lamps mounted in adjustable
bezels. Each lamp can accept up to
two optical accessories. 380º x 45º
locking lamp adjustment. Provides
45º visual cut-off.
SYSTEM PROTECTION:
Thermal protection provided to
guard against overheating, and mis-
use of insulation over and around
fixture. Vent holes in housing pro-
vide cooler operation
ELECTRICAL:
Integral Aromat® electronic metal
halide ballots for metal halide lamps.
Integral magnetic or electronic
transformers for low voltage lamps.
Fused and short circuit protection.
Junction box is UL listed for through
branch wiring, (access above ceiling
not required) for 8 #12, 90°C supply
conductors or 60°C for end of run.
Ballasts/Transformers and electrical
accessible through ceiling opening.
ALL RSA COMBOLIGHT PRODUCTS
ARE MADE IN THE U.S.A.
Other Adders
CC - Two Circuit
CP - Chicago Plenum
Optional Accessories - Details on Other Side
Baffle Snoots Louvers Lenses
Cat. # / Description
MLU314 - 4 Light Recessed
Combo w/ Mixed
Lamp Usage
SPECIFY -
MLU314
Configure with any combination of MR16, AR70, AR111, PAR16,
PAR20, PAR20MH, PAR30, PAR30MH, PAR38 or PAR38MH lamps.
Dimensions
Overall Length
w/ Magnetic Transformer 57.55"
w/ Electronic Transformer 52.55"
B
Trim
Detail
0.75" Trim
E D
MLU314 PAR38MH70 PAR20 PAR20 PAR38MH70 WH BK YK --- 120
ORDERING EXAMPLE:
= Four Light Recessed Mixed Lamp Usage - Two PAR38MH 70W with Two PAR20 - White Trim - White Interior -
Regular Yoke Lamp Holder - 120 Volt
Available Lamps AR7050 - AR70 12V 50W
MR1650 - MR16 12V 50W AR11135 - AR111 12V 35W PAR16 - PAR16 120V
MR1675 - MR16 12V 75W AR11150 - AR111 12V 50W PAR20 - PAR20 120V
AR7020 - AR70 12V 20W AR11175 - AR111 12V 75W PAR30 - PAR30 120V
Cell 1 Cell 2
___ ___
Cell 1 Cell 2 Cell 3 Cell 4
(see table above)
Specifications and Dimensions subject to change without notice.
RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349-3031
Catalog #
Type
Project
A B C
Overall Height Aperture Length
9.10" 35.00"
9.10" 35.00"
A
Lamp Cell 1 Lamp Cell 2 Lamp Cell 3
8.75" 8.75"
C
Lamp Cell 1 Lamp Cell 2 Lamp Cell 3
AR111100 - AR111 12V 100W PAR38 - PAR38 120V
Cell 3 Cell 4
___ ___
Interior Finish
Trim Finish
BK - BK -
Black Black
WH - WH -
White White
S - S -
Silver Silver
PT - PT -
Custom Custom
TR -
Trimless
___ ___
COMBOLIGHT® MLU Series
FOUR (4) Light Recessed
Multi-Lamp Luminaire w/ .75" Trim
Group 3 - Mixed Lamp Usage
New Construction
D E
Aperture Width Overall Width
8.50" 10.75"
8.50" 10.75"
Aromat® Electronic
Ballasts and/or
Electronic or
Magnetic
Transformers
Lamp Cell 4
Thermal Protector
380º x 45º locking
8.75"
angular adjustment
45º visual cut-off
Butterfly Brackets
for Black Iron Mounting
Lamp Cell 4
PAR38MH70 - PAR38MH 70W
PAR20MH39 - PAR20MH 39W PAR38MH100 - PAR38MH 100W
PAR30MH39 - PAR30MH 39W
PAR30MH70 - PAR30MH 70W
Lamp Holder Transformer
YK - ELC -
Regular Yoke Electronic
RT - MAG -
Retractable Yoke Magnetic
DG - Fo use with low
Double Gimbal
voltage lamps only.
Transformer types
may not be mixed.
___
___
Ceiling Cut-Out
7.37" x 36.07"
7.37" x 36.07"
Voltage
120 -
120 Volt
277 -
277 Volt
___
