DR. BENDER EBM 33 F Manual

Drilling motor
Hide thumbs Also See for EBM 33 F:
Table of Contents

Advertisement

Quick Links

Download this manual

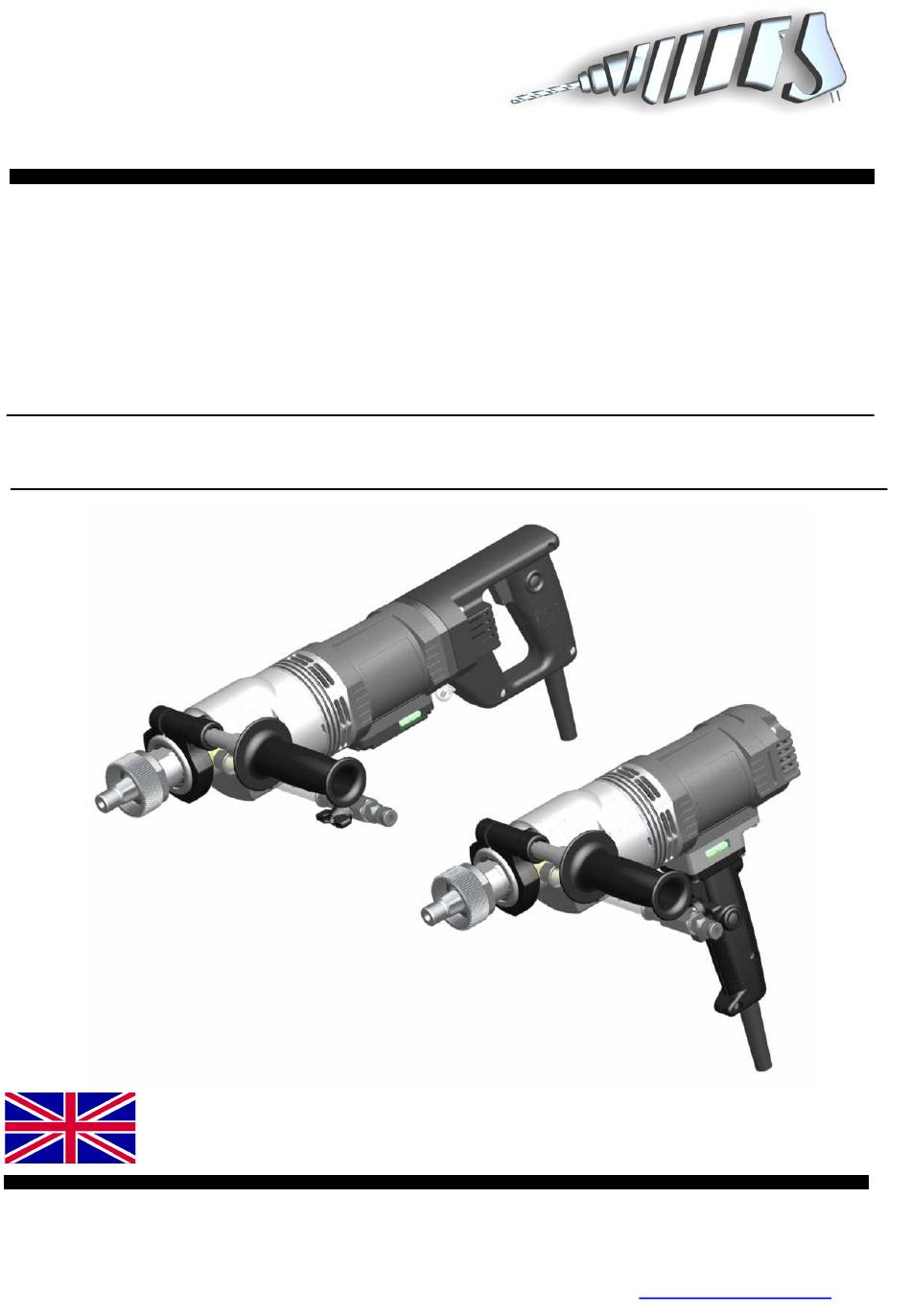

DR. BENDER
Innovative Elektrowerkzeuge
Manual for
drilling motor
230 V
Valid from 01.2019
All rights reserved
DR. BENDER
Our website address is: http://www.dr-bender.de
GmbH
Art.-Nr.
GmbH • D-75382 Althengstett • Tel 07051-9291-0 • Fax 07051-9291-91
EBM 33 F
EBM 33 S
201296
201297
• eMail:
Subject to alterations
info@dr-bender.de

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EBM 33 F and is the answer not in the manual?

Questions and answers

Related Manuals for DR. BENDER EBM 33 F

Summary of Contents for DR. BENDER EBM 33 F

  • Page 1 DR. BENDER GmbH Innovative Elektrowerkzeuge Manual for drilling motor EBM 33 F EBM 33 S 230 V Valid from 01.2019 Art.-Nr. 201296 Subject to alterations 201297 All rights reserved DR. BENDER GmbH • D-75382 Althengstett • Tel 07051-9291-0 • Fax 07051-9291-91 Our website address is: http://www.dr-bender.de...

  • Page 2: Conformity Declaration

    Dr. Bender GmbH Industriestrasse 22 75382 Althengstett declares for the products EBM 33 F EBM 33 S The named product conforms to the following Council Directives on approximation of laws of the EEC Member States: Council Directive for machinery (2006/42/EC)

  • Page 3: Table Of Contents

    Speed adjustment dependent on the cutting speed Warranty 10.0 General safety instructions 11.0 Spare parts list 11.1 Stone drilling machine complete EBM 33 F 11.2 Stone drilling machine complete EBM 33 S 11.3 Motor complete EBM 33 F 11.4 Motor complete EBM 33 S 11.5...

  • Page 4: Symbol- And Pictograph Description

    Warning The safety instructions set out in this operating manual must be followed at all costs. Special designs and versions may differ from the standard models in terms of their technical de- tails. If any points are unclear, we urgently recommend that you contact DR.BENDER GmbH, indi- cating the machine type and machine number.

  • Page 5: General Instructions

    General instructions Application The core drills can be used for the purposes outlined by the data on the model plate. If you are using spe- cial machines, the details in the quotation and order confirmation also apply. The core drills are supplied as standard in protection class I, only this can guarantee the full high quality production of the residual current-operated circuit-breaker or PRCD switch.

  • Page 6: Transport And Storage

    Transport and storage Transport Warning The core drills are to be checked for signs for transport damage on receipt. Any damage must be documented in writing. Storage If possible, the storage site should be dry, clean and have a constant temperature. To ensure that the film of lubricant in the bearings and sealing system is not lost, the motor shaft should be turned through several revolutions by hand after a lengthy period of storage, for example at monthly intervals.

  • Page 7: Main Dimensions And Technical Data

    Main dimensions and technical data Dimensions Technical Data Rated Voltage Current consumption Power requirement 2200 Frequency 50 – 60 Idling speed 830 / 2200 / 4600 Full speed 520 / 1400 / 2900 Output rating 1400 Torque 27 / 12 / 6 Drilling diameter 15 –...

  • Page 8: Noise Emissions And Vibrations [En 50144]

    Noise emissions and vibrations [EN 50144] Noise level Noise level Vibration dB(A) < 2,5 Commissioning Check that the mains voltage is identical with the voltage specified on the model plate. When drilling a hole ensure that you are on a secure surface. Make particularly sure the core bit is not bent during the drilling process and hold the core drilling machine as rigid as possible.

  • Page 9: Changing Gear

    Changing gear Warning Never change gear using force and only do so when the machine is slowing down or at a standstill. Move the gear switch handle by approx. 40° to the next higher or lower gear. If necessary (if it is difficult to engage the gear) turn the drive spindle briefly by hand until the gear engages easily.

  • Page 10: Safety Instructions

    Safety instructions Important Only use the core drill under supervision. Disconnect the mains plug and check that the switch has been turned off, if you intend to leave the core drill unsupervised, for attachment and disconnection work, if the voltage drops (below 200 V), for adjustments or for fitting an accessory, Switch off the machine if it stops for any reason.

  • Page 11: Servicing And Care

    Servicing and care Warning Before starting any servicing or repair work always disconnect the mains plug. After all repairs you must have the core drilling machine inspected by an elec- trician (statutory regulation pursuant to VBG4 since 1.1.1990). Daily care Ensure that no water escapes from the overflow hole.

  • Page 12: Speed Adjustment Dependent On The Cutting Speed

    Speed adjustment dependent on the cutting speed [m/s] 3820 5093 6366 7639 8913 3.Gang 4775 5730 6685 2900 3820 3.Gang 2292 2900 3820 4584 5348 3.Gang 4456 1910 2546 2900 3820 3.Gang 1637 2183 2728 3274 3820 3.Gang 1400 1910 2387 2900 3342...

  • Page 13: Warranty

    Warranty In keeping with our terms of sale, we offer a warranty for twelve months from the date of sale. This refers to the free repair of material and workmanship defects, which were verifiably caused before the sale. An original purchase document must always be submitted in case of a warranty claim. It has to contain the full address of the dealer, the date of purchase and the type designation of the product.

  • Page 14: Spare Parts List

    11.0 Spare parts list 11.1 Stone drilling machine complete EBM 33 F...
  • Page 15 Item Art. No. Description 201296 Stone drilling machine complete EBM 33 F 200941 Motor complete 302545 Gear complete 800076 Locking washer 901012 Hexagon socket head cap screw 802980 Water connection complete 1 ** 802981 Hose complete 800028 Sealing ring 800023...

  • Page 16: Stone Drilling Machine Complete Ebm 33 S

    11.2 Stone drilling machine complete EBM 33 S...
  • Page 17 Item Art. No. Description 201297 Stone drilling machine complete EBM 33 S 200943 Motor complete 302545 Gear complete 800076 Locking washer 901012 Hexagon socket head cap screw 802980 Water connection complete 1 ** 802981 Hose complete 800028 Sealing ring 800023 Ball cook complete 800020 Nipple...

  • Page 18: Motor Complete Ebm 33 F

    11.3 Motor complete EBM 33 F...
  • Page 19 Item Art. No. Description 200941 Motor complete 200397 Motor casing 401300 Magnet casing 400888 Brush bridge 800076 Locking washer 900339 Hexagon socket head cap screw 800948 Carbon brush 2 ** 900183 Spring washer 900407 Cheese-head screw 900231 Washer 900181 Spring washer 900412 Flat head screw 401101...

  • Page 20: Motor Complete Ebm 33 S

    11.4 Motor complete EBM 33 S...
  • Page 21 Item Art. No. Description 200943 Motor complete 200397 Motor casing 401300 Magnet casing 401315 Brush bridge 800076 Locking washer 900339 Hexagon socket head cap screw 800948 Carbon brush 2 ** 900183 Spring washer 900407 Cheese-head screw 900231 Washer 900181 Spring washer 900412 Flat head screw 301075...

  • Page 22: Gear Complete

    11.5 Gear complete...
  • Page 23 Item Art. No. Description 302545 Gear complete 200570 Gear casing 900020 Shaft sealing ring 1 ** 900019 Shaft sealing ring 2 ** 800001 Locking ring 1 ** 900000 Grooved ball bearing 1 ** 800559 Locking ring 1 ** 302543 Drill spindle complete 900013 Compression spring 900014...
  • Page 24 11.6 Connection cables and accessories...
  • Page 25 Item Article number Description Plugs for UK and standards for type EBM 801462 Connection cable compl. 4h 900159 Plug, 4h 801328 Connection cable, finished Plugs for UK and standards for type BBM 801460 Connection cable compl. 4h 900159 Plug, 4h 801459 Connection cable, finished Plugs for USA and Japan up to 30 amps for type BBM...
