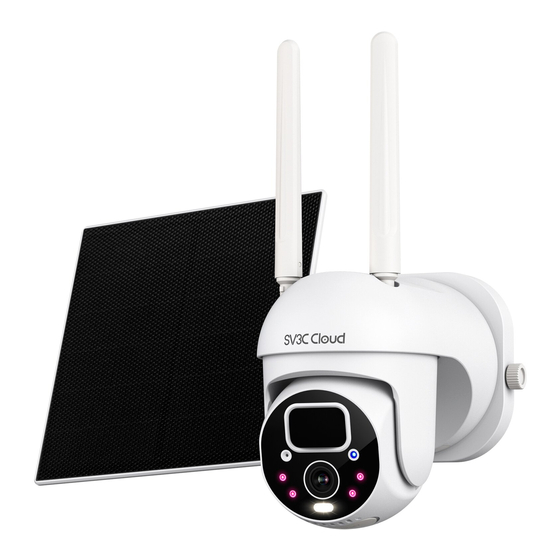

SV3C Cloud Series Quick Installation Manual
Solar wireless security camera
Hide thumbs
Also See for Cloud Series:
- Quick installation manual (28 pages) ,
- Quick installation manual (28 pages)
Subscribe to Our Youtube Channel
Related Manuals for SV3C Cloud Series
Summary of Contents for SV3C Cloud Series
- Page 1 Solar Wireless Security Camera Cloud-Series Quick Installation Guide Thank you for choosing our security camera. Please read the quick installation guide carefully before using and keep it in good conditions.
- Page 2 for Camera Solar Charger Include:...
- Page 3 Floodlight LEDS...
-
Page 9: Charge The Camera
Charge the Camera lt's recommend to fully charge the battery before mounting the camera outdoors. Charge the battery with a power adapter. Charge the battery with the Solar Panel (Not (not included) included if you only purchase the camera). Charging Indicator: RED LED: Charing Blue LED: Fully charged For better rain protection, when charging... - Page 10 Follow the below chart. Drill the holes according to the positioning sticker provided. Screw the expansion nut into the holes, then connect the bracket to the expansion nut with the screw to complete the installation.
- Page 12 Please choose a location for your solar panel that gets the most sunlight throughout the year. The solar panel needs only a few hours of direct sunlight to sufficiently power up your camera daily. The amount of energy that the solar panel can produce is affected by weather conditions, seasonal changes, geographic locations, etc.
- Page 13 Fix the base to your mounting location using the included screws. to drill a hole in the wall,then insert the anchor nail into the hole , and fix the base with screws. W a ll A n c h o r s B a s e S c r e w s W a l l...
- Page 14 Screw the locking screw cap into the base.Make sure that the universal joint is angled upward. B a s e Locking Screw Cap When adjusting the solar panel left or right,loosen the locking screw cap, turn the sleeve rod,and tighten the locking screw cap when the panelis in position.
-
Page 15: Basic Parameters
HOW TO POSITION YOUR SOLAR PANEL Find the area that gets the most direct sunlight throughout the day Angle the solar panel at local latitude+ 5 degree upward Point it south if in the northen hemisphere and north if in the southern hemisphere. - Page 17 Mirco-SD...
- Page 21 Safety Instructions of Battery Usage...
- Page 26 2.4G...
-
Page 27: Legal Declaration
Legal Declaration Disclaimer The products (including hardware, software, firmware, etc.) described in this manual (including its hardware, software, firmware, etc.) should be provided in accordance with the "status quo". As for the possibility of defects, errors, or failures, We do not provide any form of express or implied warranty, including but not limited to the merchantability or the assurance that the person is applicable to a particular purpose. - Page 28 Company name:HAIWAI CONSULTING LTD Address: 113,Gloucester Place,Fly,London, England, W1U 6JR Customer Service: Email address: info@sv3ccloud.com...
