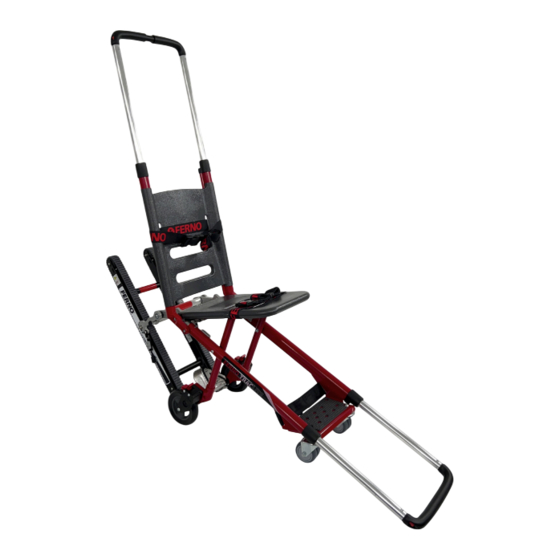

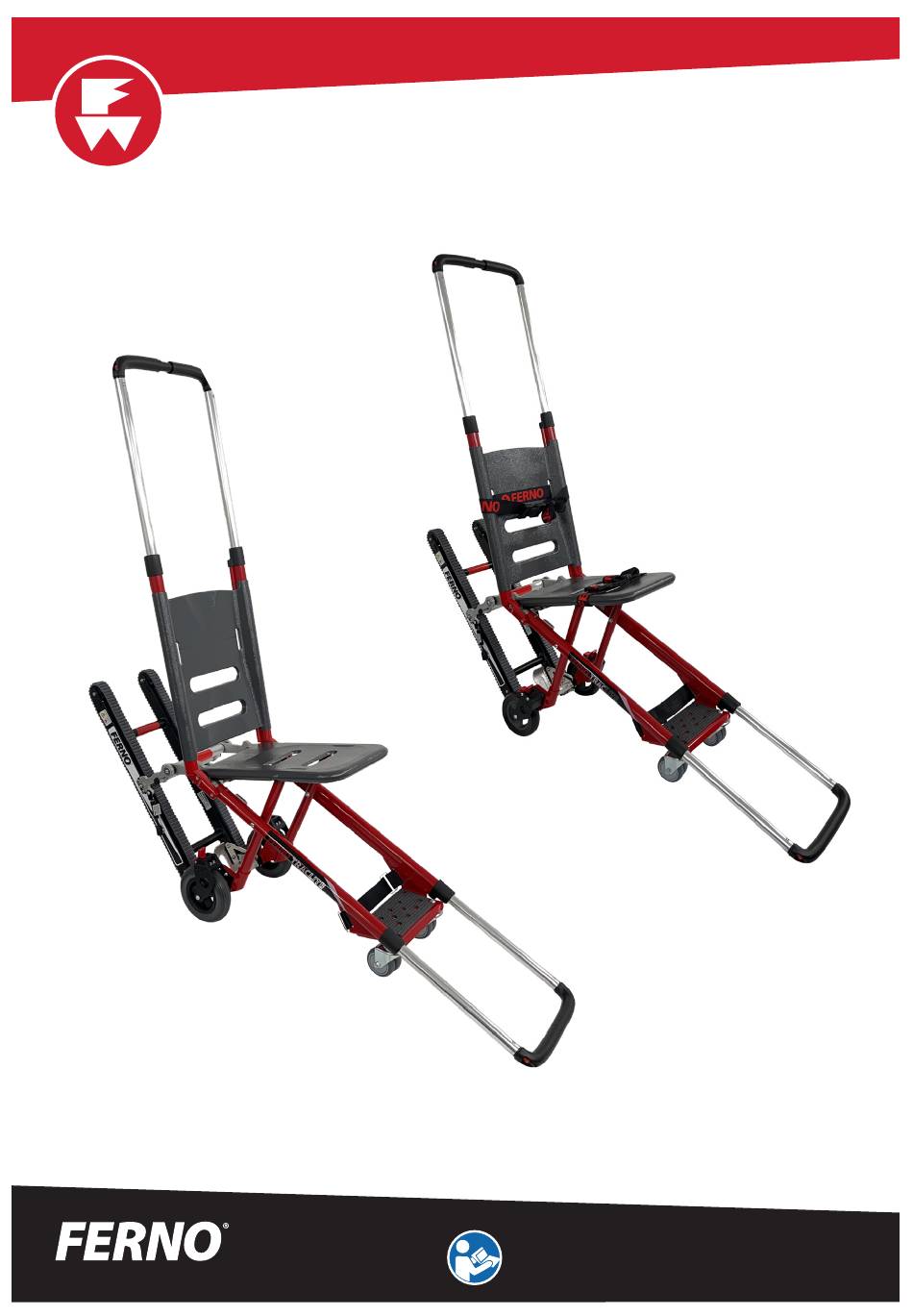

- Page 1 Ferno TRACLITE FWE531-175 / FWE531-150 Stair Chair FWE531-150 TRACLITE with 150mm wheels FWE531-175 TRACLITE with 175mm wheels Users’ Instructions Doc. ID. 00626 / MAY 2023...
-
Page 2: Safety Information
Customer Relations. Proprietary Notice 1.2 Important The information disclosed in this manual is the property of Ferno Australia Pty Ltd. Ferno Australia Pty Ltd reserves all intellectual Important notices emphasize important usage or maintenance property rights, proprietary design rights, manufacturing rights, information. -
Page 3: Operator Skills And Training
The symbols defined below are used on the chair, track and/or in this Safety labels place important information from the users’ manual users’ manual. Ferno uses symbols recognised by the International on the Chair. Read and follow label instructions. Replace worn or Standards Organization (ISO), American National Standards Institute damaged labels immediately. - Page 4 3.2 General Specifications The FWE531 Traclite Chair provides a lightweight and portable Specifications means of transporting patients. Combined with the Ferno stair track FWE531-150 Ferno Traclite Chair – 150 mm wheels (FWE531D), the chair quickly and easily converts into a track chair for FWE531-175 Ferno Traclite Chair –...
- Page 5 About the Ferno Traclite Chair BACK REST HANDLE HANDLE RELEASE PIN (2) CHAIR LOCK RELEASE LEVERS SLOT FOR TORSO RESTRAINT REMOVABLE SEAT PANELS SLOT FOR THIGH RESTRAINT HEEL BRACE RUBBERISED FOOT REST FOOT END HANDLE WHEEL BRAKE HANDLE RELEASE PIN (2)
-
Page 6: Chair Features
To engage brakes, place foot on top of brake lever and press down on the brake lever (Fig 4). To disengage brakes, place foot on top of brake lever and press down on the brake lever with a heel-to-toe motion towards the chair (Fig 4). © Ferno Australia FWE531 TRACLITE Chair... - Page 7 About the Ferno Traclite Chair 4.4 Adjusting the Back Rest Handle The back rest handle can be adjusted to three different heights from its lowest position to highest. To extend the back rest handle: 1. Depress both back rest handle release pins (Fig 6 q) and pull the handle upwards (Fig 6 w ).
- Page 8 ). As the linkage folds, the track will move towards and align with the chair’s backrest. Push the track towards the chair until the track is flush with the back of the chair and locks into stowed position. © Ferno Australia FWE531 TRACLITE Chair...
-
Page 9: Operating The Chair
Tracks injured. Use restraints to secure the patient on the chair. Attaching non Ferno items to the chair can cause injury. The Chair can be used as a Carry Chair to move a patient down the Use only Ferno approved items on the chair. - Page 10 When the chair reaches the bottom of the stairs and the rear Ferno recommends attaching the track to the chair before seating wheels are on the floor, the chair can be returned to upright the patient.
-
Page 11: Inspection And Maintenance
The table to the right represents minimum intervals for maintenance. Maintenance Intervals Ferno recommend to lubricate every 3 months and/or after a deep clean. The Chair Lock Release assembly located to the rear of the seat panel is the only lubrication point on the TRACLite Chair. - Page 12 © Ferno Australia / www.ferno,com.au / May 2023...
