RSA Lighting Combolight LV230MH Specifications

RECESSED PAR20MH
LV TRIMLESS
DESCRIPTION:
An adjustable PAR20MH fixture
suitable for multiple downlighting
applications with one point of
electrical entry. Powder coat fin-
ish on housing & lamp assembly.
Housing suitable for new con-
struction applications.
CONSTRUCTION:
All aluminum construction.
Perforated mesh plaster frame
adheres to ceiling compound for
seamless trimless mounting.
Beveled fixture opening provides
easy mudding compound applica-
tion. Can accommodate 0.50" or
0.625" drywall. Includes butterfly
brackets for black iron commer-
cial mounting.
LAMP ASSEMBLY:
3 - PAR20MH lamps mounted in
adjustable bezels. Each lamp can
accept up to two optical acces-
sories. 380º x 45º locking adjust-
ment. Fixture provides 45º visual
cut-off. Lamp holders retract for
added internal adjustment.
SYSTEM PROTECTION:
Thermal protection provided to
guard against overheating, and
misuse of insulation over and
around fixture. Vent holes in hous-
ing provide cooler operation
ELECTRICAL:
Integral Aromat® electronic
metal halide ballsts. Junction box
is UL listed for through branch
wiring, (access above ceiling not
required) for 8 #12, 90°C supply
conductors or 60°C for end of run.
Ballasts and electrical accessible
through ceiling opening via
access door on housing sidewall.
ALL RSA COMBOLIGHT PRODUCTS
ARE MADE IN THE U.S.A.
Cat. # / Description
LV230MH : 3 Light Recessed Next Generation Trimless
Combo Fixture
PAR20MH
SPECIFY -
A

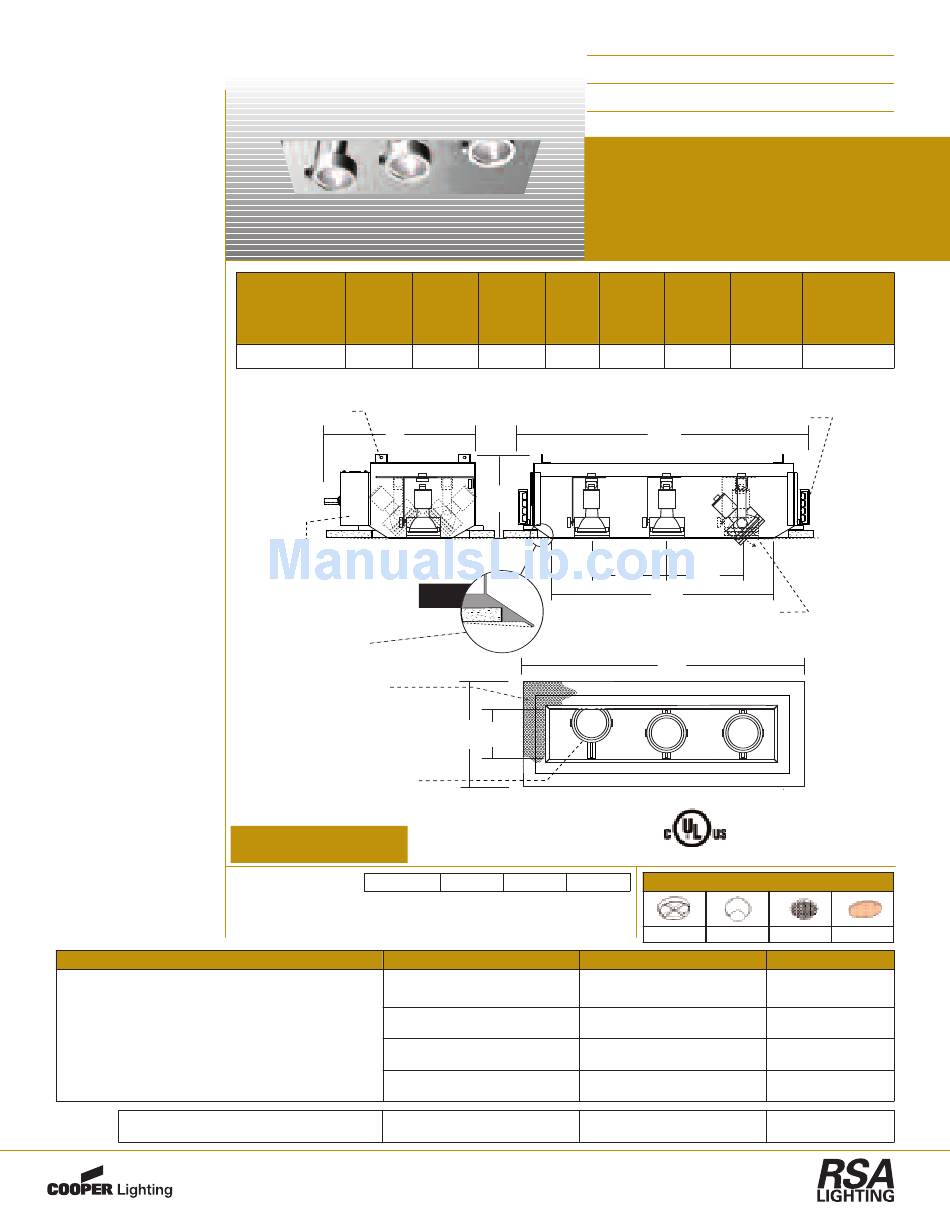

Dimensions
Housing
Length
26.75"
Tabs for aircraft
cable suspension
above ceiling
Side mounted compartment
houses wiring, Aromat®
electronic ballasts and
thermal protector.
Accessible through
fixture opening.
Ceiling mudding
compound is applied
directly to the edge
of the aperture.
Perforated mesh plaster
frame adheres to ceiling
compound for seamless
trimless mounting.
Beveled housing interior and
standard retractable yokes allow
lamp holders to slide within the
housing for added adjustability.
Includes Aromat® Electronic
Metal Halide Ballasts
LV230MH
ORDERING EXAMPLE:
= Three Light Trimless Recessed PAR20MH - White Interior - 39 watt lamps -
120 Volt
Interior Finish
BK - Black
WH - White
S - Silver
PT - Custom (Specify)
LV230MH
___
Specifications and Dimensions subject to change without notice.
RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349-3031
B C D
Housing Aperture Aperture
Height Length Width
7.09" 21.00" 5.30"
G
B
Trimless
Detail
E D
WH 39
Catalog #
Type
Project
COMBOLIGHT
THREE (3) Light Recessed
Next Generation Trimless
Multi-Lamp Luminaire
E F G
Plaster Frame Plaster Frame Above Ceiling
Width Length Width
11.05" 26.75" 13.25"
Butterfly Brackets
for Black Iron mounting
A
6.75" 6.75"
C
380º x 45º locking
angular adjustment
45º visual cut-off
F
120
Optional Accessories - Details on Other Side
Baffle Snoots
Lamp Wattage
39 - 39 Watt PAR20MH
39
LV Series
®
PAR20 Metal Halide
Ceiling
Cut-Out
24.20" x 8.50"
Other Adders
CC - Two Circuit
CP - Chicago Plenum
Louvers Lenses
Voltage
120 - 120 Volt
(Standard)
277 - 277 Volt
