Compatibility
This engine will operate on any traditional
O-72 Gauge track system, including
M.T.H.'s RealTrax
traditional tubular track. It is also compatible
with most standard AC transformers. (See
page 23 for a complete list of compatible
transformers and wiring instructions.)
PLEASE READ BEFORE USE AND SAVE

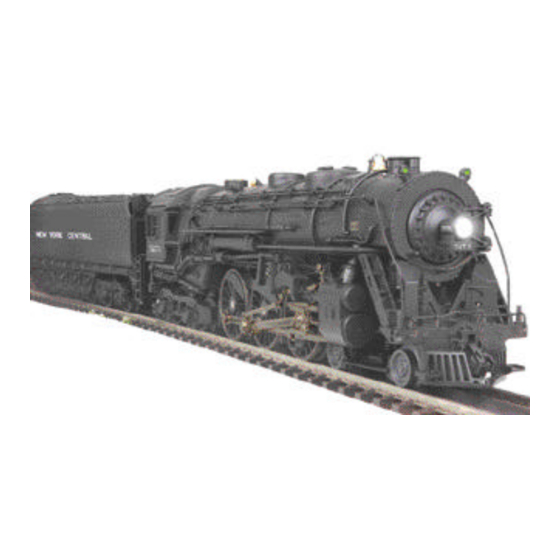

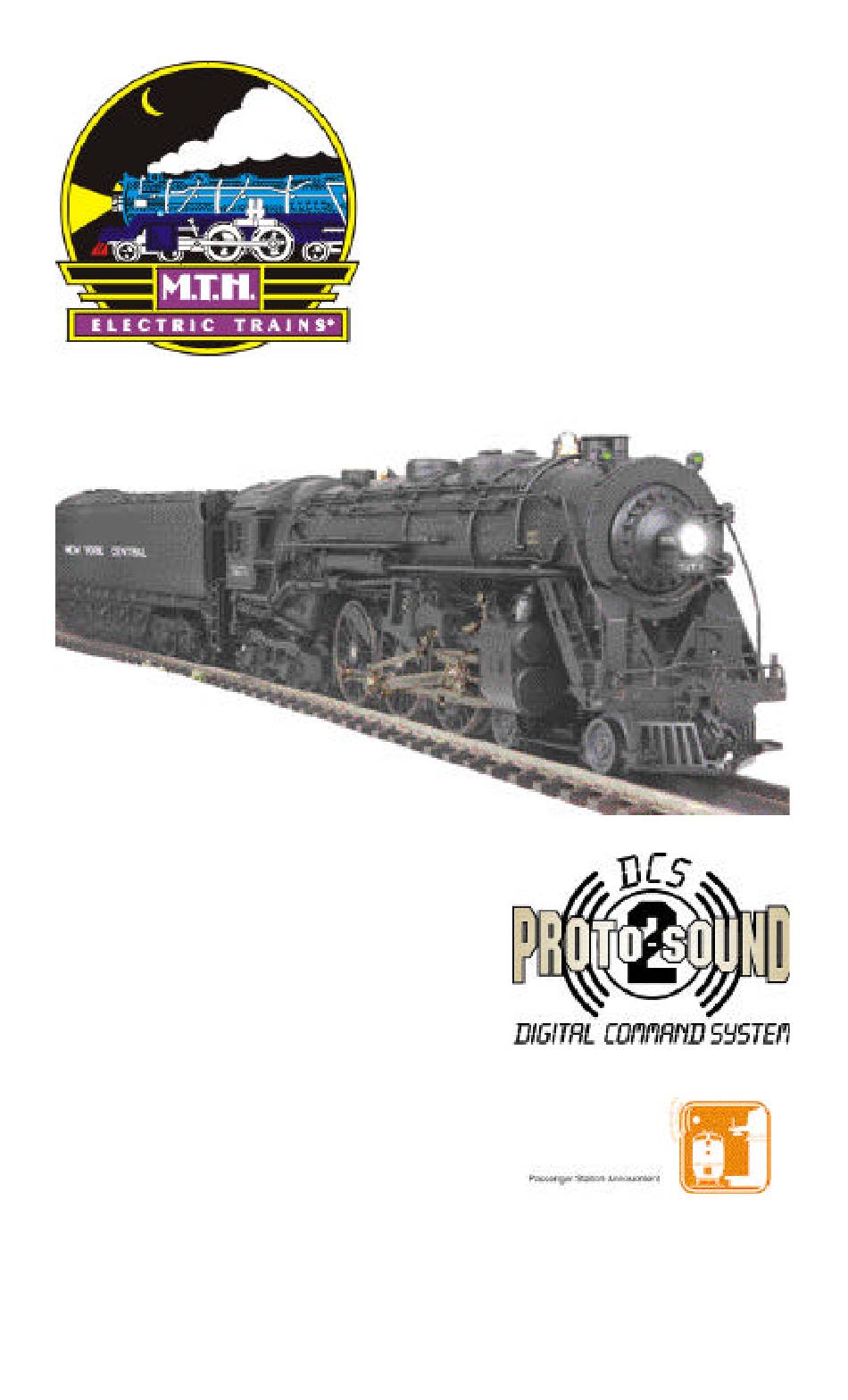

Premier J-1e
Steam
Locomotive
OPERATOR'S MANUAL
®
™
or ScaleTrax
or
Advertisement
Table of Contents
Related Manuals for MTHTrains Premier J-1e
Summary of Contents for MTHTrains Premier J-1e
- Page 1 Premier J-1e Steam Locomotive OPERATOR’S MANUAL Compatibility This engine will operate on any traditional O-72 Gauge track system, including ® ™ M.T.H.’s RealTrax or ScaleTrax traditional tubular track. It is also compatible with most standard AC transformers. (See page 23 for a complete list of compatible transformers and wiring instructions.)
-
Page 2: Table Of Contents
Table of Contents Set Up Checklist....................3 Lubrication.....................3 Priming The Smoke Unit............... 3 Checking The Battery................4 Placing The Engine On The Track............4 Basic Operation....................5 Activating Features................5 Proto-Sound 2.0 Operating Instructions............7 Activating Proto-Sound 2.0 Conventional Mode Features....7 Passenger Station Announcements (PSA)..........8 Proto-Coupler®... -
Page 3: Set Up Checklist
(see Fig. 2). Failure either to add fluid to the unit or to turn it off may damage the smoke unit heating element Figure 2: Smoke Unit Switch Location and/or wicking material. Premier J-1e Steam Locomotive... -
Page 4: Checking The Battery
Placing The Engine On The Track Place the engine on the track, then insert the reverse unit plug that extends out of the tender into the receptacle at the back of the boiler cab (Figure 3. WARNING: DO NOT CONNECT THIS ENGINE TO A TENDER FROM ANOTHER ENGINE; IT MAY CAUSE SERIOUS DAMAGE. -
Page 5: Basic Operation
Neutral cycle neutral-forward-neutral-reverse with Reverse Forward each press and release of the direction button. The engine is programmed to Neutral restart in neutral each time the track voltage is turned off for 25 seconds or more. Premier J-1e Steam Locomotive... - Page 6 Manual Volume Control To adjust the volume of all sounds made by this engine, turn the master volume control knob located under the tender clockwise to increase the volume and counter-clockwise to decrease the volume. Proto-Sound 2.0 Volume Adjustment Knob Figure 4: Manual Volume Adjustment Premier J-1eSteam Locomotive...
-
Page 7: Proto-Sound 2.0 Operating Instructions
Fire the Front Coupler 1 Bell, 4 Horns Speed Control On/Off 1 Horn, 2 Bells (from Neutral only) Lock into a Direction 1 Horn, 3 Bells Reset to Factory Defaults 1 Horn, 5 Bells (from Neutral only) Premier J-1e Steam Locomotive... -
Page 8: Passenger Station Announcements (Psa)
Passenger Station Announcements (PSA) Your engine is equipped with a sound package of passenger station announcements that you can play when you pull into a station. Each sequence described below will play as long as it is left on, randomly generating sounds, but be sure to allow approximately 30 seconds between the button pushes described below to allow the PSA sufficient time to run through each sequence. -
Page 9: Proto-Coupler® Operation
Horn button, allowing approximately ½ second to lapse between each quick button press. The sound of the liftbar and air line depletion will play, and the knuckle will be released. Fire Horn Horn Horn Rear Bell Coupler Premier J-1e Steam Locomotive... -
Page 10: Speed Control
Front Coupler: To fire the front coupler (if your engine has one), quickly tap the Bell button once followed by four quick taps of the Horn button, allowing approximately ½ second to lapse between each quick button press. The sound of the liftbar and air line depletion will play, and the knuckle will be released. -
Page 11: Locking Locomotive Into A Direction
• Cab Chatter plays at random intervals when the engine idles in neutral. • Engine Start-up and Shut-down sounds play when the engine is initially powered on or is powered off for five seconds or more. Premier J-1e Steam Locomotive... -
Page 12: Maintenance
Maintenance Lubricating and Greasing Instructions The engine should be well oiled and greased in order to run properly. You should regularly lubricate all side rods, linkage components and pickup rollers to prevent them from squeaking. Use light household oil and follow the lubrication points marked “L”... -
Page 13: Cleaning The Wheels, Tires And Track
Thereafter, keep an eye on the track and clean it when it gets dirty to ensure good electrical contact and to lengthen the life of the tires. Premier J-1e Steam Locomotive... -
Page 14: Traction Tire Replacement Instructions
Traction Tire Replacement Instructions Your locomotive is equipped with two neoprene rubber traction tires on the rear set of flanged drivers. While these tires are extremely durable, you may need to replace them at some point. 1. Remove the side rods from the wheels in order to slip the new tire over the grooved drive wheel. -
Page 15: Light Bulb Replacement Instructions
4. Remove the cab interior light by pulling gently on the wire until the bulb comes free of its housing. Push the replacement bulb into position. 5. Reassemble in reverse order, being careful not to pinch any wires. Premier J-1e Steam Locomotive... -
Page 16: Self Charging Battery Back-Up
Tender Light: 1. Remove the body from the chassis by removing the 4 screws shown in Fig. 10. 2. Unplug the wire from the connector. 3. Unscrew the bracket that houses the light bulb from inside the tender. 4. Gently pull the bulb to remove it and push the replacement bulb into place. 5. - Page 17 Do NOT use a 6-cell 7.2v battery. Unhook Wires, Remove and Replace Battery AC Battery Recharging Jack Figure 115: Replacing The Battery And Locating The Battery Recharging Jack Premier J-1e Steam Locomotive...
-
Page 18: Protosmoke® Unit Operation
ProtoSmoke® Unit Operation This Premier steam locomotive contains a self-powered smoke unit that outputs smoke through the smokestack on the roof of the engine. The smoke unit is essentially a small heating element and wick that soaks up and then heats a mineral oil-based fluid that emits a harmless smoke. - Page 19 Inspection Cover Replacement parts and Screws wick replacement Figure 15 instructions are available directly from the M.T.H. Parts Department phone: 410-381-2580; e-mail: parts@mth-railking.commail: 7020 Columbia Gateway Drive, Columbia MD 21046-1532 Premier J-1e Steam Locomotive...
-
Page 20: Troubleshooting Proto-Sound® 2.0 Problems
Troubleshooting Proto-Sound® 2.0 Problems Although Proto-Sound 2.0 has been designed and engineered for ease of use, you may have some questions during initial operation. The following table should answer most questions. If your problem cannot be resolved with this table, contact M.T.H. for assistance (telephone: 410-381-2580;... - Page 21 Because there are a limited number of sound clips available in each PSA sequence, it is probable that some of these sound clips will be repeated from time to time. Premier J-1e Steam Locomotive...
- Page 22 Remedy Once in PSA, the engine doesn’t go So that PSA effects can be as realistic into reverse. as possible, Proto-Sound 2.0 disables the reversing unit whenever PSA is enabled. This way the engine remains still at its stop as the operator cycles through the PSA sequences.
-
Page 23: Transformer Compatibility And Wiring Chart
Standard Lionel SW Unknown 130-Watt Standard Lionel TW 8-18v 175-Watt Standard Lionel ZW A,B,C or D 8-20v 275-Watt Standard Lionel Post-War A,B,C or D Common 0-20v 135/190 Watt Electronic Celebration Series ZW * Conventional Mode Only Premier J-1e Steam Locomotive... -
Page 24: Additional Features Accessible With The Dcs System
Additional Features Accessible With The DCS Remote Control System (Additional equipment required) While conventional mode operation of a Proto-Sound 2.0 engine yields wonderfully realistic sound and several train control features, command mode operation allows the user to access a world of command functions never before accessible to O Gauge railroaders. -
Page 25: Service & Warranty Information
Service & Warranty Information How to Get Service Under the Terms of the Limited One-Year Warranty For warranty repair, follow the instructions below to obtain warranty service. First, e-mail, write, call or fax an Authorized M.T.H. Service Center in your area or M.T.H. Electric Trains to obtain Repair Authorization.
