Model
57126
For Serial No. 09L1000 and Higher

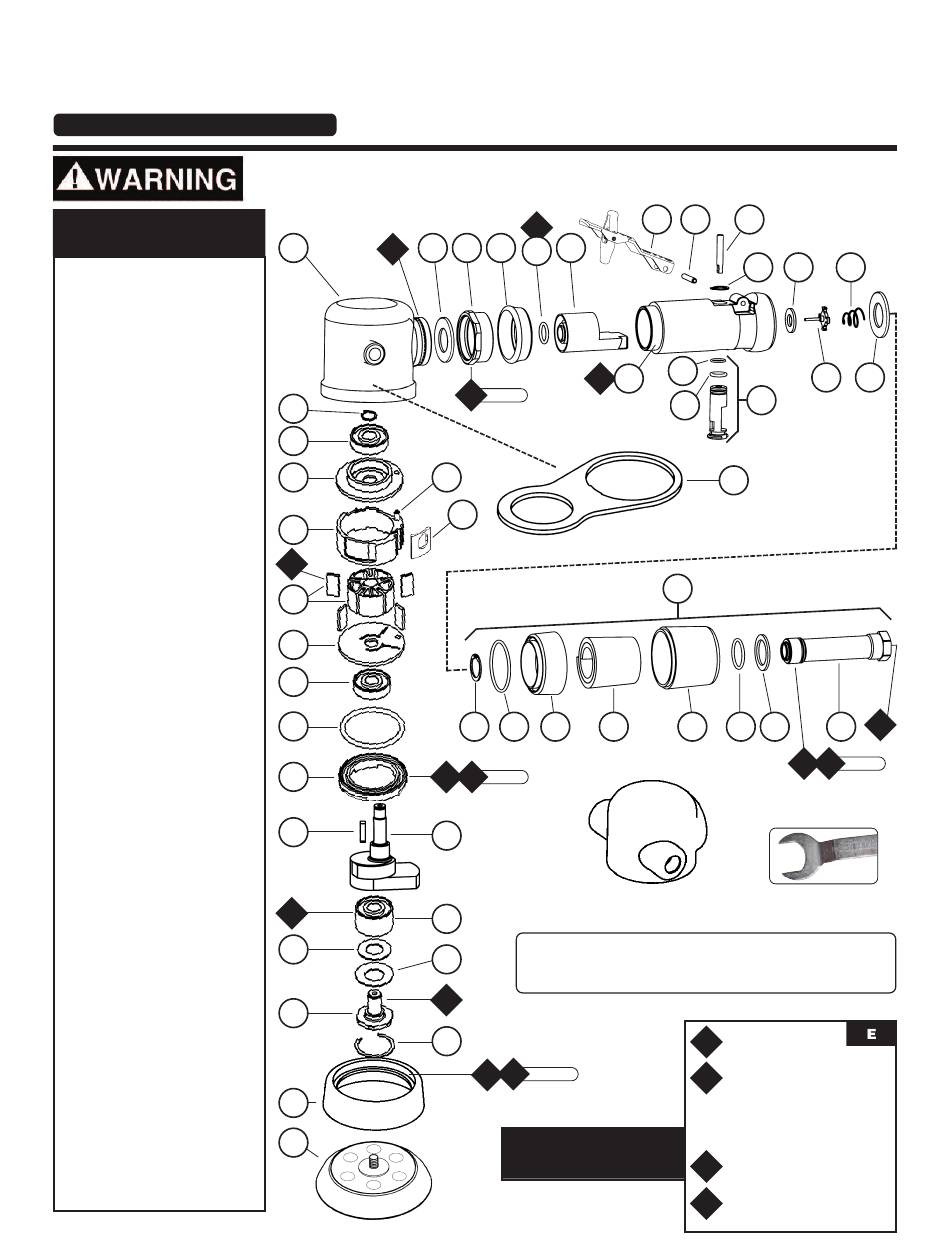

Index Key
No. Part #
Description
1 56143 3" Pad
2 51361 Shroud
3 95630 Snap Ring
4 57069 Balancer Shaft
5 95628 Bearing Shield
6 56053 Bearing Seal
7 56052 Bearing
8 57422 Motor Shaft Balancer
9 56047 Key
10 56046 Lock Ring
11 50659 O-Ring
12 57088 Bearing
13 51366 Bearing Plate
14 57113 Rotor/Blade (5/pkg.) Set
15 58358 Cylinder Assembly
(Includes 98462 Pin)
16 98462 Pin
16a 58367 Seal
17 51367 Bearing Plate
18 01206 Bearing
19 95626 Retaining Ring
20 97166 Hang Plate
21 02099 Housing
22 01548 Gasket
23 01461 Lock Nut
24 01547 Collar
25 95523 O-Ring
26 01470 Insert Assembly
27 57319 Housing
28 01950 Safety Lock Lever
29 12132 Pin
30 01449 Valve Stem
31 95558 Retaining Ring
32 95730 O-Ring
33 01024 O-Ring
34 01469 Speed Regulator Assy.
35 01464 Seal
36 01472 Tip Valve
37 01468 Spring
38 01543 Air Control Ring
39 95711 Retaining Ring
40 95438 O-Ring
41 94521 Muffler Base
42 94528 Felt Muffler
43 94522 Muffler Cap
44 95375 O-Ring
45 94526 Spacer
46 94523 Inlet Adapter
47 94519 Muffler Assembly
Always operate, inspect and maintain this tool in accordance with the Safety Code for portable air tools
(ANSI B186.1) and any other applicable safety codes and regulations. Please refer to Dynabrade's
Warning/Safety Operating Instructions for more complete safety information.
A
21
22
10
19
18
17
15
O
1
14
13
12
11
10
9
A
2
6
4
2
1

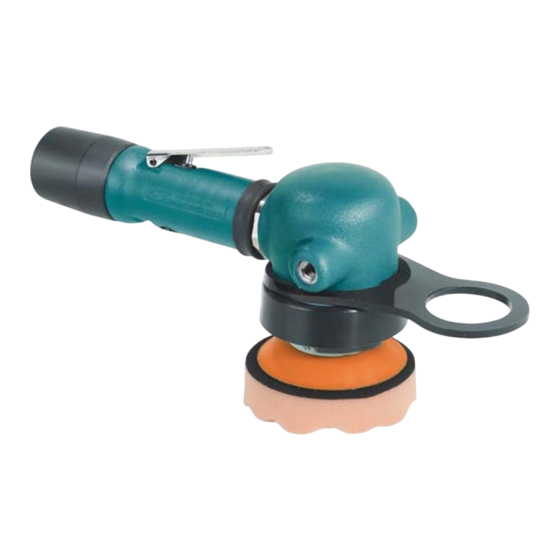

3" Dynabuffer
G
1
23
24
26
25
A
10
T
45 N•m
16
16a
39
40
41
42
A
T
34 N•m
8
8
51360 – Overmold Grip
7
Tool Intent: Buffers are ideal for buffing/polishing surfaces.
They are designed to be used with appropriate backup pads,
buffing pads and buffing compounds.
5
A
2
3
A
T
11.3 N•m
6
Always follow adhesive
manufacturers cleaning and
priming recommendations.
Supersedes PD09.60R
Air Motor and Machine Parts
28
29
30
31
35
32
27
34
33
20
47
43
44
45
A
59293 – 26 mm open-end
O
Oil: O
= Air Lube
1
A
Adhesive: A
2
A
6
A
8
A
10
T
Torque: N•m x 8.85 = In. - lbs.
G
Grease: Lubriplate 630 AA
PD09-60R
July, 2018
37
36
38
O
46
1
T
23 N•m
8
K Y
= Loctite
#263 / #271
= Loctite #380
= Loctite #567
= Loctite #243
