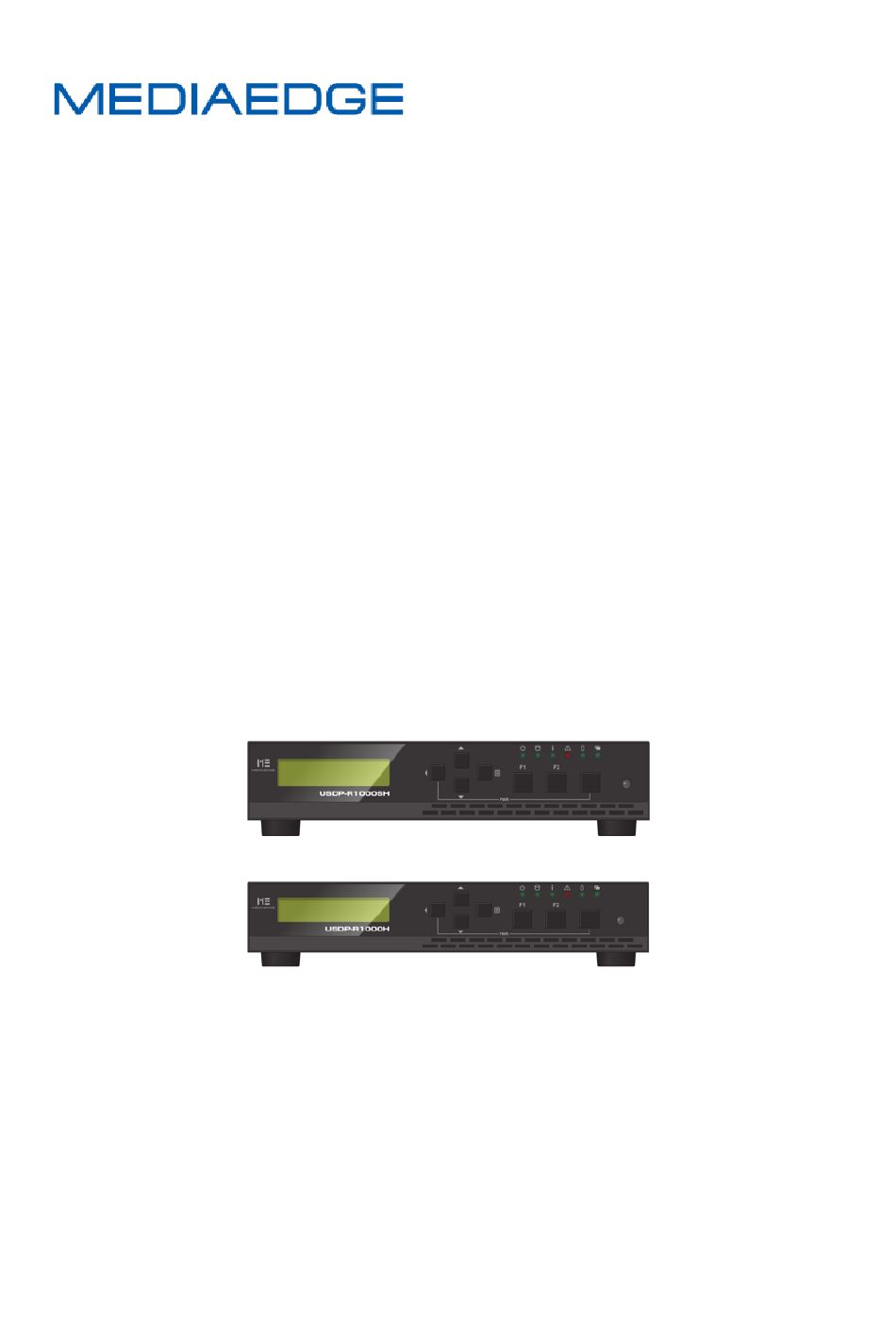

- Page 1 Signage Player corresponding to 4K USDP-R1000SH/H Simple Description June 16, 2021 The 1.0th edition Copyright c 2021 MEDIAEDGE Corporation...
- Page 2 I-1. Before use Thank you for purchasing USDP-R1000SH /USDP-R 1000H. The matter we would like you to confirm before use of apparatus or a setup is explained. ■ I-1-1. The check of the contents of a package Please check that the following accessories are contained into the package of USDP- R1000.
- Page 3 ■ I-1-3. The acquisition place of data required for a setup of this product Please confirm the latest information, manual data, etc. in our Web page before using it. https://www.mediaedge.co.jp/ About the newest operation manual, it can obtain from the download page of the following URL.
- Page 4 I-2. The outline of USDP-1000 ■ I-2-1. Outline These products are a contents file of storage with a built-in main part, or USB storage, a server, and 4K UHD player that reproduces the stream (H. data encoded by 265, H.264, and MPEG-2) which a live encoder distributes.
- Page 5 ■ I-2-2. The USDP-R1000SH /USDP-R1000H front (1) Power Lamp…………………… Display the status associated with power operations such as startup and shutdown. Putting-out-lights… Power supply is not on. ² Green blink (every 0.5 second) ² It is under end or during starting.
- Page 6 Lighting……………External storage is mounted in the state which can be ² written in. (4) Unusual lamp……………… Display the error condition resulting from hardware. Putting-out-lights…It is operating normalcy. ² Blink……………… The fan's abnormalities were detected. ² (5) Remote control lamp………The light will be switched on if a remote control is recognized.
- Page 7 ■ I-2-3. The back of USDP-R1000SH /USDP-R1000H main part USDP-R1000SH USDP-R1000H (1) Power connector…………… Connect the AC/DC adaptor attachment. ※ Please do not use it by any means other than an attached AC/DC adaptor. (2) COM…………………………… Use it for serial connection.
- Page 8 ※ Even if it connects USB storage, don't recognize as a contents drive. ■ I-2-4. Connection of apparatus Please connect USDP-R1000 and peripheral equipment to reference for the following examples of connection (in the case of USDP-R 1000H). When sound is taken out from HDMI When sound is taken out from an analog voice terminal ●...
- Page 9 ● Press the (POWER) key of the remote control. ● Press the [PWR] key, pressing the left / the [CANCEL] key of a front panel. If this machine carries out the completion of starting, a power USDP-R1000SH STOP indicator will light up green. Moreover, a liquid crystal display becomes a status display like the right.
- Page 10 / the [CANCEL] key. I-3. Initial setting ■ I-3-1. Network setup I-3-1-1. A setup by a front panel ● If USDP-R1000 starts, it will become a status display USDP-R1000SH STOP like the right. ● [The right/MENU/ENTER] A key is pressed and change MENU to a setting menu.
- Page 11 ● Set up an IP address. IP address A digit number is changed by [the left/CANCEL], and 192.168.000.020 the right / the [MENU/ENTER] key, and a [top] changes a number by a [bottom] key. Pressing the right / the [MENU/ENTER] key by the 12th figure, an IP address is the completion of a setting.
- Page 12 ● USDP-R1000 can be connected with PC in the same network, and it can detect using MEDIAEDGE Finder installed in PC. If it clicks [PRESENTATION URL] of detected USDP-R1000, a browser will rise. ※ MEDIAEDGE Finder is downloadable from our homepage. HDMA-4100, MEDIAEDGE-STB 4H, MEDIAEDGE LEB Pro2/Pro/Express/Recorder, and MEDIAEDGE Decoder other than USDP-R1000 are detected.
- Page 13 LAN port. ■ I-3-2. Display setup I-3-2-1. A setup by a front panel ● If USDP-R1000 starts, it will become a status display USDP-R1000SH STOP like the right. ● [Right/MENU/ENTER] A key is pressed and change to MENU 1.VIDEO...
- Page 14 ● Press the left / the [CANCEL] key until a right screen Save config ? is displayed. [Yes ● A setup is saved, if [Yes] is chosen and the right / the Saving... [MENU/ENTER] key is pressed. Reboot automatically after that. I-3-2-2.
- Page 15 Since the following screens are displayed, please enter a user name and a password. ※ At the time of factory shipments, in a setup, a user name is admin and a password is nothing (not set up). The next Web console screen is displayed. A display language can be chosen from Japanese/English from [Language] of the left-hand side menu lower part.
