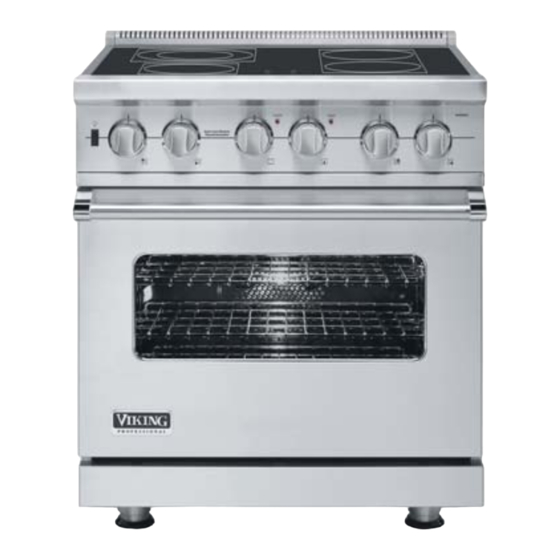

30 inch electric range
Hide thumbs Also See for VESC530:
Table of Contents

Advertisement

Quick Links

Download this manual
®

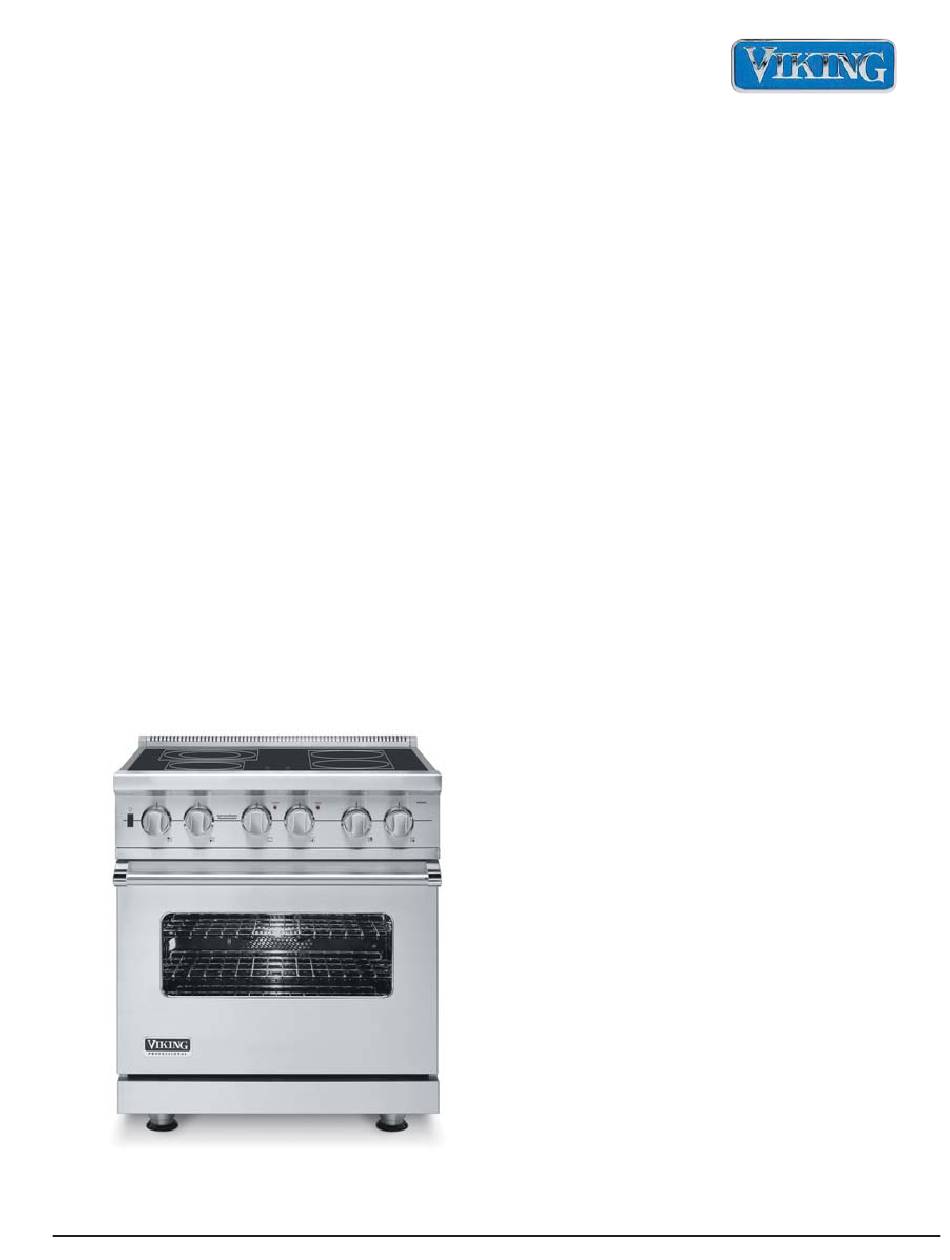

Service
Preferred Service
Manual
This manual is to be used by qualified appliance technicians only. Viking
does not assume any responsibility for property damage or personal
injury for improper service procedures done by an unqualified person.
30 Inch
This Base Manual covers general and
specific information including, but not
limited to the following models:
Electric Range
VESC530
SMC-0009
February 2009

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VESC530 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Viking VESC530

Summary of Contents for Viking VESC530

  • Page 1 ® Service Preferred Service Manual This manual is to be used by qualified appliance technicians only. Viking does not assume any responsibility for property damage or personal injury for improper service procedures done by an unqualified person. 30 Inch This Base Manual covers general and specific information including, but not...

  • Page 2: Important Information

    All safety messages will be preceded by the safety alert symbol and the word “DANGER”, “WARNING”, or “CAUTION”. These words mean: VIKING will not be responsible for any injury or property damage from improper service procedures. IMMEDIATE HAZARDS WHICH WILL RESULT IN If performing service on your own product, you must SEVERE PERSONAL INJURY OR DEATH.
  • Page 3 Electric Freestanding electric ranges and all of their component parts, except as detailed below*, are warranted to be free from defective materials or workmanship in normal household use for a period of twelve (12) months from the date of original retail purchase. Viking Range Corporation, warrantor, agrees to repair or replace, at its option, any part which fails or is found to be defective during the warranty period.

  • Page 4: Table Of Contents

    Outer Door Panel Assembly Removal ....29 Outer Door Glass Removal ........29 Inner Door Glass Removal ........30 Door Hinge Removal ..........31 Door Logo Removal ..........31 Temperature Sensor (RTD) Removal..... 31 Bake Element Removal ......... 32 ©2009 Viking Preferred Service...

  • Page 5: General Information

    (67.2 cm) (20.3 cm) 8-1/8” (20.6 cm) 35-7/8” (91.1 cm) min. 37” (94 cm) max. 19-3/8” 25-3/4” (49.2 cm) (65.4 cm) 45-1/8” (114.6 cm) Electric 30" Range Note: Unit shown with standard 8" (20.3 cm) backguard. ©2009 Viking Preferred Service...

  • Page 6: Specifi Cations

    • Within 6" (15.2 cm) side clearance, wall cabinets no deeper than 13" (33.0 cm) must be minimum 18" (45.7 cm) above cooking surface. • Wall cabinets directly above product must be a minimum of 36" (91.4 cm) for open top burners above cooking surface. ©2009 Viking Preferred Service...

  • Page 7: Warnings

    Care should be taken not to rub, damage, or move the gasket. DO NOT use oven cleaners of any kind in or around any part of the self-clean oven. ©2009 Viking Preferred Service...

  • Page 8: Important Safety Notice And Warning

    After oven is turned off, DO NOT touch the oven vent or surrounding areas until they have had suffi cient time to cool. ©2009 Viking Preferred Service...

  • Page 9: Electrical Requirements

    This could cause them to discolor due to DO NOT store items of interest to children over the high temperature required for self-cleaning. the unit. Children climbing to reach items could be seriously injured. ©2009 Viking Preferred Service...

  • Page 10: Before Using Range

    12. Two 7" 1,800-watt elements regulations in conjunction with specifi c instructions 13. Identifi cation plate found on www.star-k.org 14. Two standard heavy-duty tilt-proof racks/One heavy- duty TruGlide rack. Six rack positions 15. Broiler pan (located inside oven) ©2009 Viking Preferred Service...

  • Page 11: Troubleshooting

    1 second ON, 1 second OFF 1 second ON, 1 second OFF (Oven Probe) Model 1 second ON, 1 second OFF, 1 second ON, 4 seconds OFF Cooling Fan 3 fl ashes High Limit 4 fl ashes Oven Control Board Connections ©2009 Viking Preferred Service...

  • Page 12: Oven Control Board Schematic

    Door Lock Sensor Motor Convection Oven Temp Bake Light Selector Cycle Selector Probe Convection Fan Power Outer Convection Broil Fan Direction Convection Inner Fan Speed Broil Cool Fan Speed Outer Bake Inner Bake Door Light Door Lock ©2009 Viking Preferred Service...

  • Page 13: Oven Strip Circuits And Schematics

    LINE RELAY BREAK RELAY GREY 33.0 INNER BROIL ELEMENT LINE BREAK RELAY RELAY PURPLE 29.3 OUTER BAKE ELEMENT LINE RELAY BREAK RELAY BLUE WHT YEL 38.0 INNER BAKE ELEMENT LINE RELAY BREAK RELAY WHT YEL 39.0 ©2009 Viking Preferred Service...
  • Page 14 POWER RELAY 2.0 ufd 2.0 ufd CONVECTION BLUE BROWN DIRECTION RELAY GREY ORANGE CONVECTION GREEN SPEED RELAY BOARD CIRCUIT COOLING BLOWER MOTOR WHITE WHITE 18.2 WHITE BOARD CIRCUIT DOOR LATCH MOTOR WHITE BLACK BOARD 12.1 k CIRCUIT ©2009 Viking Preferred Service...

  • Page 15: Rangetop Strip Circuits And Schematics

    LIMIT ELEMENT SWITCH SWITCH SWITCH RIGHT REAR BRIDGE ELEMENT CIRCUIT VOILET GREY H1(b) 70.4 THERMAL SELECTOR SELECTOR LIMIT ELEMENT SWITCH SWITCH SWITCH RIGHT FRONT ELEMENT CIRCUIT WHT/RED 30.4 THERMAL SELECTOR SELECTOR LIMIT ELEMENT SWITCH SWITCH SWITCH ©2009 Viking Preferred Service...
  • Page 16 LEFT REAR HOT SURFACE LIGHT CIRCUIT BLUE HOT SURFACE THERMAL LIGHT LIMIT SWITCH RIGHT REAR HOT SURFACE LIGHT CIRCUIT BLUE HOT SURFACE THERMAL LIGHT LIMIT SWITCH RIGHT FRONT HOT SURFACE LIGHT CIRCUIT HOT SURFACE THERMAL LIGHT LIMIT SWITCH ©2009 Viking Preferred Service...
  • Page 17 Troubleshooting ©2009 Viking Preferred Service...

  • Page 18: Oven Components

    Open or out of calibration thermostat Replace thermostat Open relay K12, K13, K14, K5, K6, Replace control board or K7 Open control board Replace control board Defective oven wiring (shorted, Repair or replace defective wiring open, or burned) ©2009 Viking Preferred Service...
  • Page 19 Repair or replace defective wiring open, or burned) Oven lights inoperable (bulbs OK) Open control board Replace control board Open relay K4 Replace control board Defective oven wiring (shorted, Repair or replace defective wiring open, or burned) ©2009 Viking Preferred Service...

  • Page 20: Rtd Characteristics

    Range is not connected to power Check power source RTD Characteristics RTD (Resistive Thermal Device) Temperature (°F) Resistance (Approximate) 1038 1090 1143 1350 1553 1654 1754 1852 1950 2047 2153 2238 2332 2425 2518 2609 2700 ©2009 Viking Preferred Service...

  • Page 21: Rangetop Components

    220 VAC present on H1 to H2? selector switch. Disconnect power to the range. Defective wiring Repair or replace Disconnect and check resistance (Shorted, open, defective wiring. between YEL and WHT/RED wires. or burnt wiring)? 30.4 Ohms present? Replace the element. ©2009 Viking Preferred Service...

  • Page 22: Left Rear Inner Element Does Not Work

    220 VAC present on H1b to H2? selector switch. Disconnect power to the range. Defective wiring Repair or replace Disconnect and check resistance (Shorted, open, defective wiring. between VIO and GRY wires. or burnt wiring)? 43.1 Ohms present? Replace the element. ©2009 Viking Preferred Service...

  • Page 23: Right Rear Element Does Not Work

    220 VAC present on H1b to H2? selector switch. Disconnect power to the range. Defective wiring Repair or replace Disconnect and check resistance (Shorted, open, defective wiring. between PUR and GRY wires. or burnt wiring)? 70.4 Ohms present? Replace the element. ©2009 Viking Preferred Service...

  • Page 24: Surface Power On Light Does Not Work

    220 VAC present between surface light. ORG or BLU wire to BLK wire at hot surface light? Repair or Check continuity on element between replace ORG or BLU to RED. defective wiring. Replace the defective element. ©2009 Viking Preferred Service...

  • Page 25: Component Characteristics

    L1 to H1, L2 to H2, P to L1 Continuity (HI position) 0.0 Ω (OFF position) Rear Selector Switches 240 VAC L1 to H1a, L1 to H1b, L2 to H2, P to L1 Continuity (HI position) ©2009 Viking Preferred Service...

  • Page 26: Selector And Thermostat Characteristics

    0.70 VDC 9.22 kΩ 4.30 VDC Resistance checks are made on the thermostat wire harness with the thermostat wire harness disconnected from the board at location P15. The harness is connected to P15 for voltage checks. ©2009 Viking Preferred Service...

  • Page 27: Disassembly

    3. Remove ten screws and control board from lower mounting plate. Note: During installation, make sure the tabs on the control panel are aligned with the slots on the range. 4. Reverse procedure for installation. 4. Reverse procedure for installation. ©2009 Viking Preferred Service...

  • Page 28: Motor Capacitor Removal

    3. Close door until pins stop door. 2. Remove the door gasket from two holes in the bottom of the door liner. 3. Reverse procedure for installation. ©2009 Viking Preferred Service...

  • Page 29: Door Handle Removal

    1. Place the door handle side down on a protected surface. 2. Remove seven screws that attach the outer door panel assembly to the inner door panel assembly. 3. Remove door skin insulation from door skin. ©2009 Viking Preferred Service...

  • Page 30: Inner Door Glass Removal

    4. Remove black fi berglass rope from inner door panel. 8. Reverse procedure for installation. Note: Use care with insulation, make sure to replace any damaged or missing insulation. Keep vent on inner door panel clear of insulation. 5. Reverse procedure for installation. ©2009 Viking Preferred Service...

  • Page 31: Door Hinge Removal

    Outer Door Panel Assembly Removed into place. 1. Remove two pal nuts and logo from outer door panel. 2. Reverse procedure for installation. 5. Install two screws that attach the sensor to the back of the oven liner. ©2009 Viking Preferred Service...

  • Page 32: Bake Element Removal

    1. Remove four screws and rack support from each side of oven cavity. 4. Remove bake element insulation from range. Note: Use care with insulation, make sure to replace any damaged or missing insulation. 2. Reverse procedure for installation. ©2009 Viking Preferred Service...

  • Page 33: Convection Fan Cover Removal

    2. Pull down the smoke eliminator to remove from oven liner. 3. Reverse procedure for installation. Note: The mounting hole pattern for the convection fan assembly is NOT symmetrical. Line up holes before installing. 3. Reverse procedure for installation. ©2009 Viking Preferred Service...

  • Page 34: Convection Bake Element Removal

    1. Place oven rack in second position from top. 2. Remove four screws and front broil element bracket Control Panel Assembly Removal from oven cavity. Condition Requirements: Door Lowered 1. Remove all knobs. 2. Remove two screws from control panel assembly. ©2009 Viking Preferred Service...

  • Page 35: Oven Function Selector Removal

    Control Panel Assembly Removed 3. Reverse procedure for installation. 1. Disconnect connector from the oven function selector. 2. Remove two screws, bezel, and the oven function selector from the control panel assembly. 3. Reverse procedure for installation. ©2009 Viking Preferred Service...

  • Page 36: Oven Light Bulb Removal

    2. Disconnect connector for top light. 3. Use a screwdriver to depress two tabs in top light housing and tilt front of housing down to remove. 3. Reverse procedure for installation. 4. Reverse procedure for installation. ©2009 Viking Preferred Service...

  • Page 37: Oven Light Switch Removal

    Condition Requirements: Control Panel Assembly Removed 1. Remove two screws and door switch from range. 2. Mark and disconnect two connectors from door switch. 4. Reverse procedure for installation. 3. Reverse procedure for installation. ©2009 Viking Preferred Service...

  • Page 38: Glass Top Removal

    Left Front Element Removal Condition Requirements: Glass Top Removed 1. Mark and disconnect four wires from left front element. 2. Remove element and springs from two posts. 3. Reverse procedure for installation. 3. Reverse procedure for installation. ©2009 Viking Preferred Service...

  • Page 39: Hot Surface Indicator Light Removal

    Condition Requirements: 1. Remove two screws and lift kick plate from keyhole Door Assembly Removed screws. Side Panel Removed 1. Remove three screws and side trim from range. 2. Remove fi ve screws and panel from range. ©2009 Viking Preferred Service...

  • Page 40: Backguard Assembly Removal

    2. Place backguard assembly on suitable work surface. 3. Remove 17 screws and back. Note: Pry corner of front panel slightly to allow front support to slide from the front panel. 7. Reverse procedure for installation. ©2009 Viking Preferred Service...

  • Page 41: Back Panel Removal

    Condition Requirements: Back Panel Removed 1. Remove three screws from blower motor. 2. Remove four screws and blower mount from range. 3. Mark and disconnect three connectors and remove blower motor. 4. Reverse procedure for installation. ©2009 Viking Preferred Service...

  • Page 42: Terminal Block Removal

    Ensure all ground wires are connected before certifying unit as repaired and/or operational. Terminal Block Removal Condition Requirements: Back Panel Removed 1. Mark and disconnect all connectors from terminal block. 2. Remove three screws and terminal block from range. 3. Reverse procedure for installation. ©2009 Viking Preferred Service...
