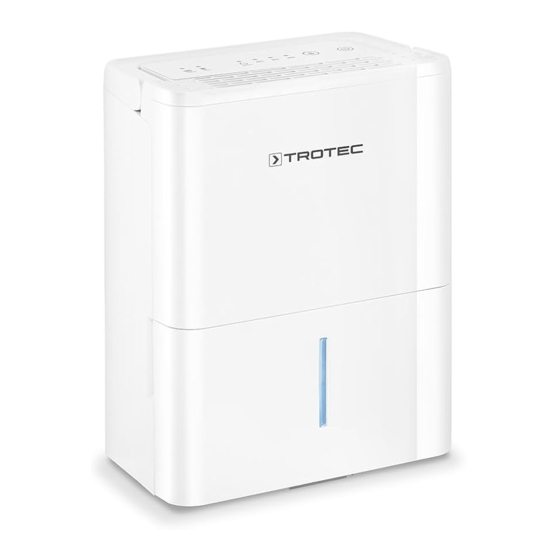

- Page 1 TTK 32 E ORIGINAL INSTRUCTIONS DEHUMIDIFIER...
-
Page 2: Table Of Contents
Information marked with this symbol indicates that the • Check accessories and connection parts for possible instructions must be observed. damage prior to every use of the device. Do not use any defective devices or device parts. dehumidifier TTK 32 E... - Page 3 • The entire refrigerant circuit is a maintenance-free, hermetically sealed system and may only be maintained or repaired by specialist companies for cooling and air- conditioning or by Trotec. dehumidifier TTK 32 E...
- Page 4 • have read and understood the instructions, especially the Safety chapter. Maintenance tasks which require the housing to be opened must only be carried out by specialist companies for cooling and air-conditioning or by Trotec. dehumidifier TTK 32 E...
-
Page 5: Information About The Device
Do not operate the device without an air filter inserted into the air inlet! Without the air filter, the inside of the device will be heavily contaminated. This could reduce the performance and result in damage to the device. dehumidifier TTK 32 E... -
Page 6: Transport And Storage
• Do not use the power cable to drag the device. • Only wheel the device on firm and level surfaces. After transporting the device, proceed as follows: • Set up the device in an upright position after transport. dehumidifier TTK 32 E... -
Page 7: Assembly And Start-Up
Use cable bridges. • Make sure that extension cables are completely unrolled. • When positioning the device, keep a sufficient distance to heat sources. • Make sure that no curtains or other objects interfere with the air flow. dehumidifier TTK 32 E... -
Page 8: Operation
(relative humidity 60 %) 18 Operating modes button Selection button for operating modes: Continuous operation mode Dehumidification (relative humidity 40 %) Dehumidification (relative humidity 50 %) Dehumidification (relative humidity 60 %) 19 Power button Switching the device on or off dehumidifier TTK 32 E... - Page 9 1. Press the operating modes button (18) until the Operation LED (14) is illuminated. ð Continuous operation is selected. Info For continuous operation the condensation drain hose can be connected in order to continuously drain the accumulating condensate. dehumidifier TTK 32 E...
- Page 10 Remove the hose if you want to collect the condensate in the condensation tank again. Allow the hose to dry prior to storage. The hose can be connected in any operating mode for continuous operation. dehumidifier TTK 32 E...
-
Page 11: Errors And Faults
Maintenance). If the condenser is dirty, have it Flashing slowly Leaking refrigerant Switch the device off cleaned by a specialist company or by Trotec. and contact the • The device might carry out an automatic defrost. During customer service. -
Page 12: Maintenance
10. Date: ........11. Date: ........12. Date: ........Signature: ........Signature: ........Signature: ........Signature: ........13. Date: ........14. Date: ........15. Date: ........16. Date: ........Signature: ........Signature: ........Signature: ........Signature: ........dehumidifier TTK 32 E... - Page 13 3. Check the inside of the device for dirt. 4. If you see a thick layer of dust, have the inside of the device cleaned by a specialist company for cooling and air- conditioning or by Trotec. dehumidifier TTK 32 E...
- Page 14 4. Reinsert the air filter into the device. 2. Empty the condensation tank over a drain or sink. 3. Rinse the tank with clear water. Clean the tank regularly using a mild cleaning agent (no detergent!). dehumidifier TTK 32 E...
-
Page 15: Technical Annex
Sound pressure level 46 dB (A) Dimensions (length x width x 215 x 320 x 420 mm height) Minimum distance to walls and other objects A: top 40 cm B: rear 20 cm C: side 20 cm D: front 20 cm Weight 11 kg dehumidifier TTK 32 E... - Page 16 Wiring diagram dehumidifier TTK 32 E...
- Page 17 Chassis Assembly Air Inlet Grille Volute Shell Assembly 5.2 Wheel Cover Of Electronic Control Box Centrifugal Fan Power Cord Subassembly Drain Pipe Single Phase Asynchronous Motor 7 Pipe Temperature Sensor Volute Shell Subassembly Fixed Speed Reciprocating Compressor dehumidifier TTK 32 E...
-
Page 18: Disposal
(European Waste Catalogue 160504). Only for United Kingdom According to Waste Electrical and Electronic Equipment Regulations 2013 (SI 2013/3113) (as amended) devices that are no longer usable must be collected separately and disposed of in an environmentally friendly manner. dehumidifier TTK 32 E... - Page 19 Trotec GmbH Grebbener Str. 7 D-52525 Heinsberg +49 2452 962-400 +49 2452 962-200 info@trotec.com www.trotec.com...
