Models/Modelos/Modèles
6516828, 6316838
Series/Series/Seria
Trevit
Write purchased model number here.
Escriba aquí el número del modelo comprado.
Inscrivez le numéro de modèle ici.
For easy installation of your
BRIZOt faucet you will need:
* To READ ALL the instructions completely before
beginning.
* To READ ALL warnings, care, and maintenance
information.
* To purchase the correct water supply hook--up.
Para instalación fácil de su llave
BRIZOt usted necesitará:
* LEER TODAS las instrucciones completamente
antes de empezar.
* LEER TODOS los avisos, cuidados, e información
de mantemiento.
* Comprar las conexiones correctas para el suministro
de agua.
Pour installer votre robinet BRIZOt
facilement, vous devez :
* LIRE TOUTES les instructions avant de débuter.
* LIRE TOUS les avertissements ainsi que toutes
les instructions de nettoyage et d'entretien.
* Acheter le bon raccordement nécessaire pour
l'alimentation en eau.
12804.00

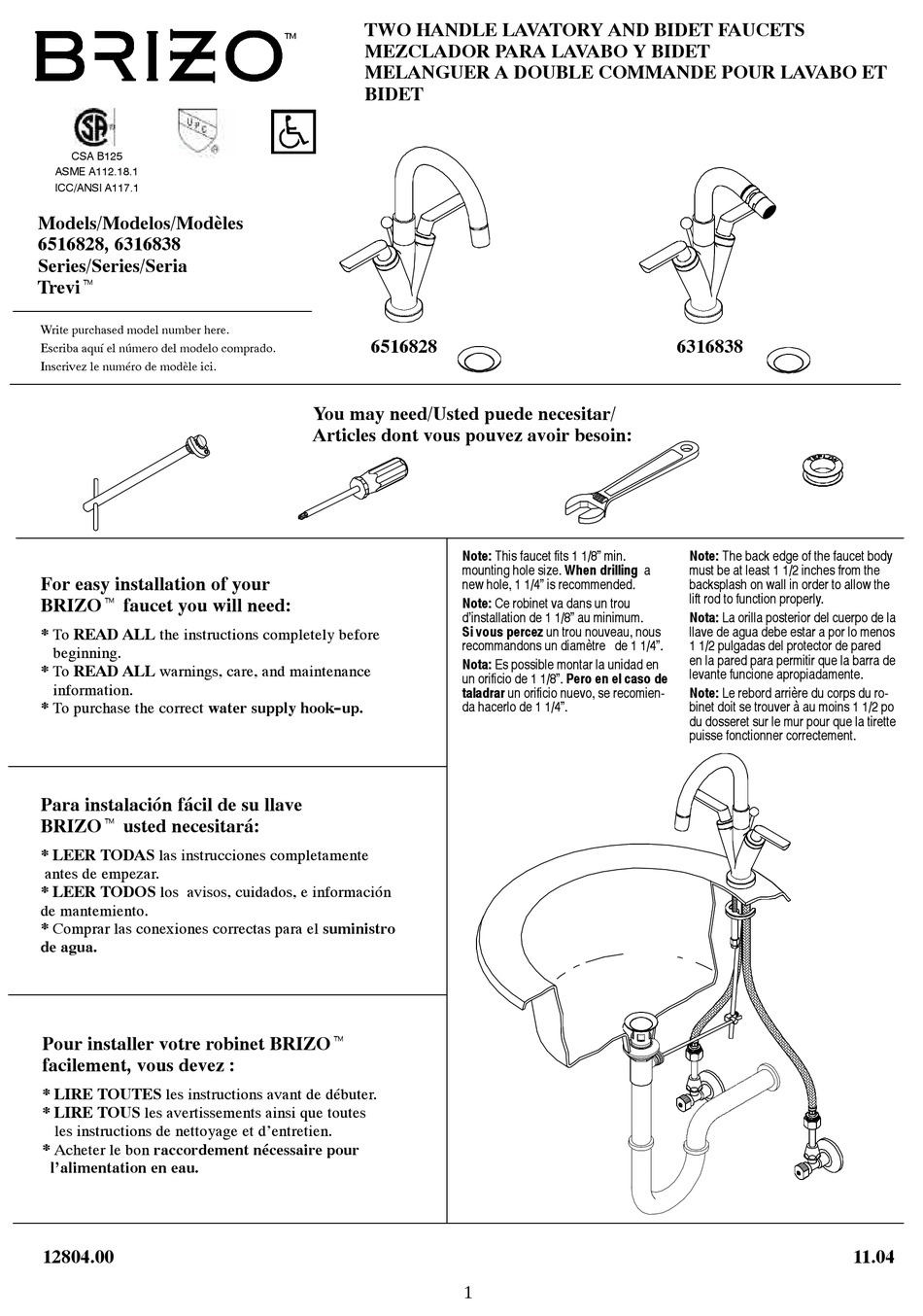

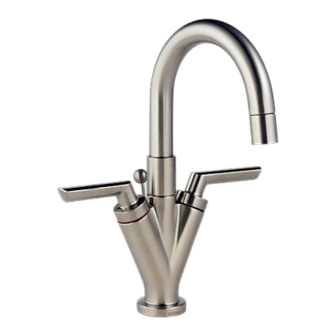

TWO HANDLE LAVATORY AND BIDET FAUCETS
t
MEZCLADOR PARA LAVABO Y BIDET
MELANGUER A DOUBLE COMMANDE POUR LAVABO ET
BIDET
6516828
You may need/Usted puede necesitar/
Articles dont vous pouvez avoir besoin:
Note: This faucet fits 1 1/8" min.
mounting hole size. When drilling a
new hole, 1 1/4" is recommended.
Note: Ce robinet va dans un trou
d'installation de 1 1/8" au minimum.
Si vous percez un trou nouveau, nous
recommandons un diamètre de 1 1/4".
Nota: Es possible montar la unidad en
un orificio de 1 1/8". Pero en el caso de
taladrar un orificio nuevo, se recomien-
da hacerlo de 1 1/4".
1
6316838
Note: The back edge of the faucet body
must be at least 1 1/2 inches from the
backsplash on wall in order to allow the
lift rod to function properly.
Nota: La orilla posterior del cuerpo de la
llave de agua debe estar a por lo menos
1 1/2 pulgadas del protector de pared
en la pared para permitir que la barra de
levante funcione apropiadamente.
Note: Le rebord arrière du corps du ro-
binet doit se trouver à au moins 1 1/2 po
du dosseret sur le mur pour que la tirette
puisse fonctionner correctement.
11.04
