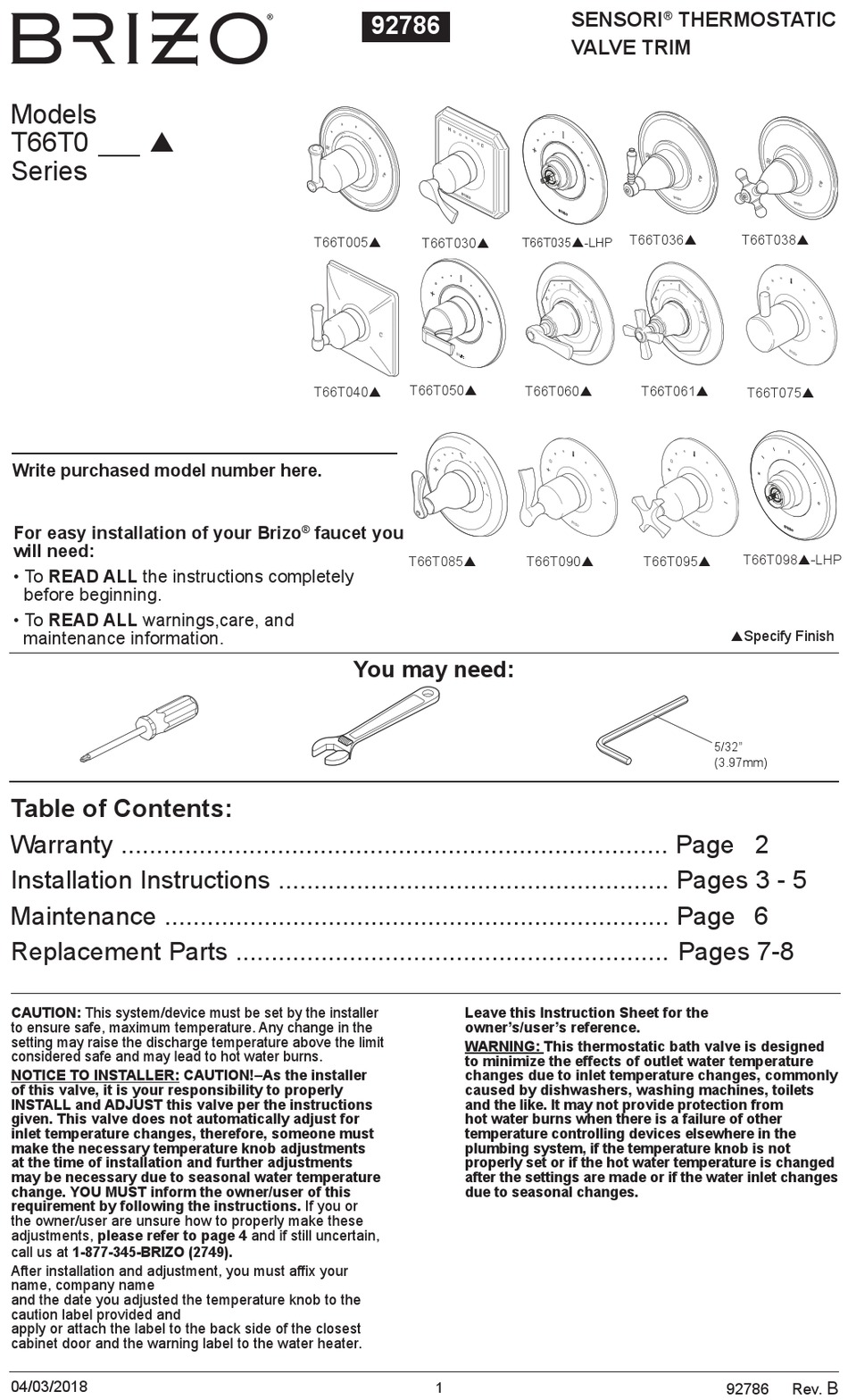

Brizo SENSORI T66T0 Series Manual

Models
T66T0
p
Series
Write purchased model number here.
For easy installation of your Brizo
will need:
• To READ ALL the instructions completely
before beginning.
• To READ ALL warnings,care, and
maintenance information.
Table of Contents:
Warranty ............................................................................. Page 2
Installation Instructions ....................................................... Pages 3 - 5
Maintenance ....................................................................... Page 6
Replacement Parts ............................................................. Pages 7-8
CAUTION: This system/device must be set by the installer
to ensure safe, maximum temperature. Any change in the
setting may raise the discharge temperature above the limit
considered safe and may lead to hot water burns.
NOTICE TO INSTALLER: CAUTION!–As the installer
of this valve, it is your responsibility to properly
INSTALL and ADJUST this valve per the instructions
given. This valve does not automatically adjust for
inlet temperature changes, therefore, someone must
make the necessary temperature knob adjustments
at the time of installation and further adjustments
may be necessary due to seasonal water temperature
change. YOU MUST inform the owner/user of this
requirement by following the instructions. If you or
the owner/user are unsure how to properly make these
adjustments, please refer to page 4 and if still uncertain,
call us at 1-877-345-BRIZO (2749).
After installation and adjustment, you must affix your
name, company name
and the date you adjusted the temperature knob to the
caution label provided and
apply or attach the label to the back side of the closest
cabinet door and the warning label to the water heater.
04/03/2018
92786
T66T005p
T66T030p
T66T050p
T66T040p
faucet you
®
T66T085p
T E FLO N
You may need:
1
SENSORI
VALVE TRIM
T66T035 p -LHP
T66T060p
T66T090p
Leave this Instruction Sheet for the
owner's/user's reference.
WARNING: This thermostatic bath valve is designed
to minimize the effects of outlet water temperature
changes due to inlet temperature changes, commonly
caused by dishwashers, washing machines, toilets
and the like. It may not provide protection from
hot water burns when there is a failure of other
temperature controlling devices elsewhere in the
plumbing system, if the temperature knob is not
properly set or if the hot water temperature is changed
after the settings are made or if the water inlet changes
due to seasonal changes.
THERMOSTATIC
®
T66T036p T66T038p
T66T061p
T66T075p
T66T098p-LHP
T66T095p
Specify Finish
p
5/32"
(3.97mm)
92786
B
Rev.
