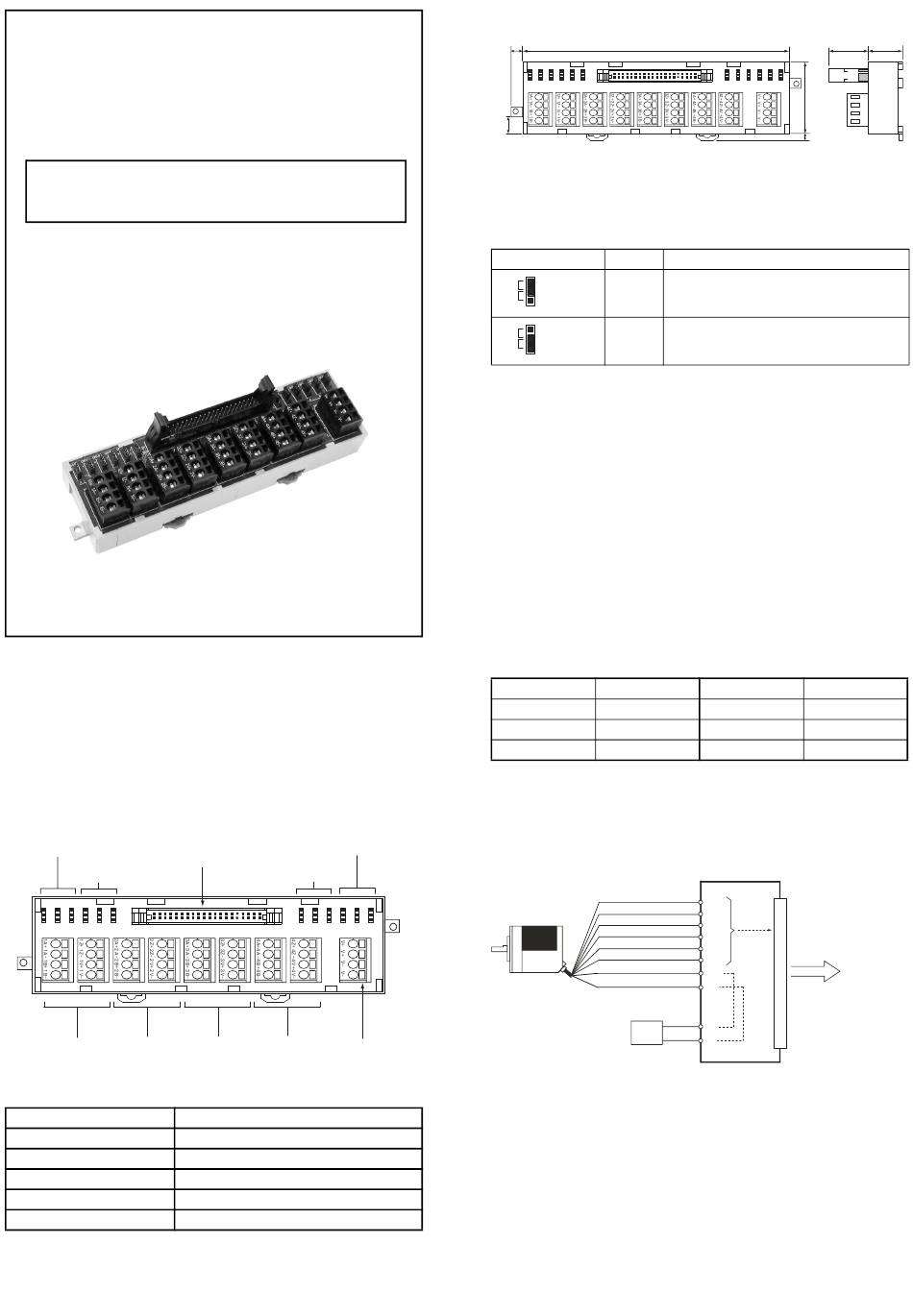

Omron XW2G-40G7-E Instruction Sheet

Model
XW2G-40G7-E
Input Terminal Block for CJ1W-CTL41-E
INSTRUCTION SHEET
Thank you for purchasing an OMRON product. Read this
instruction sheet thoroughly and familiarise yourself with the
functions and characteristics of the product before using it. To
ensure safe and correct use of this Unit, also read the following
manual (Cat No. W02E-EN-01 CJ1W-CTL41-E 4-Channel
Counter Unit Operation Manual).
Keep this instruction sheet for future reference.
OMRON MANUFACTURING OF THE NETHERLANDS B.V.
© OMRON Corporation 2004 All Rights Reserved
!DANGER
Do not attempt to take the Unit apart and do not
touch any internal parts while the power is being
supplied. Doing either of these may result in
electrical shock, and serious or fatal injury.
!Caution
Do not use the XW2G-40G7-E Input Terminal
Block with other Units than the CJ1W-CTL41-E.
Doing this might cause damage to these Units.
■ Nomenclature
Channel 1
jumpers
Connector to
Channel 2
CJ1W-CTL41-E
jumpers
Channel 1 Channel 2
connections connections
■
s
Unit Specification
Storage temperature
Ambient temperature
Ambient humidity
EMC compliance
Mounting
Weight
P N S P O
1643469-2A
Channel 4
jumpers
Channel 3
jumpers
Encoder Power
Channel 3 Channel 4
Supply input
connections connections
-20 to +75 °C
0 to +55 °C
10 to 90% (non-condensing)
EN 50081-2, EN 61131-2
DIN-rail mountable
125 g (typical)
■ Dimensions
7
157
11
■ Jumper settings
The XW2G-40G7-E provides a means to select the level for every
Input signal separately, using the jumper. The following selections are
possible
Setting
LD
LD
Line Driver
24V
24V
LD
24V
24V
• Always set all three jumpers for a channel to a single selection.
• Default jumper setting: 24 V
!Caution
Do not set the jumpers to the Line Driver (LD)
setting if the Encoders signals are 24V. Doing so
can cause damage to the CJ1W-CTL41-E Unit.
■ Encoder Power Supply
The XW2G-40G7-E provides power distribution to Encoders:
• Power supply input terminals: V+ / V-
• Power output to Encoders: nV+/nV- (n = 1, 2, 3, 4)
• In case encoders with different supply voltages are used on one
counter unit, supply power to them separately
■ Cable specifications
The XW2G-40G7-E must be connected to the CJ1W-CTL41-E using
one of the following cable types:
Cable type Length
XW2Z-050K 0.5 m
XW2Z-100K 1.0 m
XW2Z-150K 1.5 m
These cables can be ordered from OMRON
■ Wiring
The figure below shows a Line Driver wiring example for one
Encoder:
Black: Phase A+
Black/red: Phase A-
Encoder
White: Phase B+
White/red: Phase B-
Orange: Phase Z+
Orange/red: Phase Z-
Brown: 5Vdc
Blue: 0Vdc (COM)
Ex. E6B2-CWZ1X
Line Driver Outputs
+5Vdc
0 V
5 Vdc
Power supply
Note: All Channel 1 jumpers in Line Driver setting
P N S P O
OMRON CORPORATION
OMRON EUROPE B.V.
Wegalaan 67-69, NL-2132 JD, Hoofddorp, The Netherlands
Phone (+31) 23 - 56 81 300, Fax (+31) 23 - 56 81 388
Note: Specification subject to change without notice
Printed in The Netherlands
24.2
45
3
Description
The Line Driver level is selected.
Input signals are directly connected to
the cable connector.
The 24 V level is selected
Input signals are connected to the cable
connector via a resistor of 2.7 kΩ .
Cable type Length
XW2Z-200K 2.0 m
XW2Z-300K 3.0 m
XW2Z-500K 5.0 m
XW2G-40G7-E
Input Terminal Block
Terminals
1A+
1A-
1B+
1B-
XW2Z-xxxK
1Z+ OMRON I/O cable
1Z-
1V+
1V-
V+
V-
1643469-2A
20
to CJ1W-CTL41-E
Counter Unit
