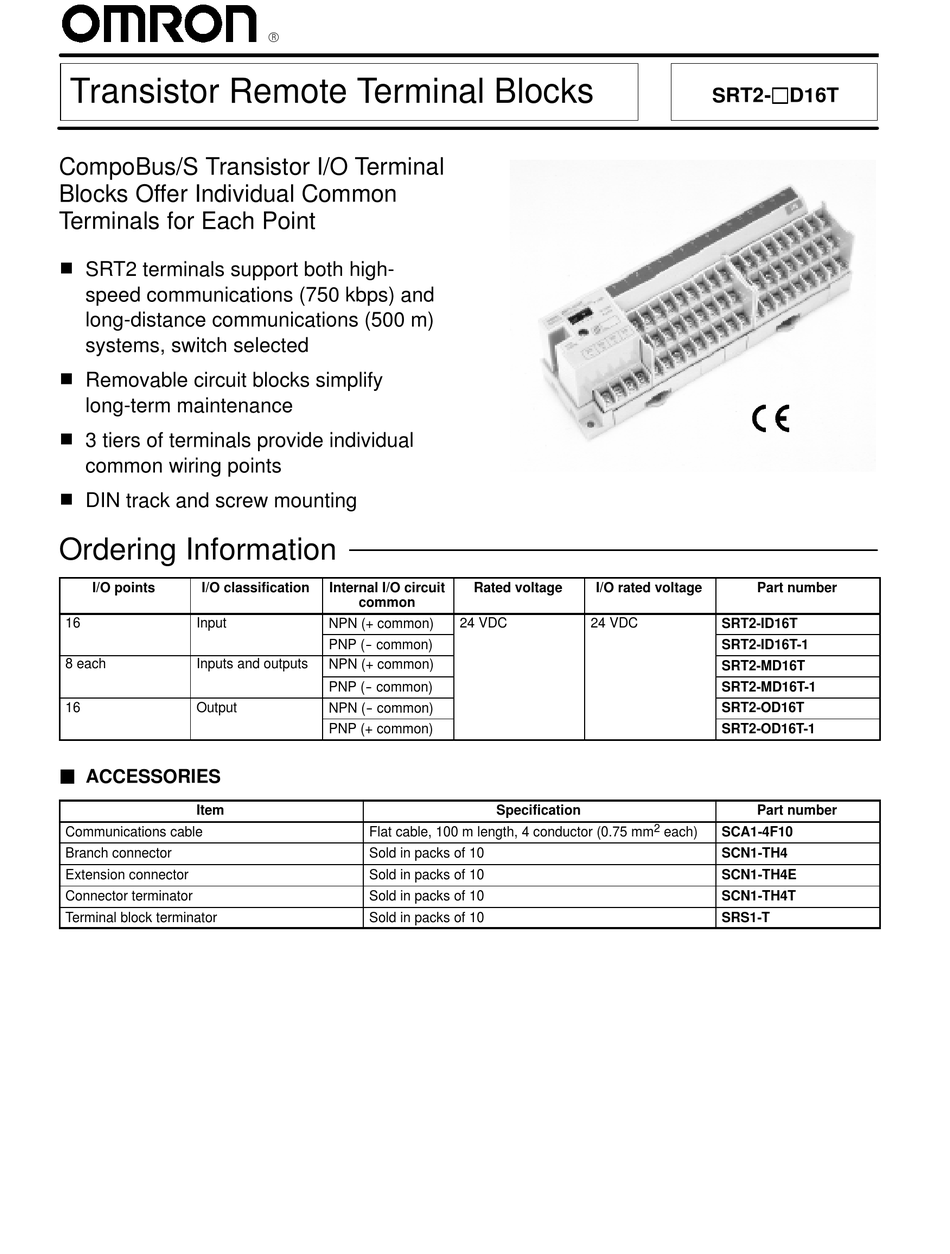

Transistor Remote Terminal Blocks
CompoBus/S Transistor I/O Terminal
Blocks Offer Individual Common
Terminals for Each Point
1
SRT2 terminals support both high-
speed communications (750 kbps) and
long-distance communications (500 m)
systems, switch selected
1
Removable circuit blocks simplify
long-term maintenance
1
3 tiers of terminals provide individual
common wiring points
1
DIN track and screw mounting
Ordering Information
I/O points
I/O classification
16
Input
8 each
Inputs and outputs
16
Output
3 ACCESSORIES
Item
Communications cable
Branch connector
Extension connector
Connector terminator
Terminal block terminator
9
Internal I/O circuit
common
NPN (+ common)
PNP (-- common)
NPN (+ common)
PNP (-- common)
NPN (-- common)
PNP (+ common)
Flat cable, 100 m length, 4 conductor (0.75 mm
Sold in packs of 10
Sold in packs of 10
Sold in packs of 10
Sold in packs of 10
Rated voltage
I/O rated voltage
24 VDC
24 VDC
Specification
SRT2-P P P P D16T
Part number
SRT2-ID16T
SRT2-ID16T-1
SRT2-MD16T
SRT2-MD16T-1
SRT2-OD16T
SRT2-OD16T-1
Part number
2
each)
SCA1-4F10
SCN1-TH4
SCN1-TH4E
SCN1-TH4T
SRS1-T

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SRT2-PD16T and is the answer not in the manual?

Questions and answers

Related Manuals for Omron SRT2-PD16T

Summary of Contents for Omron SRT2-PD16T

  • Page 1 Transistor Remote Terminal Blocks SRT2-P P P P D16T CompoBus/S Transistor I/O Terminal Blocks Offer Individual Common Terminals for Each Point SRT2 terminals support both high- speed communications (750 kbps) and long-distance communications (500 m) systems, switch selected Removable circuit blocks simplify long-term maintenance 3 tiers of terminals provide individual common wiring points...

  • Page 2: Specifications

    SRT2-P P P P D16T SRT2-P P P P D16T Specifications 3 RATINGS Inputs Input current 6 mA max./point at 24 V and 3 mA min./point at 17 V ON delay time 1.5 ms max. OFF delay time 1.5 ms max. ON voltage 15 VDC min.

  • Page 3: Dip Switch Settings

    SRT2-P P P P D16T SRT2-P P P P D16T Nomenclature ERR Indicator: Indicates communications errors. COMM Indicator: ON while the Module is in data communication. I/O Indicators Power Indicator M4 Mounting Screw Communications DIP Switch The DIP switch is on the left- hand side under the cover on the upper part of the Remote I/O Terminal.
  • Page 4 SRT2-P P P P D16T SRT2-P P P P D16T Node Number Settings Node address Setting (Hex) Node address Setting (Hex) Node address Setting (Hex) − − − − Note: For node number settings, refer to the CompoBus/S Operation Manual (W266). Dimensions Unit: mm (inch) SRT2-ID16T (-1)

  • Page 5: Installation

    SRT2-P P P P D16T SRT2-P P P P D16T Installation 3 INTERNAL CIRCUIT CONFIGURATION SRT2-ID16T SRT2-MD16T SRT2-OD16T DC-DC converter DC-DC converter DC-DC converter (isolated type) (isolated type) (isolated type) Inputs Inputs (0 to 7) Inputs (0 to 7) Photo- (0 to 7) Photocoupler Photocoupler...
  • Page 6 SRT2-P P P P D16T Precautions Refer to the CompoBus/S Operation Manual (W266) before using the Unit. NOTE: DIMENSIONS SHOWN ARE IN MILLIMETERS. To convert millimeters to inches divide by 25.4. OMRON ELECTRONICS, INC. OMRON CANADA, INC. One East Commerce Drive 885 Milner Avenue...
