EarthQuaker Devices Park Fuzz Sound Operation Manual

www.earthquakerdevices.com

Park Amplifiers and EarthQuaker Devices have teamed up to bring you a

faithful recreation of the original Park Fuzz Sound! While it retains the original

sounds, there are several modern upgrades to improve performance, reduce

extraneous background noise and add versatility:

• Metal film resistors and caps for quieter performance

• NOS matched germanium transistors for consistent, reliable tones

• Wider fuzz range, more than twice the original

• Smaller footprint, true bypass switching with LED indication and power

supply compatible

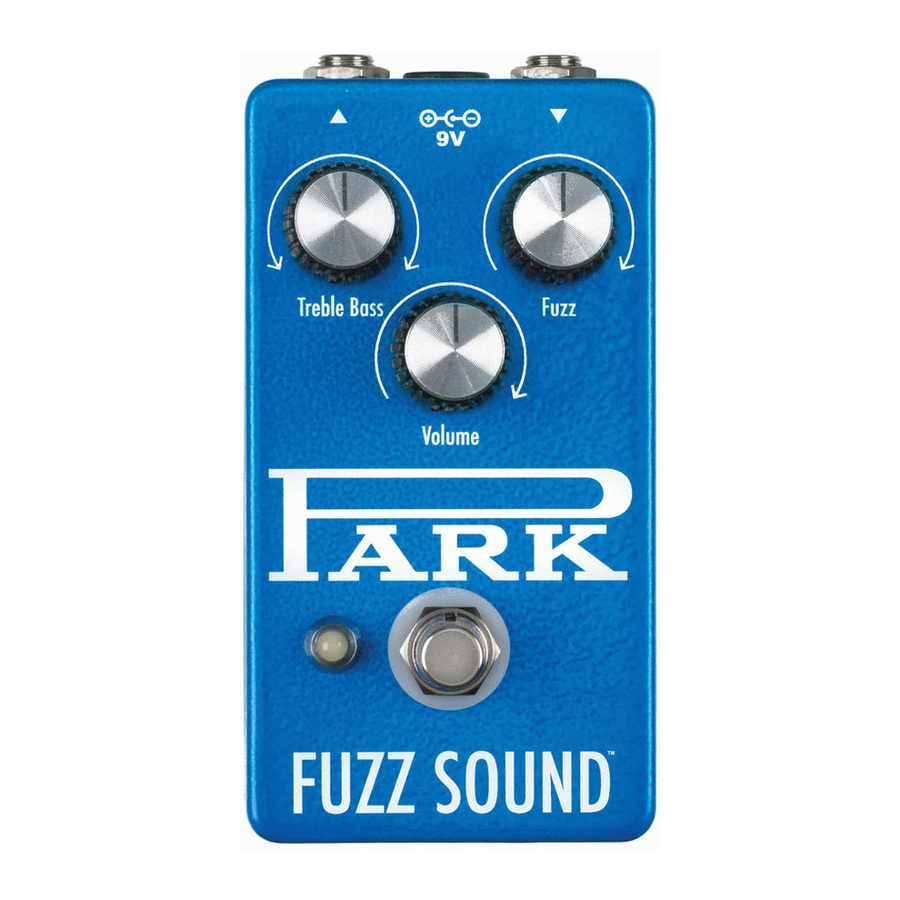

Controls

Volume: This is the level control, louder to the right, quieter to the left.

Treble/Bass: This is the tone control, thicker tones to the right, brighter to the left.

Fuzz: This is the gain control, more fuzz to the right, less to the left.

EQDPARK-EU-R2

<<< English >>>

This device can be powered by a standard 9 volt DC power supply intended for

musical instruments with a negative center 2.1mm barrel or a 9v battery. Even

though this pedal is a germanium fuzz, it will play nice on a daisy chain due to

it's internal voltage regulation.

Current Draw: 3 mA

Input Impedance: 100 kΩ

Output Impedance: <1 kΩ

This device has a limited lifetime warranty. If it breaks, we will fix it. Should you

encounter any issues, please visit www.earthquakerdevices.com/warranty.
