Imported by Amart Furniture Pty Ltd, Brisbane, Qld, Australia.
For any assistance with assembly or for missing parts please phone
Amart Furniture, Customer Service Free call 1800 351 084

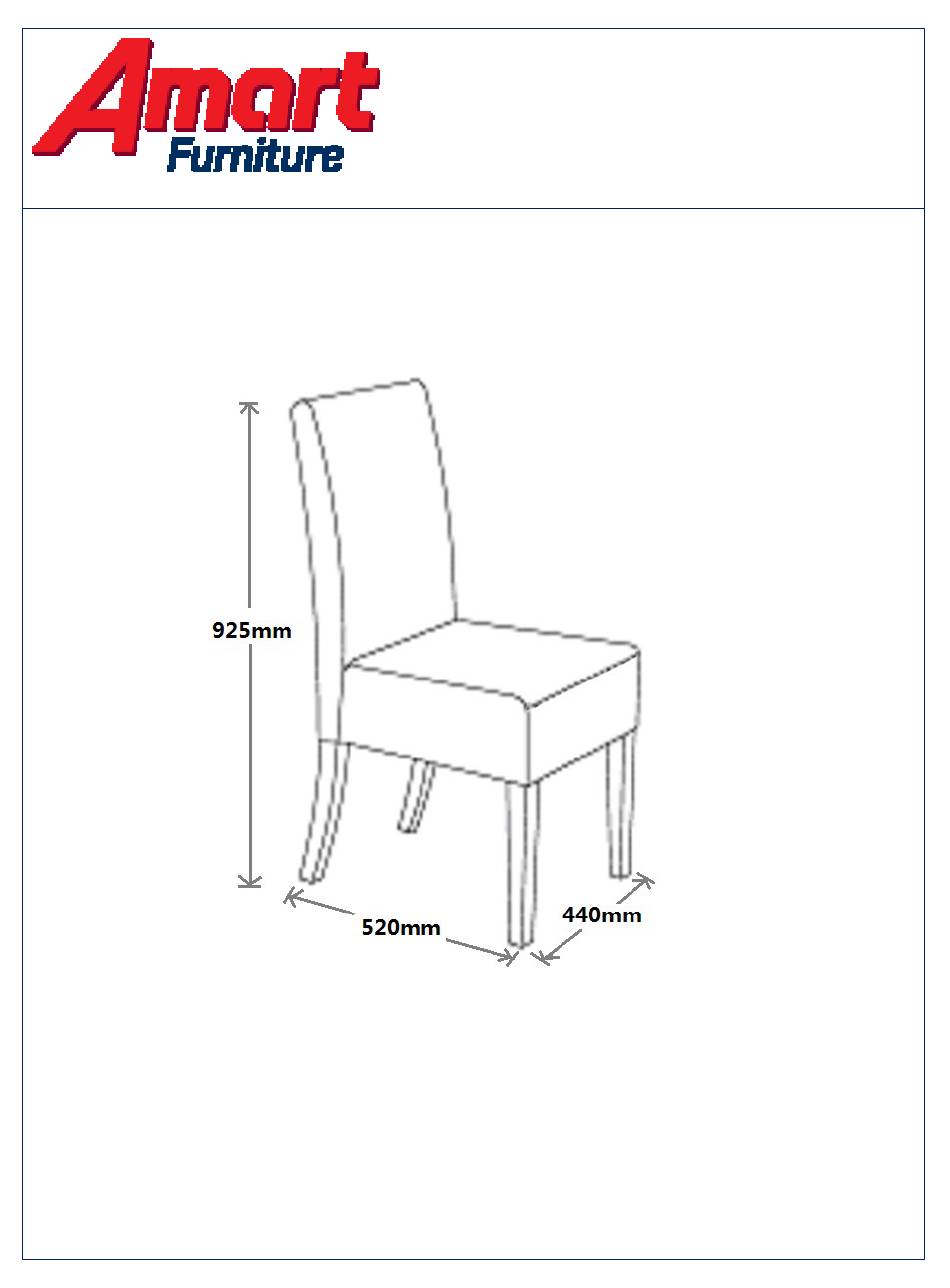

ASSEMBLY INSTRUCTION

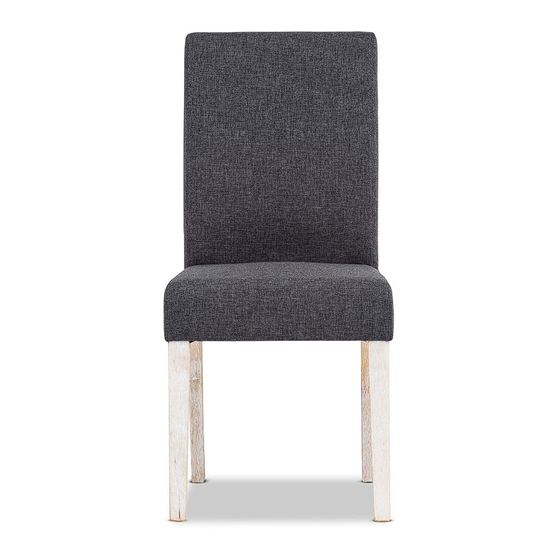

TULUM DINING CHAIR
ITEM CODE 74656
Imported by Amart Furniture Pty Ltd, Brisbane, Qld, Australia.
For any assistance with assembly or for missing parts please
phone Amart Furniture, Customer Service Free call 1800 351 084
1
ITEM CODE 74656
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Amart Furniture TULUM 74656
Summary of Contents for Amart Furniture TULUM 74656
- Page 1 Imported by Amart Furniture Pty Ltd, Brisbane, Qld, Australia. For any assistance with assembly or for missing parts please phone Amart Furniture, Customer Service Free call 1800 351 084 Imported by Amart Furniture Pty Ltd, Brisbane, Qld, Australia. For any assistance with assembly or for missing parts please phone...
- Page 2 PRE-ASSEMBLY PREPARATION Before you start: 1.Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2.Take care when lifting. Product should be assembled as near as possible to the point of use 3.Ensure that you have all required contents for complete assembly 4.Always read the assembly instructions carefully before beginning assembly.
- Page 3 PARTS LIST BACK FRAME LEGS SEAT ITEM CODE 74656...
- Page 4 STEP1 Attach the Seat(3) to the Back frame (1) with Bolt(C), washer(D) and Spring washer (G) using Allen Key(E). STEP2 Secure the Seat(3) to the Back frame (1) with Bolt(A), washer(D) and Spring washer (G) using Allen Key(E). ITEM CODE 74656...
- Page 5 STEP3 Attach the Legs(2) to the Seat (3) with Bolt(B), washer(D) and Spring washer (G) using Allen Key(E). ITEM CODE 74656...
- Page 6 Important Information Bolt Tightening Instructions Improperly fastened bolts. • Have gaps in-between the washer, split washer, bolt head and the chair. • Split washer is not compressed. • Bolt can be easily unwound by hand. Properly fastened bolts. • No gaps between the washer, split washer, bolt head and the chair. •...
- Page 7 STEP4: Attach dust cover(F) to underside of the seat(3) ASSEMBLY IS COMPLETE ITEM CODE 74656...
- Page 8 Care and maintenance REGULAR CARE: • Protect from direct sunlight • Vacuum regularly using low suction • Rotate reversible cushions regularly CLEANING: • Do not remove cushion covers for separate cleaning even though they may have zippers • Do not wash , Do not dry clean , Do not shampoo clean •...
