ASSEMBLY INSTRUCTION

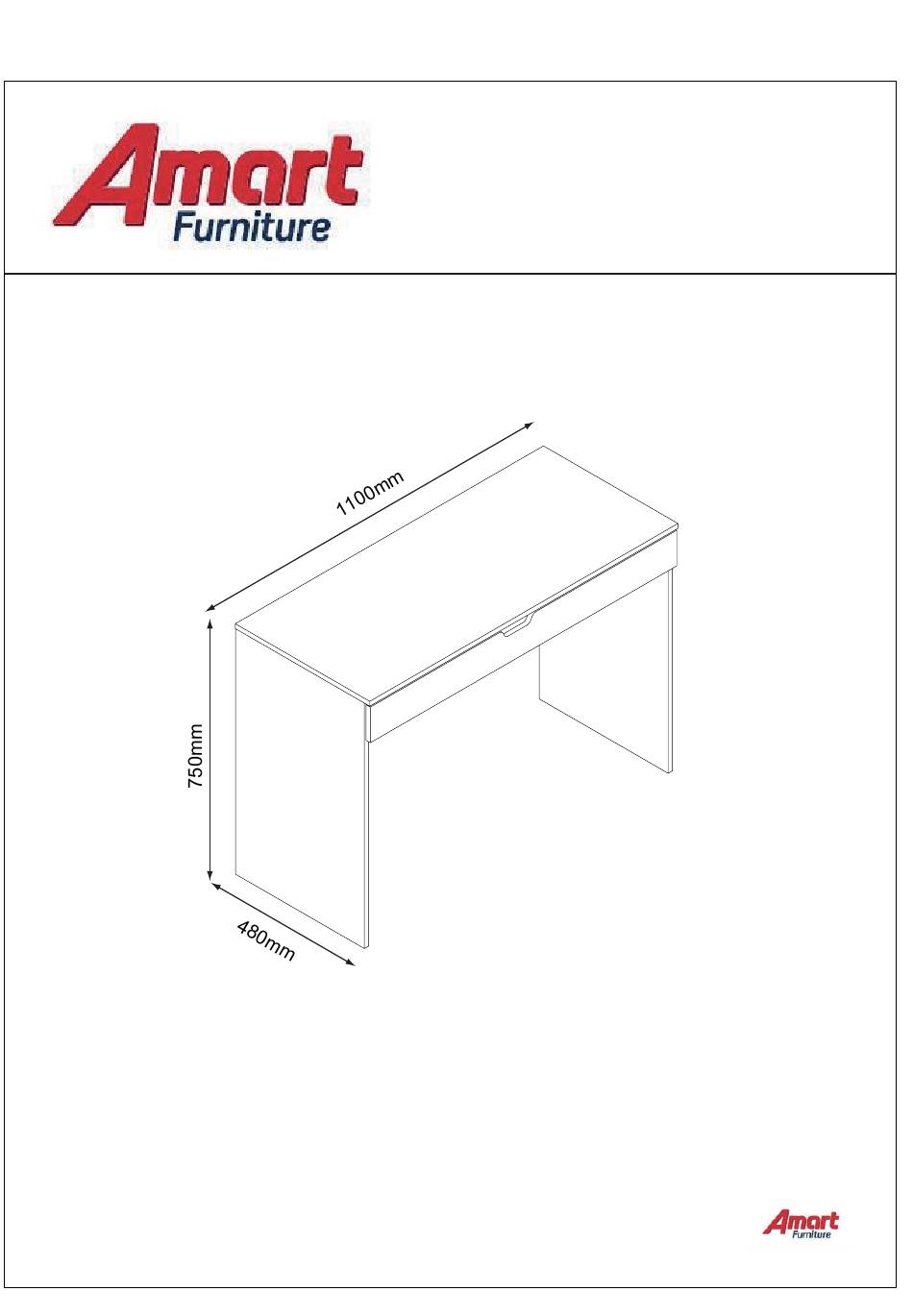

TARVI DESK
ITEM CODE 67321
Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.
For any assistance with assembly or for missing parts please phone
Amart Furniture , Customer Service Free call 1800 351 084
Imported by
Amart Furniture
Pty Ltd, Qld, Brisbane Australia.
For any assistance with assembly or for missing parts please phone
Amart Furniture
, Customer Service Free call 1800 351 084
Item Code: 67321
2019-10-11
1-15
Advertisement
Related Manuals for Amart Furniture TARVI 67321
Summary of Contents for Amart Furniture TARVI 67321
- Page 1 ITEM CODE 67321 Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please phone Amart Furniture , Customer Service Free call 1800 351 084 Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.
- Page 2 2019-10-11 Item Code: 67321 2-15...
- Page 3 2019-10-11 3-15 Item Code: 67321...
- Page 4 CHECKLIST Before you start..1.Choose a clean,level,spacious assembly area. Avoid hard surfaces that may damage the product. 2.Check and ensure that you have all required contents for complete assembly. 3.Always read the assembly instructions carefully before beginning assembly. 4.The packaging and contents can be a choking hazard. Please keep out of reach of small children at all times.
- Page 5 CAM LOCK INSTALL METHOD AS FOLLOWS 1.1cm Step 1 Step 2 Step 3 Lock Fix cam nut into the bottom of hole then tighten it. 2019-10-11 Item Code: 67321 5-15...
- Page 6 (MM) 735x460x15 735x460x15 1066x390x12 1100x480x15 1010x3x14 1094x10x15 315x80x15 315x80x15 1009x8x15 1017x307x2.7 299x50x15 Item Code: 67321 6-15 2019-10-11...
- Page 7 1xCL 1xCR STEP 1: Fix runners (CL)&(CR) to panels(1)&(2) using screws(F). STEP 2: Attach panel (3) to panels (1)(2) with dowel (E),screws(C) and sticker (J). Item Code: 67321 2019-10-11 7-15...
- Page 8 STEP 3: Insert dowel (D)(E) to panels (1)(2)(3). STEP 4: Fix cam pin (A) to panel(4). Attach metal rail (5) to panel(4) with screw(H). 2019-10-11 Item Code: 67321 8-15...
- Page 9 STEP 5: Attach panel (4) to the body with cam lock (B)(C). Item Code: 67321 2019-10-11 9-15...
- Page 11 STEP 9: Assemble drawer to the body. ASSEMBLY COMPLETE. Item Code: 67321 2019-10-11 11-15...
- Page 12 STEP 1: Fix bracket to back panel using screws M3.5*14MM . NOTE are used. Failure to do so may result in personal injury or cause property damage if the product topples over. Please note that the screws are only suitable for plasterboard wall materials, please contact local hardware store for corresponding screws for other wall materials.
- Page 13 STEP 2: Fix bracket onto the wall using screws M4*30MM. Furniture top Wallboard Bracket 13-15...
- Page 14 SAFETY BRACKETS INSTRUCTIONS 1.Attach a bracket to the wallboard with the long screws provided. 2.Attach a bracket to the furniture frame under the top with the short screws provided. 3.Move the furniture into its final position. Thread a strap through the bracket as shown in the illustration, tighten strap until snug.
-
Page 15: Product Care
PRODUCT CARE: To protect your furniture,we suggest the following: *Avoid placing your furniture in direct sunlight. *Do not place furniture directly under windows. *Do not place sharp materials(knife,fork,etc) directly onto your furniture as sharp material may scrape and damage the finish. Do not place material with high temperature directly onto the surface of your furniture.
