PowerPlus Energy LiFe Premium P Series Installation And Operation Manual
Hide thumbs
Also See for LiFe Premium P Series:
- Installation and operation manual (30 pages) ,
- Installation and operation manual (37 pages)
Related Manuals for PowerPlus Energy LiFe Premium P Series
Summary of Contents for PowerPlus Energy LiFe Premium P Series

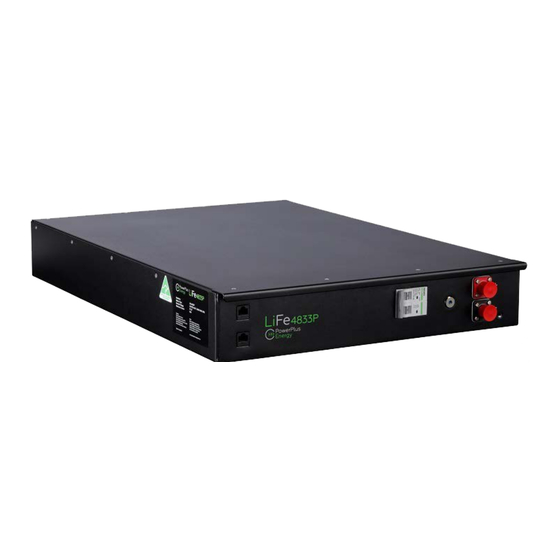

- Page 1 LiFe Premium P Series Installation and Operation Manual Your complete installation guide for LiFe2433P, LiFe4822P, LiFe4833P and LiFe12033P batteries...
- Page 2 3.1. Weight and Dimensions 7.1.3. Soft Shutdown Recovery 3.2. Inclusions 7.1.3. BMS Threshold Hard Shutdown 3.3. Specifications 7.1.4. Hard Shutdown Recovery 3.3.1. LiFe Premium P Series 3.4. Charging and Discharging 8. MAINTENANCE 3.4.1. Primary Charging Source 9. UPGRADING BATTERY CAPACITY 3.4.2. Secondary Charging Source 10.
-
Page 3: Basic Safety
LiFe storage solution. Premium P Series battery. As a result, the LiFe Premium P Series batteries can The LiFe Premium P Series battery is available in 24V be easily installed with most inverter and charger and 48V and 120V. -
Page 4: Storage Of Battery
A damaged battery should not be used and should • Adhere to all safety and installations requirements be returned to PowerPlus Energy or disposed of via within this manual. a recycling facility. Leaking electrolyte can cause skin... -
Page 5: Product Information
The LiFe P Series batteries are self-managed with an internal BMS within each battery to protect it from If you are unsure, please consult your PowerPlus over voltage, under voltage, over temperature and Energy expert or the PowerPlus Energy web page for over current. advice. BMS Status LED... -
Page 6: Specifications
Arc Flash Incident Energy IEm in Cal/cm2 0.25 0.36 0.36 0.54 (45cm) 20.45 24.45 24.45 30.19 Arc Flash Incident Energy AFB in cm Pending IEC: 62619:2017, Pending IEC: 62619:2017, Pending IEC: 62619:2017, Pending IEC: 62619:2017, Certifications UN38.3, EMC UN38.3, EMC UN38.3, EMC UN38.3, EMC Warranty 10 Years (Conditions apply) PowerPlus Energy Pty Ltd 12/05/2023 | V7.7 page 6 of 24... -
Page 7: Charging And Discharging
Float Voltage Standby (Long Term Float) 27.2V to 28V 54.4V to 56V 140V (Example UPS Application) 21.5A 12.8A Charge Current 1.02 Peukert Exponent Shutdown SoC Recommended Every 7 days or more frequent where possible. (Ensures cell balancing Calibration to 100% is performed & keeps external SoC counter more accurate) PowerPlus Energy Pty Ltd 12/05/2023 | V7.7 page 7 of 24... - Page 8 3.4.5. CHARGING CURVES P SERIES PowerPlus Energy Pty Ltd 12/05/2023 | V7.7 page 8 of 24...
- Page 9 3.4.6. DISCHARGING CURVES P SERIES PowerPlus Energy Pty Ltd 12/05/2023 | V7.7 page 9 of 24...
- Page 10 100% within 7 days. Leaving the battery in a discharged can cause irreversible damage to the battery or battery capacity. PowerPlus Energy Pty Ltd 12/05/2023 | V7.7 page 10 of 24...
- Page 11 The integrated non-polarised DC circuit breaker is dual pole and a K curve type. The table below outlines the trip times based on current. Multiple of circuit breaker rated current PowerPlus Energy Pty Ltd 12/05/2023 | V7.7 page 11 of 24...
-
Page 12: Installation
• The area or enclosure is vermin proof to suit your environmental locations. • The batteries and battery cabinets/housings are not exposed to direct sunlight. The LiFe Premium P Series battery is designed to be installed in a 19 inch data rack assembly or an electrical enclosure of your choice. If the battery is to be installed outdoors a suitable IP54 or great enclosure should be used. -
Page 13: Battery Installation
4.2. BATTERY INSTALLATION 4.2.2. BATTERY ORIENTATION STATIONARY APPLICATION PowerPlus Energy highly recommends our range of Rack or Slimline Series indoor and outdoor cabinets. The LiFe batteries can be mounted in 4 orientations, Full specification details are available on the PowerPlus excluding on its face or upside down. -
Page 14: Battery Connections
A range of cables and mating connectors and in most installations will not require earthing. are available from any PowerPlus Energy place of However should your application require the case to be purchase. grounded a 5mm M6 bolt should be used. -
Page 15: Data Logging
INPUT Max Input Max Input Ethernet 60V 100mA 60V 100mA Cable Ethernet Cable VICTRON SELECTRONIC CEBRO GX SP PRO Loop back Loop back connector connector COMLBA COMLBA PowerPlus Energy Pty Ltd 12/05/2023 | V7.7 page 15 of 24... - Page 16 Refer to the PowerLink specification for full monitoring details found on our website: powerplus-energy.com.au 4.6.2. POWERLINK Each PowerLink can monitor up to 20 batteries and multiple Powerlink’s can be connected to the one system within PowerPlus Energy’s monitoring portal (https://performance.powerplus-energy.com.au:3000/ login). Pack Measurements Battery Measurements Pack Current...
-
Page 17: Battery Operation
BMS]: BMS has detected cell temperature Over-temperature / over-current outside of our operation window of MAX 55°C. Charge or discharge will be disabled Yellow until cell temperature reduces. Over-voltage / under-voltage PowerPlus Energy Pty Ltd 12/05/2023 | V7.7 page 17 of 24... -
Page 18: Battery Shut Down
Flip the switch on circuit breaker to the left LiFe 4833P 63A DC Circuit 63A DC Circuit LED Indicator Light LED Indicator Light Breaker Will illuminate when Breaker Will turn off circuit breaker is on PowerPlus Energy Pty Ltd 12/05/2023 | V7.7 page 18 of 24... - Page 19 3. Ascertain from PCE manufacture the accuracy of the SoC calculator. If a higher more accurate shunt can be used with the PCE to monitor system SoC, then this should considered. PowerPlus Energy Pty Ltd 12/05/2023 | V7.7 page 19 of 24...
-
Page 20: Troubleshooting
2. Cold Start dongle 30 seconds. 4. Turn on battery/s via DC circuit breaker. 5. Wait for battery Main Status LED to illuminate. 6. Connect and turn on site PCE. PowerPlus Energy Pty Ltd 12/05/2023 | V7.7 page 20 of 24... -
Page 21: Maintenance
3. Check DC Charger is set to battery Nominal battery module. Voltage specified in the this manual (see specification). 4. Plug in PowerPlus Energy cold start dongle, use lower RJ45 port located in the lower left of the battery front cover. 8. Maintenance The battery does not require maintenance itself, however as part of your overall system maintenance schedule it is recommended that the following checks are carried out. -
Page 22: Upgrading Battery Capacity
0.2V of each other. Charge complete battery advised by PowerPlus Energy. up and maintain our recommended continuous charge Before adding the new battery the original battery voltage until battery has reached float. -
Page 23: End Of Life
11. End of Life When a PowerPlus Energy battery is removed from service it can be returned to PowerPlus Energy for recycling. Due to the stability and longevity of LFP cylindrical cells, returned batteries will be refurbished and checked so... - Page 24 PowerPlus Energy Pty Ltd 2 Koornang Road Scoresby, Vic, 3179 Australia +61 3 8797 5557 info@powerplus-energy.com.au powerplus-energy.com.au...
