LiFe Premium P Series Lithium Battery
Installation and Operation
Residential
LiFe Premium P Series Installation
Manual
+61 3 8797 5557 | info@powerplus-energy.com.au | Building 21-25, 885 Mountain Hwy, Bayswater Vic 3153 |
Manual
Commercial
V 6.0
Industrial
powerplus-energy.com.au
Utilities and
Telecom
Page
1
of
30
Advertisement
Table of Contents
Related Manuals for PowerPlus Energy LiFe Premium P Series
Summary of Contents for PowerPlus Energy LiFe Premium P Series

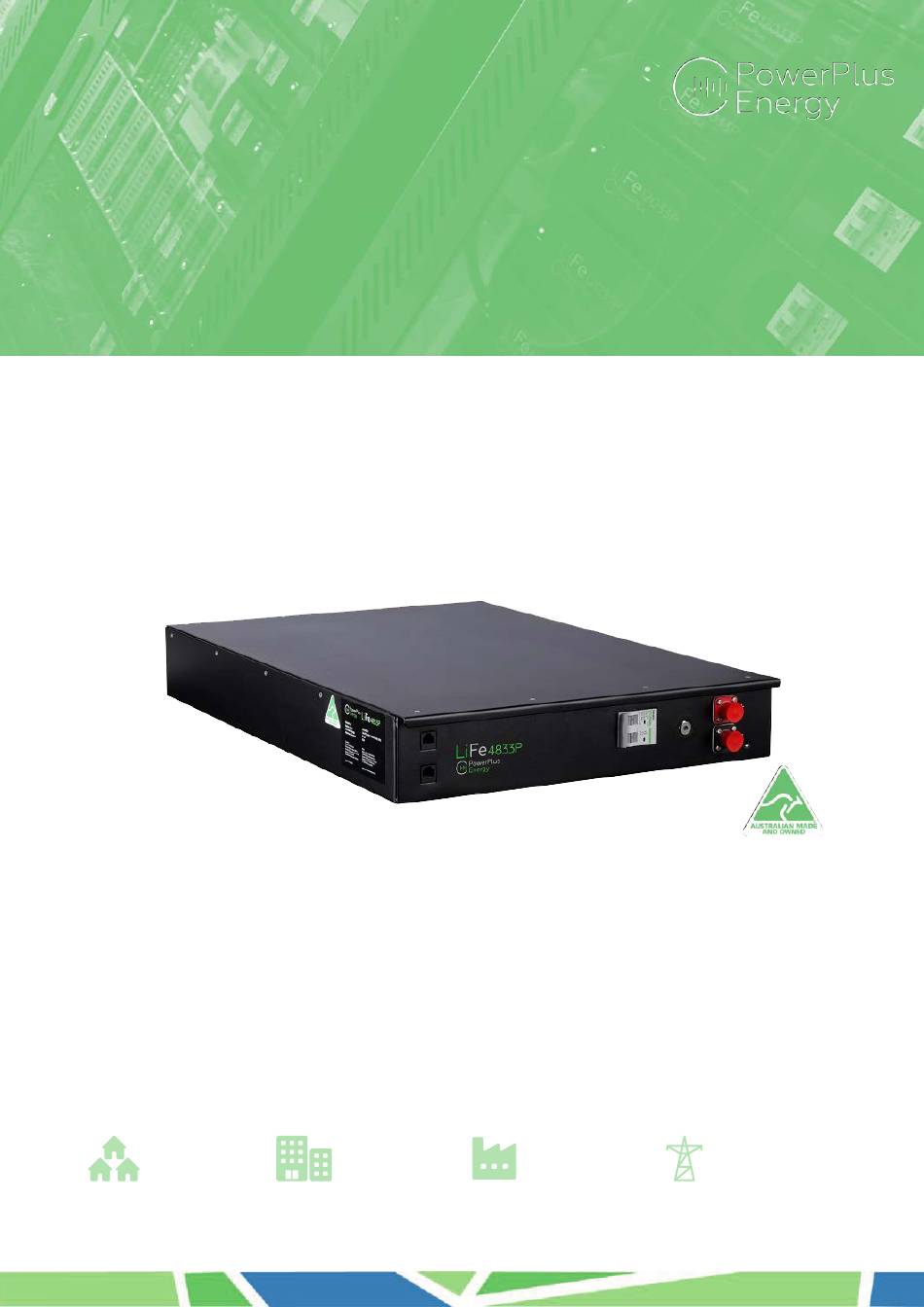

- Page 1 LiFe Premium P Series Lithium Battery Installation and Operation Manual Utilities and Residential Commercial Industrial Telecom LiFe Premium P Series Installation Manual Page V 6.0 +61 3 8797 5557 | info@powerplus-energy.com.au | Building 21-25, 885 Mountain Hwy, Bayswater Vic 3153 |...
-
Page 2: Introduction
Australia for the world’s harshest conditions to be a simple, flexible and reliable energy storage solution. As a result, the LiFe Premium P Series batteries can be easily installed with most Inverter and charger combinations, UPS, rectifiers, DC or AC coupled charging devices, on-grid and off-grid in single, dual or three phase applications. -
Page 3: Table Of Contents
PEW3 & PEW4 Installation PEF6W-250B Installation PEF9W-250 Installation Battery Operation Main Status LED BMS Status LED Full Recharge Upon First Installation Trouble Shooting Maintenance Upgrading Battery Capacity Capacity Testing Battery End of Life Warranty LiFe Premium P Series Installation Manual Page V 6.0... -
Page 4: Safety
Installers and users are responsible for familiarising themselves with this manual. The LiFe Premium P Series batteries use high grade cylindrical Lithium Ferro Phosphate (LFP) cells which are robust and reliable in higher ambient temperatures, have a long service life and with no heavy metals and are fully recyclable. -
Page 5: Basic Safety
• The battery is non user serviceable and should not be opened for repair. • Do not use the battery if it appears damaged or broken. • Handle battery with care when installing or transporting. • Do not use chemicals to clean the battery. LiFe Premium P Series Installation Manual Page V 6.0... -
Page 6: Damaged Battery
Damaged Battery A damaged battery should not be used and should be returned to the PowerPlus Energy or disposed of via a recycling facility. Leaking electrolyte can cause skin irruption and chemical burns so contact should be avoided. Eye Contact: Rinse gently with running water and seek medical attention if irritation develops. -
Page 7: Product Information
Weight and Dimensions LiFe2433P LiFe4833P LiFe12033P LiFe4822P Depth 635mm 635mm 635mm 420mm Width 434mm 434mm 434mm 434mm Height 88mm 88mm 88mm 88mm Weight 41kg 41kg 41kg 30kg LiFe Premium P Series Installation Manual Page V 6.0... -
Page 8: Specifications
Normally closed, Volt free, 1A maximum Battery Performance Communications N/A - See ‘PS’ range data via PowerLink Data device. Pending IEC: Pending IEC: Pending IEC: IEC: 62619:2017, Certifications 62619:2017, UN38.3, 62619:2017, UN38.3, 62619:2017, UN38.3, UN38.3, EMC LiFe Premium P Series Installation Manual Page V 6.0... -
Page 9: Charging And Discharging
Warranty Refer Warranty document for warranty duration, installation, usage and maintenance requirements In our efforts towards constant product enhancement this specification is subject to change to at Note anytime without notice LiFe Premium P Series Installation Manual Page V 6.0... -
Page 10: Charging Curves
Charging Curves LiFe Premium P Series Installation Manual Page V 6.0... -
Page 11: Discharging Curves
Discharging Curves LiFe Premium P Series Installation Manual Page V 6.0... -
Page 12: State Of Charge Vs Voltage
129.25 25.83V 51.65 129.13 25.75V 51.50 128.75 25.66V 51.32 128.30 25.58V 51.15 127.88 25.50V 51.00 127.50 25.38V 50.75 126.88 25.25V 50.50 126.25 25.10V 50.20 125.50 24.75V 49.50 123.75 24.00V 48.00 120.00 LiFe Premium P Series Installation Manual Page V 6.0... -
Page 13: Circuit Breaker Characteristic
Circuit Breaker Characteristic The integrated double pole DC is dual pole and a K curve type. The table below outlines the trip times based on current. LiFe Premium P Series Installation Manual Page V 6.0... -
Page 14: Installation
• And or, the battery system to be installed in a moisture and climate controlled room (example, reverse cycle cooled). • The temperature of the cabinet should be held at a temperature above dew point at all times. LiFe Premium P Series Installation Manual Page... -
Page 15: Battery Installation
The battery has been designed to fit into a standard 800mm deep 9inch rack enclosure . The enclosure should be fitted with PowerPlus Energy’s battery rails or similar to ensure stability and correct installation. Battery rails can be sourced from you normal PowerPlus Energy place of purchase. -
Page 16: Battery Connections
Battery Connections Each battery has a positive and negative Amphenol SurLok non keyed male connector for easy snap on connection. A range of cable and mating connectors are available from you normal PowerPlus Energy place of purchase. If multiple batteries are being used in parallel, the battery cables shall all be of the same length to retain equal impedance of each battery and cable set. -
Page 17: Case Earthing
Case Earthing The LiFe battery case is floating and in most installations will not require earthing. However should your application require the case to be grounded an 5mm M6 bolts should be used. LiFe Premium P Series Installation Manual Page... -
Page 18: Battery Alarm And Communication Installation
Battery daisy chain connector lead (30cm) COM003A Battery Comms Cable (2Metre) COM020A Battery Comms Cable (5Metre) COM050A Battery Comms Cable (10Metre) COM100A Battery Comms Cable (15Metre) COM150A Description Part Number LiFe 120 data logger SmartLink LiFe Premium P Series Installation Manual Page V 6.0... -
Page 19: Data Logging Life 12033P
Pack Measurements Battery Current Pack Current Battery Voltage Pack Voltage Battery Temperature Coming Soon (implementation pending) Sate of Charge, State of Health, Throughput Energy, SNMP, CANBus, PowerLink Installation Refer PowerLink Installation Guide. LiFe Premium P Series Installation Manual Page V 6.0... -
Page 20: Powerplus Energy Battery Enclosures
PowerPlus Energy Battery Enclosures PowerPlus Energy provides a range of mounting options to make your installation simple and easy. They have been design to suit indoor and outdoor applications and to secure a rage of different battery capacities. Rack Series Enclosures The Rack Series enclosure for domestic, commercial and utility installations, allows quick and easy visualisation of battery operation. -
Page 21: Rack Series Enclosure Installation
Note: When paralleling multiple battery cabinets, battery cables from each cabinet must be the same length and cable size to ensure cabinet impedances remain the same. The use of an external busbar is highly recommended. LiFe Premium P Series Installation Manual Page... -
Page 22: Slimline Series Enclosures
SlimLine Series Enclosures PowerPlus Energy SlimLine series battery enclosures are designed to provide low profile options for mounting the LiFe and ECO series batteries. Each style is available at 300 to 400mm deep making them suitable for installation in walkways, sides of buildings and alongside industrial equipment. -
Page 23: Pew3 & Pew4 Installation
Note: When paralleling multiple battery cabinets, battery cables from each cabinet must be the same length and cable size to ensure cabinet impedances remain the same. The use of an external busbar is highly recommended. LiFe Premium P Series Installation Manual Page... -
Page 24: Pef6W-250B Installation
Note: Batteries should be loaded from the rear of the cabinet working your way to the front. This ensures the cabinet remains stable and weight is distributed closet to the wall. Supplied with PEF6. LiFe Premium P Series Installation Manual Page... -
Page 25: Pef9W-250 Installation
finally the upper shelf. • Secure the busbar assembly back in to place. • Connect corresponding Amphenol cables to batteries. LiFe Premium P Series Installation Manual Page... -
Page 26: Battery Operation
Battery is in Temperature protection mode, the BMS has detected cell temperature outside of our operation window of MAX 65°C. No Charge or discharge will be allowed BMS Status LED This LED is complimentary to our Main Status LED and is only available on the LiFe12033P. LiFe Premium P Series Installation Manual Page V 6.0... -
Page 27: Full Recharge Upon First Installation
float stage. This fist initial charge will allow the battery BMS to perform a cell balance process and ensure all cells are at the same state before regular cycling. LiFe Premium P Series Installation Manual Page... -
Page 28: Trouble Shooting
Upgrading Battery Capacity It is possible to add additional batteries to an existing LiFe Premium P Series installation at a later date. If you are to add extra capacity the battery must be of the same type, part number, and specification, unless advised by PowerPlus Energy. -
Page 29: Capacity Testing Battery
= 92.5% End of Life When a PowerPlus Energy battery is removed from service it can be returned to PowerPlus Energy for recycling. Due to the stability and longevity of LFP cylindrical cells, returned batteries will be refurbished and checked so they can be repurposed for low power applications and made available for community, education and charity projects. -
Page 30: Warranty
Warranty PowerPlus Energy will protect this product under warranty when it is installed as written in this manual and used as set out in the warranty documents. Any product not being used or installed as outlined will be in violation of the terms and will render the product void of any warranty.
