ipf electronic SL450824 Manual

SL450824
I
monitoring device for air and gases
I
integrated electronics
I
LED balancing indicator
I
stainless steel coated measuring system
I
robust PA housing
I
screw thread G ½
I
pressure resistance up to 30bar
I
M12-connector

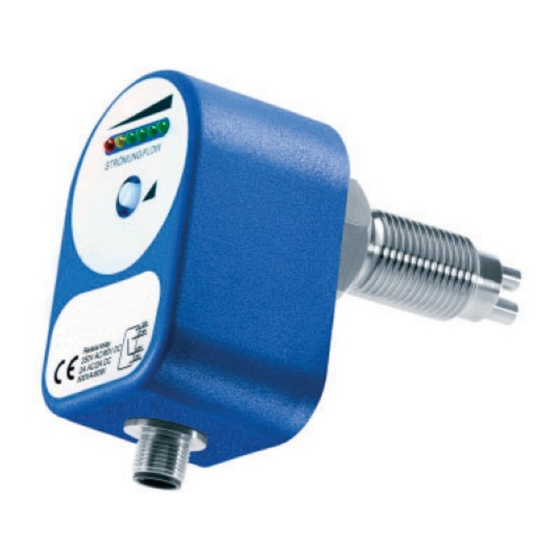

Flow sensor for air and gases
Pressure resistance up to 30 bar

TECHNICAL DATA

operating voltage
current consumption
switching output
detection range
standby time
reaction time
degree of protection
ambient temperature
temperature range of medium
temperature gradient
pressure resistance
material sensor
material housing
Connection

Mounting instructions:

When installing the sensor in the flow channel, make sure that the two measuring pins are completely immersed in
the flow. The maximum immersion depth is limited to half the channel diameter.
ipf electronic gmbh • Kalver Straße 25 - 27 • 58515 Lüdenscheid - Germany │ Tel +49 2351 9365-0 • Fax +49 2351 9365-19 │
info@ipf-electronic.com • www.ipf-electronic.com
Mounting
MANUAL [SL450824] • Subject to alteration! Version: 29.03.2019
24V DC ± 20%
current consumption 80mA
relay output, no
air / gases 0.5 to 30m/s
10 ... 90s
2 ... 30s
IP67 (DIN 40050)
-20 ... +70°C
-20 ... +80°C
20°C / min.
30 bar
V4A
PA
1
