ipf electronic SS430020 Manual

SS430020 / SS430021 / SS430022

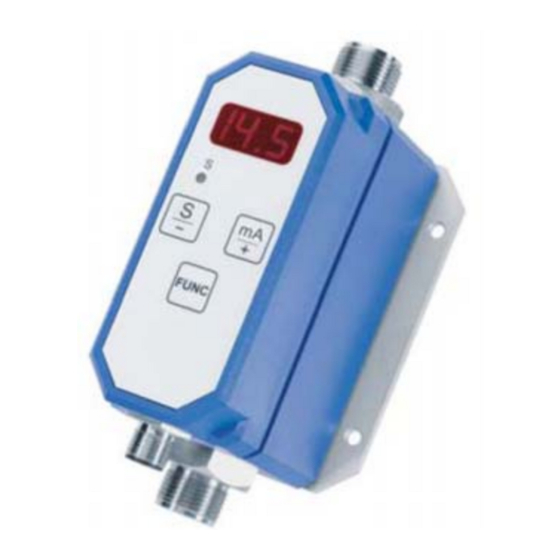

flow sensor, inline
Manual for devices with flow and temperature monitoring

Technical Data

operating voltage current
consumption (w/o load)
switching output
Analog Output
load R L
ambient temperature
medium temperature
temperature gradient
power-on time
reaction time
power-on delay time
power-off delay time
outside tube diameter Da
span SW*
operating range
adjustment range
hysteresis S
temperature monitoring
adjustment range S
hysteresis S
medium
pressure resistance
display flow rate
degree of protection
electrical connection
Connection
ipf electronic gmbh • Rosmarter Allee 14 • 58762 Altena
SS430020
Ø 10mm
19mm
1 ... 10l/min
1.2 ... 10l/min
0.2 ... 2l/min
-9 ... 90°C (if temperature selected)
1 ... 10°C (if temperature selected)
water / glycol (0, 5, 10, 15, 20, 25, 30%)
│ Tel +49 2351 9365-0 • Fax +49 2351 9365-19
MANUAL • Subject to alteration! Version: August 2016
SS430021
24V DC ± 10%
≤ 100mA
pnp, no/nc programmable
4 ... 20 mA
200 ... 500Ω
0 ... 60°C
-10 ... +90°C
400 K/min
6 ... 10s
1 ... 8s
0 ... 50s
0 ... 50s
Ø 15mm
25mm
2 ... 20l/min
2.2 ... 20l/min
0.2 ... 5l/min
-10 ... 90°C
20bar
LED 7-segment, 3-digit
IP65 acc. EN 60529
M12-connector, 4-pin
info@ipf-electronic.com • www.ipf-electronic.com
│
SS430022
Ø 18mm
30mm
4 ... 40l/min
4.2 ... 40l/min
0.2 ... 10l/min
1
