ipf electronic MW11 Series Manual

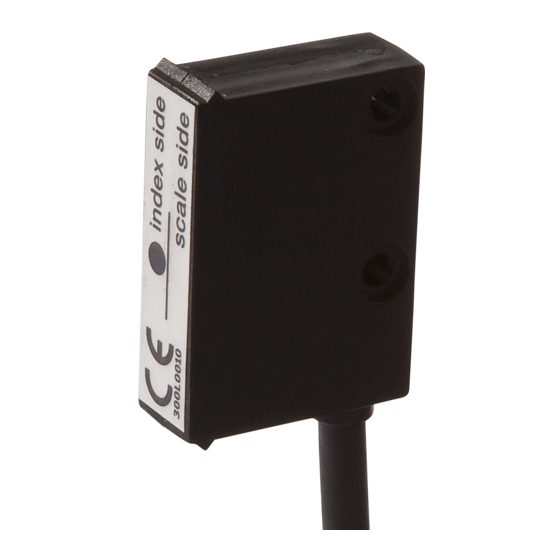

magnetic linear measurement system MW11
Table of contents

1. Warranty information

2. Identification

3. Installation
3.1 Mounting the magnetic strip 3.2
Mounting The Magnetic Sensor
4. Electrical connection
5. Maintenance
6. Trouble shooting
7. Technical data
7.1 Sensors
7.2 Magnetic strip AM000059
1. Warranty information
In order to carry out installation correctly, we strongly recommend this document is read very
carefully. This will ensure your own safety and the operating reliability of the device.
Your device has been quality controlled, tested and is ready for use. Please observe all warnings
and information which are marked either directly on the device or specified in this document.
Warranty can only be claimed for components supplied by ipf electronic gmbh. If the sys-tem is
used together with other products, there is no warranty for the complete system.
Repairs should be carried out only at our works. For further questions don't hesitate to contact
the ipf electronic gmbh.
2. Identification
Magnetic strip: The standard magnetic strip with a width of 10mm has article no. AM000059.
Magnetic sensor: The label shows the device type with article number, which clearly identi-fies
the device.
