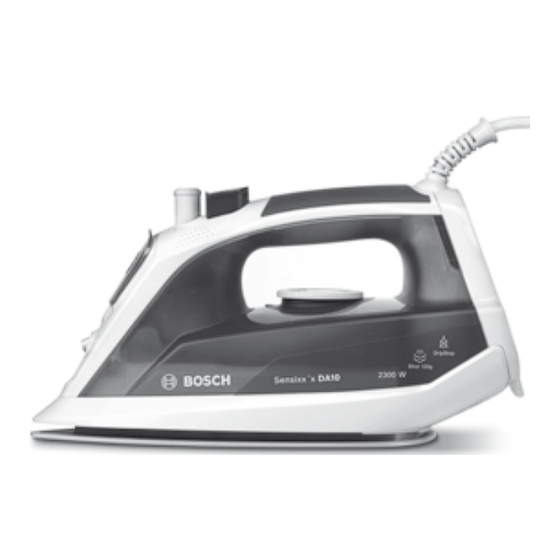

Bosch Sensixx'x DA10 Operating Instructions

Solving Minor Problems Yourself
Problem Possible Causes Solution
The iron does 1. Temperature control 1. Turn to a higher position.
not heat up. (10) set to minimum.
2. No mains supply. 2. Check with another
3. The "secure" system* 3. Move the iron gently
has been activated
(indicator light 13
flashes). The iron is set
to stand-by.
4. The "SensorSecure" 4. Grip the handle of the
system* has been
activated (indicator light
13 flashes). The iron is
set to stand-by.
The clothes 1. The temperature is too 1. Turn the temperature
tend to stick. high.
Water drips 1. Temperature control 1. Turn the temperature
out of the (10) setting is too low.
soleplate (6)
together with
steam.
2. Steam regulator (3) 2. Set the steam regulator
is set too high in
conjunction with a low
temperature.
3. You have pressed the 3. Wait 5 seconds between
shot of steam button
(2) repeatedly without
waiting for 5 seconds
between each press.
Steam does 1. Steam regulator (3) is 1. Set the steam control to
not come out. set to "0" position.
2. The temperature is too 2. Set to a higher
low. Anti-drip system is
activated.
Smoke comes 1. This may be caused by 1. This is normal and will
out when the lubrication of some
connecting of the internal parts.
the iron for the
first time.
Deposits 1. Traces of lime scale 1. Carry out a cleaning
come out are coming out of the
through the steam chamber.
holes in the
soleplate (6).
* Model dependent
If none of the above solves the problem, get in touch with an
authorised technical service.
Thank you for buying the TDA10 / TDA20 steam iron from
Bosch.
These instructions contain valuable information about the unique
features of this iron and some hints to make ironing easier for you.
Carefully read through the operating instructions for the appliance
and safeguard them for future reference.
Please visit www.bosch-home.co.uk for more product
information or to register your product, just follow the link
to the Online guarantee registration.
You can download this manual from the local homepages
of Bosch.
General safety instructions
• The iron must not be left unattended while it is
connected to the supply mains.
• Remove the plug from the socket before filling
the appliance with water or before pouring out
the remaining water after use.
• The appliance must be used and placed on a
stable surface.
• When placed on its stand, make sure that the
surface on which the stand is placed is stable.
• The iron should not be used if it has been
dropped, if there are visible signs of damage or
if it is leaking water. It must be checked by an
authorized Technical Service Centre before it
can be used again.
• With the aim of avoiding dangerous situations,
any work or repair that the appliance may need,
e.g. replacing a faulty mains cable, must only
be carried out by qualified personnel from an
Authorised Technical Service Centre.
• This appliance can be used by children aged from
8 years and above and persons with reduced
physical, sensory or mental capabilities or lack
of experience and knowledge if they have been
given supervision or instruction concerning use
of the appliance in a safe way and understand the
hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall
not be made by children without supervision.
appliance or plug the
iron into a different
socket.
from side to side to
reactivate it.
iron to re-start it.
control (10) down and
wait until the iron has
cooled down.
control to a higher
setting (between "••"
and "max") and wait until
the pilot light (11) goes
out.
to a lower setting.
each press of the jet of
steam button.
an open steam position.
temperature if
compatible with the
fabric.
stop after a few minutes.
cycle (see "Calc'nClean"
section).
• Keep the iron and its cord out of reach of
children less than 8 years of age when it is
energized or cooling down.
• C AUTION. Hot surface.
Surface is liable to get hot during use.
• This appliance is designed only for household
use up to 2000m above sea level.
Important notices
• This appliance has been designed exclusively for domestic use
and must not be used for industrial purposes.
• This appliance reaches high temperatures and produces steam
during use, this could cause scalds or burns in case of improper
use.
- Do not touch the soleplate! Hold the iron by its handle.
- Do not leave the power cable hanging over the table or ironing
board, to prevent the appliance from falling.
- Do not iron clothing while it is being worn!
- Never spray or aim the steam at persons or animals!
• Do not allow the power cable to come into contact with sharp
edges or with the soleplate when it is hot.
• Never rest the iron in a horizontal position when the soleplate
is hot. Rest it on its heel.
• Do not touch the appliance with wet hands when in operation.
• This appliance is to be connected and used in accordance with
the information stated on its characteristics plate.
• This appliance must be connected to an earthed socket. If it is
absolutely necessary to use an extension cable, make sure that
it is suitable for 16A and has a socket with an earth connection.
• In order to avoid that, under unfavourable mains conditions,
phenomena like transient voltage drops or lighting fluctuations
can happen, it is recommended that the iron is connected to a
power supply system with a maximum impedance of 0.26Ω. If
necessary, the user can ask the public power supply company
for the system impedance at the interface point.
• The appliance must never be placed directly under the tap to
fill the water tank.
• Unplug the appliance from the mains supply after each use, or
if a fault is suspected.
• The electrical plug must not be removed from the socket by
pulling the cable.
• Never immerse the iron in water or any other fluid.
Customer Service
Great Britain
Bosch Customer Service
Grand Union House
Old Wolverton Road Milton Keynes
MK12 5PT
UK +44 (0)344 892 8979
IRL +353 (0)1450 2655
www.bosch-home.co.uk
003 Sensixx'x DA10 / DA20 GB /07/15
9001011875
Register your new Bosch now:
http://www.bosch-home.co.uk
Sensixx'x DA10 / DA20
en Operating instructions
• Do not leave the appliance exposed to weather conditions (rain,
sun, frost, etc.).
• If the safety fuse fitted in the appliance blows, the appliance
will be rendered inoperative. To restore normal operation the
appliance will have to be taken to an authorised Technical
Service Centre.
Tips to help you save energy
Steam production consumes the most energy. To help minimise
the energy used, follow the advice below:
• Regulate the steam according to the selected ironing
temperature, following the instructions in this manual.
• Try to Iron the fabrics while they are still damp and reduce the
steam setting. Steam will be generated from the fabrics rather
than the iron. If you tumble dry your fabrics before ironing them,
set the tumble drier on the 'iron dry' programme.
• Stand the iron upright during pauses. Resting it horizontally with
the steam regulator on generates wasted steam.
GUARANTEE TERMS
The terms of the guarantee for this appliance are in accordance
with that stated by our representative for the country in which
it is sold. Details of those conditions can be obtained from the
retailer from whom the appliance was purchased. The SALES
RECEIPT must be presented when making any claims against the
terms of this guarantee. We reserve the right to make technical
modifications.
Advice on disposal
Our goods come in optimised packaging. This basically consists in
using non-contaminating materials which should be handed over
to the local waste disposal service as secondary raw materials.
Your local town council can give you information about how to
dispose of obsolete appliances.
This appliance is labelled in accordance with
European Directive 2012/19/EU concerning used
electrical and electronic appliances (waste
electrical and electronic equipment -WEEE).
The guideline determines the framework for
the return and recycling of used appliances as applicable
throughout the EU.
