Rubidium Series
TIMING SOLUTIONS
RUB XV-I
IRIG-B Reader
Programmable GPI Inputs/Outputs
Option "I"
Version: 1.3
December 2, 2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rubidium Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Plura Rubidium Series

  • Page 1 Rubidium Series TIMING SOLUTIONS RUB XV-I IRIG-B Reader Programmable GPI Inputs/Outputs Option “I” Version: 1.3 December 2, 2020...
  • Page 3: Table Of Contents

    Option “I” IRIG-B Reader Page 3 CONTENTS REVISION HISTORY COPYRIGHT GENERAL REMARKS HARDWARE ADDITIONAL BOARD CONNECTIONS SPECIFICATIONS FUNCTIONS IRIG-B READER IRIG-B INSERTER TC_LINK STATUS MONITOR...
  • Page 4: A1 Revision History

    Re-formatted in new design. Copyright Copyright © Plura Europe GmbH 2016-2019. All rights reserved. No part of this publication may be reproduced, translated into another language, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise without the prior written consent of Plura Europe GmbH.
  • Page 5: Hardware

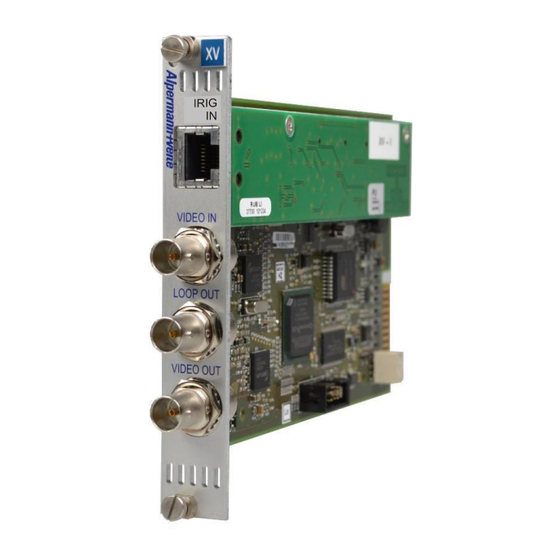

    Option “I” IRIG-B Reader Page 5 Hardware 1.1 Additional Board Option “I“ requires assembling an additional board. The rear plate of the module receives a RJ45 jack additionally. This board can be assembled for RUB1 as well as for RUB3 versions of XV. 8..1 Alpermann+Velte...
  • Page 6: Connections

    Page 6 Option “I” IRIG-B Reader 1.2 Connections Pin assignments IRIG IN 1: GPI_1 RJ45 jack 2: GPI_2 3: IRIG_IN_A 6: IRIG_IN_B 4: GND 5: do not connect 7: GPI_3 8: GPI_4 Signal descriptions Signal ground. IRIG_IN_A IRIG-B (Time Code) input. IRIG_IN_B Unbalanced IRIG-B Balanced IRIG-B...
  • Page 7: Specifications

    Option “I” IRIG-B Reader Page 7 1.3 Specifications IRIG-B Input IRIG-B: Amplitude modulated 1 kHz carrier signal, balanced. Supported Formats IRIG-B 123 or IRIG-B 127 according to IRIG STANDARD 200-04; AFNOR time code according to AFNOR NF S 87-500. Connector RJ45: Signals IRIG_IN_A/IRIG_IN_B Input Balanced or unbalanced signals...
  • Page 8: Functions

    Page 8 Option “I” IRIG-B Reader Functions 2.1 IRIG-B Reader Option “I“ adds IRIG-B reader functionality to the module: • Read IRIG-B and visibly insert time and user data. At the IRIG Read / GPI page of the configuration tool, three formats can be selected. Please select according to the format of the input signal.
  • Page 9: Irig-B Inserter

    Option “I” IRIG-B Reader Page 9 2.2 IRIG-B Inserter Option “I” enables to insert values from the IRIG-B reader visible to video. The module has to receive the following set-up at the Insert page: “Source = IRIG-B“ “Format = IRIG-B“ Data will be displayed in the following format: 208 : 10 : 59 : 28 : 96 Day of...
  • Page 10: Tc_Link

    Page 10 Option “I” IRIG-B Reader 2.3 TC_Link IRIG-B data can be distributed to other video inserters over TC_Link. This allows to insert the same IRIG-B code to different video streams. If another video module like XV receives IRIG-B data over TC_Link it will use it as its IRIG-B data source for the IRIG-B inserter.
  • Page 11: Status Monitor

    Option “I” IRIG-B Reader Page 11 2.4 Status Monitor The function of the IRIG-B reader can be monitored in the “Status Monitor”. On “System” page in “IRIG Reader” box it shows current time and (if an IRIG format with date was selected) current date.
  • Page 12: Gpi

    Page 12 Option “I” IRIG-B Reader 2.5 GPI Option “I“ adds GPI functionality to the module. Set-up regarding GPI functions works same way as provided for XT modules. • The configuration tool enables the IRIG READ / GPI function to assign functions to the GPI ports.
  • Page 14 Contact Us U.S.A. Corporate Offices: Plura Broadcast, Inc. Ph: +1-602-944-1044 Sales@plurainc.com GERMANY Plura Europe GmbH Ph: +49-6725-918006-70 Sales@plurainc.com Plura MEA U.A.E. Ph: +971-50-715-9625 Sales@plurainc.com S. KOREA Plura Asia Ph: +82-10-6688-8826 Sales@plurainc.com...
