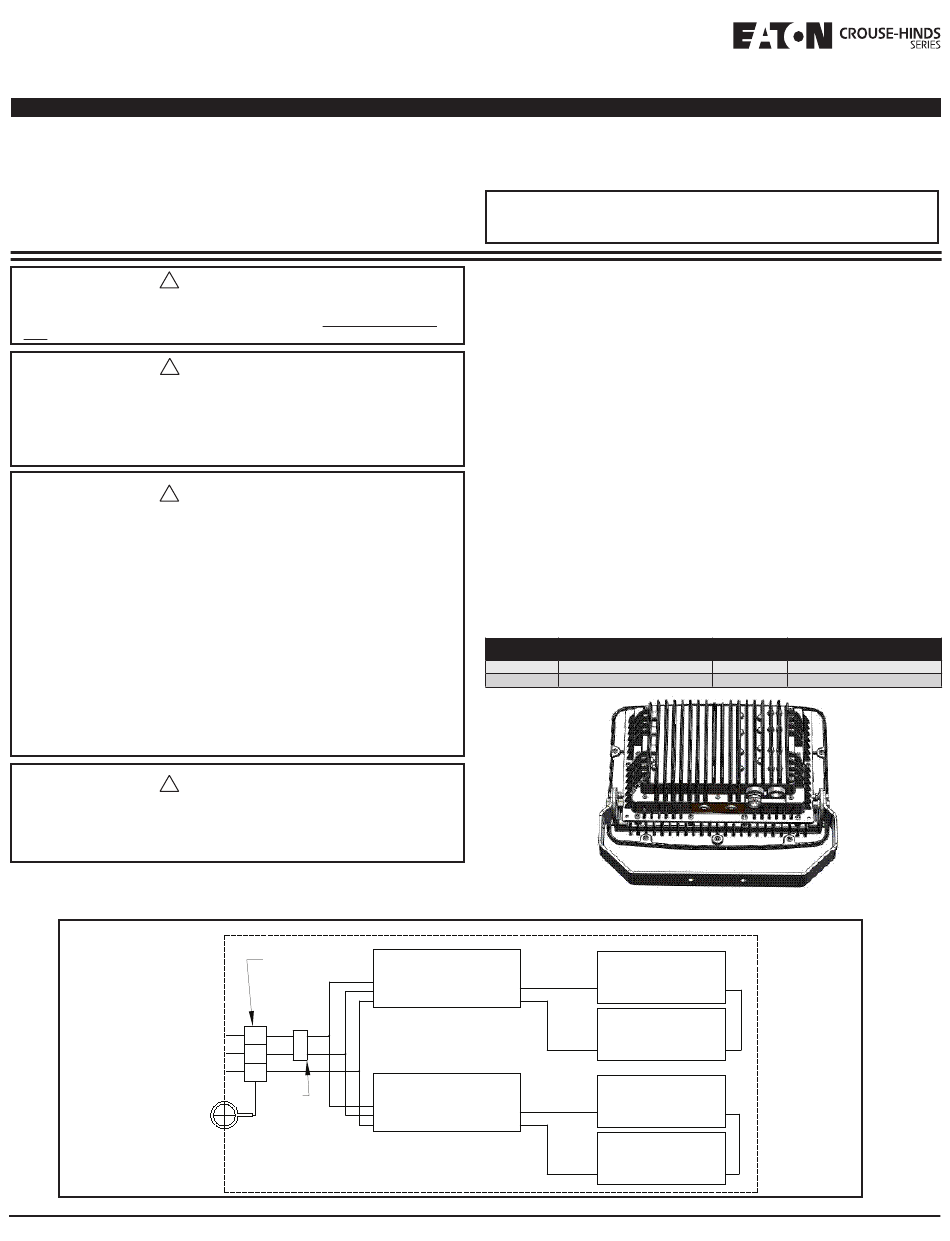

Eaton Crouse-Hinds nPFM Series Installation & Maintenance Information

Pro-Flood LED Floodlight

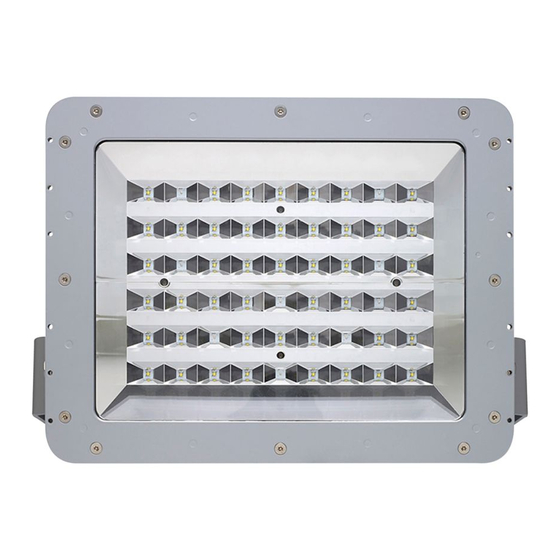

nPFM Series 25L Industrial LED Floodlight
Installation & Maintenance Information
APPLICATION
Pro-Flood LED Floodlights construction is designed for use indoors and
outdoors in marine and wet locations, where moisture, dirt, corrosion,
vibration and rough usage may be present.
• IEC 60598-1 and IEC 60598-2-1
• Wet Locations
• IP66
!
WARNING
To avoid the risk of fire, explosion, or electric shock, this product
should be installed, inspected, and maintained by a qualified electrician
only, in accordance with all applicable electrical codes.
!
WARNING
To avoid electric shock:
Be certain electrical power is OFF before and during installation and
maintenance.
To avoid burning hands:
Make sure lens and housing are cool when performing maintenance.
!
WARNING
To avoid potentially unsafe operating conditions:
Before opening, electrical power to the floodlight must be turned off.
Keep tightly closed when in operation.
Make sure the supply voltage is within the floodlight voltage range stated
on the nameplate.
Do not operate in ambient temperatures above those indicated on the
floodlight nameplate.
Use only replacement parts from Eaton's Crouse-Hinds Business.
Use proper supply wiring as specified on the floodlight nameplate.
All gasket seals must be clean, and properly positioned.
Do not position the floodlight beyond the aiming range limits.
Do not exceed the maximum allowable current draw of 15 Amps when
daisy chaining floodlights, (S886 configuration only).
!
WARNING
To avoid potentially unsafe harm to eyes:
Mount at a minimum recommended height of 20ft (6m) - 7x6 optic,
60ft - 3x3 optic.
LINE IN (BLK)
NEUTRAL (WHT)
GROUND (GRN)
IF 1684 • 04/22
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE
TERMINAL
INPUT
BLOCK OR
LEVER
LINE IN (BLK)
LOCKS NEUTRAL (WHT)
GROUND (GRN)
INPUT
FILTER
LINE IN (BLK)
NEUTRAL (WHT)
GROUND (GRN)
GROUND TO
HOUSING
Figure 2 - Wiring Diagram
Copyright © 2022, Eaton's Crouse-Hinds Division
Pro-Flood LED Floodlights are supplied for use with a choice of voltages:
• 100VAC – 277VAC, 50/60Hz and 108VDC – 250VDC
• 277VAC - 480VAC, 50/60Hz
This product contains a light source of energy efficiency class D or E.
INSTALLATION
Mounting
YOKE MOUNT - POST MOUNT USING FLOODLIGHT YOKE ONLY
1. Select a durable, corrosion resistant mounting surface capable of
supporting the fixture's 50 lb (22.7 kg) weight and cantilevered mass (as
applicable).
2. Using the floodlight yoke as a template, mark and drill desired location on
mounting surface.
3. Secure floodlight yoke to mounting surface by applying proper torque to
corrosion resistant 1/2inch (12mm) bolts or lag screws accompanied by
lock washers.
4. Ensure that the safety chain is securely fastened between the yoke
bracket and back cover.
WIRING
Wiring the Floodlight
1. All components in the fixture are prewired so only line in, neutral, and
ground need to be connected in the fixture to the terminals per the
wiring diagrams using methods that comply with all applicable codes.
Use supply cord with outer sheath diameter in accordance with Table 1.
Terminate the equipment grounding conductor (green) first, the common
(white) next, and finally, the line voltage (black) last. Secure all electrical
connections and wiring entry glands.
Gland Name PFM25L Ordering Suffix
CAP816604
CAP816794
HOUSING
DRIVER
OUTPUT
V+ (RED)
+
V- (BLK)
-
DRIVER
OUTPUT
V+ (RED)
+
V- (BLK)
-
Directive EU 2019/2022
Table 1
Thread Type
M20 M20 x 1.5 8.5 - 16.0 mm (0.34 - 0.62 in)
M25 M25 x 1.5 8.5 - 16.0 mm (0.34 - 0.62 in)
Figure 1
LED CIRCUIT BOARD
-
LED CIRCUIT BOARD
+
LED CIRCUIT BOARD
-
LED CIRCUIT BOARD
+
IF 1684
Cable Diameter Range
Page 1
