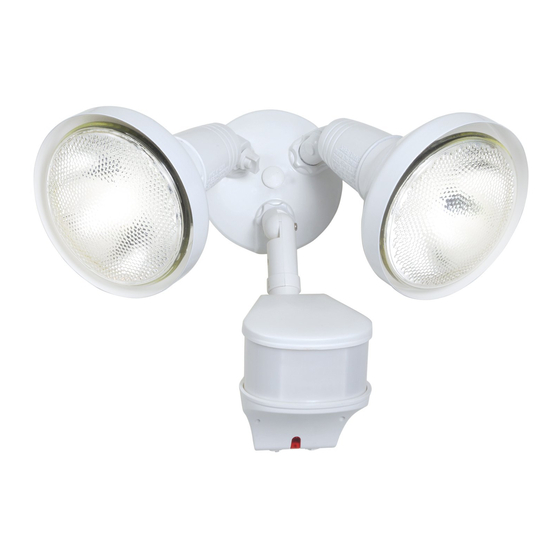

Eaton All-Pro MS276RD Instruction Manual

MS276RD (Bronze)
MS276RDW (White)
ENGLISH

ITEMS REQUIRED

(Purchase separately)
• Phillips screwdriver
• Outdoor weatherproof silicone caulking
• (2) 150 watt (MAX) PAR 38 floodlight bulbs

HOW IT WORKS

PIR does a good job of detecting lateral motion across the 270°
range of detection. Precision Plus Doppler Radar™ does an
excellent job detecting motion towards and away from the unit.
Both systems combined provide enhanced accuracy and complete
coverage within the detection range. Motion from any direction
will trigger your floodlight—even during hot or cold temperature
extremes.

IMPORTANT SAFETY INSTRUCTIONS

When using product, basic precautions should always be followed, including the following:
• Heed all warnings, including below warnings AND those included on product.
• Save these instructions and warnings.
• For outdoor use only.
• cULus LISTED for wet location.
• Disassembly of your fixture will void the warranty.
• Your fixture is prewired and preassembled for easy installation.
WARNING
• Read and follow these instructions.
• To reduce the risk of a burn during relamping, disconnect power supply to the unit
before relamping.
• Bulb gets HOT quickly!
• The bulb and fixture get extremely hot during use. Disconnect power and allow fixture
to cool before changing bulb or handling fixture.
• Always replace bulb with the same wattage or lower wattage than marked. Installing
a bulb of a higher wattage could create a fire hazard. Use of a higher wattage bulb
will void the warranty. (Maximum 150 watt halogen bulb.) To meet ENERGY STAR
requirements, maximum lamp wattage cannot exceed 250 watts.
CAUTION
• Connect fixture to a 120 volt, 60 Hz power source. Any other connection voids
the warranty.
• Fixture mounts to a recessed standard grounded junction box marked for use in wet
locations.

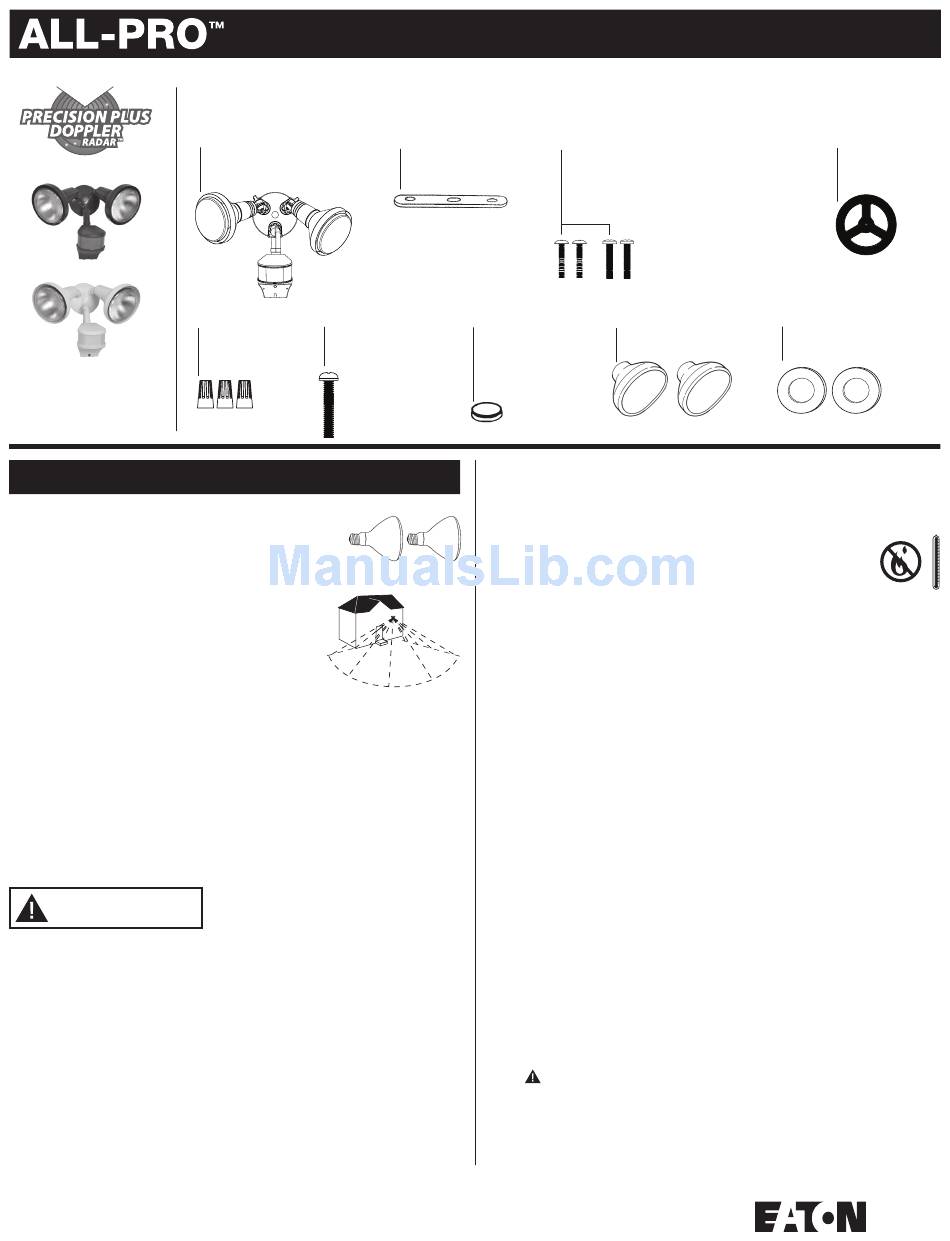

PACKAGING CONTENTS/ CONTENIDO DEL PAQUETE
A. Motion detector and light fixture
Detector de movimiento y
artefacto de luz
E. (3) Wire nuts F. Mounting plate screw
(3) Tuercas para
Tornillo para la placa
alambre de montaje
270 degrees
Questions?/ ¿Preguntas? 1-800-334-6871 ConsumerProducts@eaton.com
B. Mounting bracket C. (2) #6 and (2) #8 mounting screws
(use the size that fits your junction box)
Soporte de montaje
(2) Tornillos #6 y (2) tornillos #8 de montaje
(utilice el tamaño que mejor se adecue
a su caja de conexión)
G. Color-matched
center hole plug
Tapón para agujero
central de color
coincidente
• Fixture should be installed by persons with experience in household wiring or by a
qualified electrician. The electrical system, and the method of electrically connecting
the fixture to it, must be in accordance with the National Electrical Code and local
building codes.
• Do not allow sensor head to touch light housing – maintain at least 1 inch space
between fixture and sensor.
• Keep away from flammable objects. Do not position fixture within
two inches of any combustible materials.
Up to • MINIMUM 90°C SUPPLY CONDUCTORS.
90 feet
• For proper operation and protection against damage, the motion sensor head
adjustment knobs must be facing the ground.
• Do not use this apparatus near water.
• Clean only with a dry cloth.
• Do not block any ventilation openings. Install in accordance with the manufacturer's
instructions.
• Do not install near any heat sources such as radiators, heat registers, stoves or other
apparatus (including amplifiers) that produce heat.
• Only use attachments/ accessories specified by the manufacturer.
• If lens is replaced, use only tempered safety glass of equal thickness per
UL requirements.
• This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause
undesired operation. Under Part 15 of the FCC Rules, any changes or modifications to
the motion detector described in this instruction sheet that are not expressly approved
by Eaton could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
® - Consult the dealer or an experienced radio/TV technician for help.
WARNING: FCC Regulations state that any unauthorized changes or
modifications to this equipment not expressly approved by the manufacturer
could void the user's authorization to operate this equipment.
SAVE THESE INSTRUCTIONS.
1
Instruction Manual/ Instrucciones
H. (2) Light covers I. (2) Lampholder gaskets
(2) Cubiertas de las luces
D. Coverplate gasket
Junta de la placa
de cubierta
(2) Juntas para portalámpara
