Summary of Contents for VIBIA Class 2820

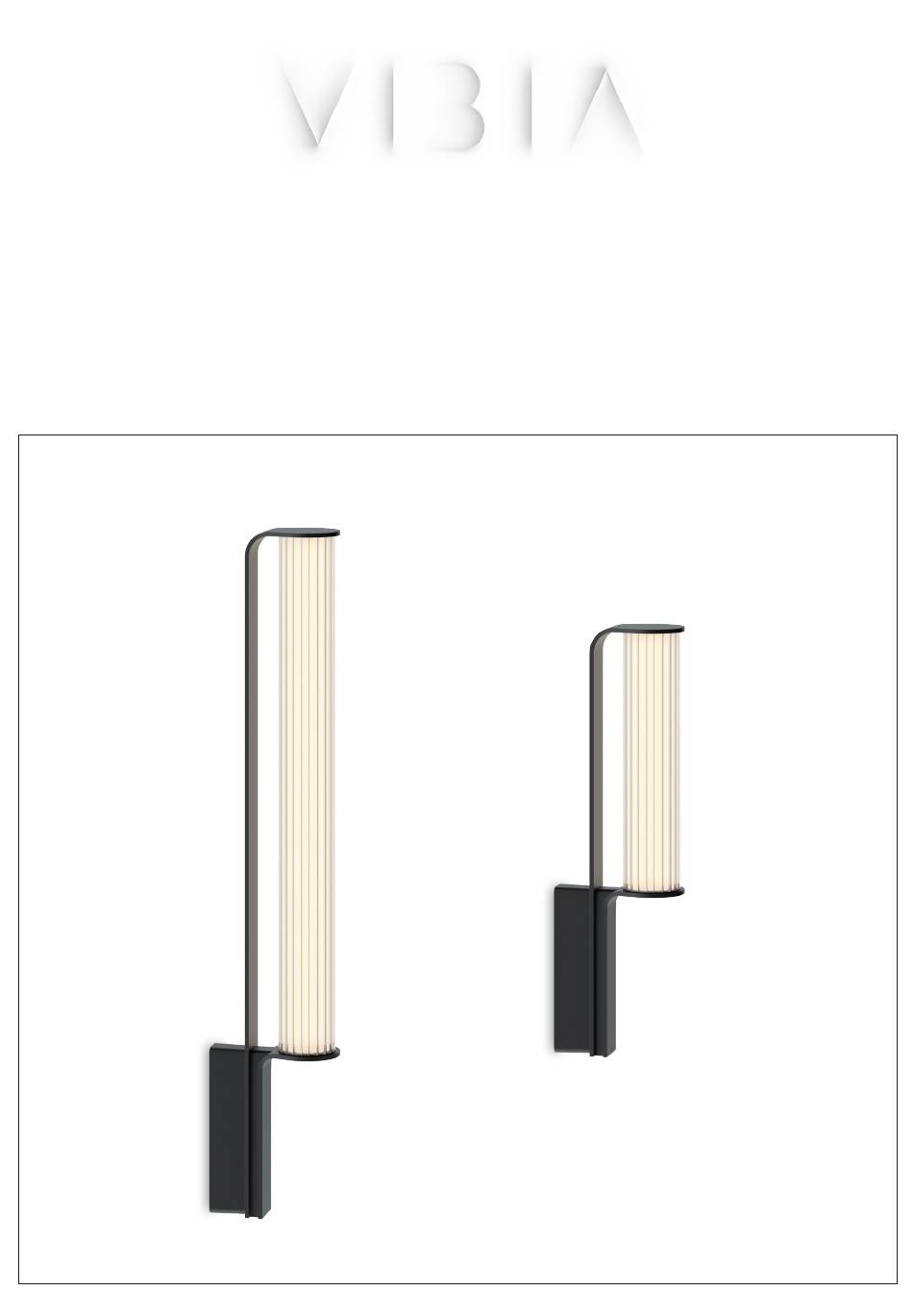

- Page 1 Assembly instructions / Instrucciones de montaje / Montageanleitung Istruzioni di montaggio / Instructions de montage Class Design by Sebastian Herkner Version E01...
- Page 2 Guardar zukünftige Fragen auf. responsabilità sarà del lire le manuel avant contact VIBIA. Any estas instrucciones montatore. de commencer - Die Leuchte nicht change or modification para futuras consultas. l'installation du...
-
Page 3: Table Of Contents
Index / Índice / Index / Indice / Index Step 1 Product Spec Sheet Step 2 Supplied Materials Step 3 Installation Preparation Step 4 Electrical Connection Step 5 Product Assembly 3/14... -
Page 4: Step 1/5
Step 1/5 Product Spec Sheet Technical specifications / Especificaciones técnicas / Technische Daten Specifiche tecniche / Caractéristiques techniques 2820 Net Weight / Peso Neto / Netto-Gewicht 2,90 kg 1 x LED 3,5W 150mA. IP65 220-240V 50/60 Hz Peso netto / Poids net 2825 Net Weight / Peso Neto / Netto-Gewicht 4,40 kg 1 x LED 7W 300mA. -
Page 5: Step 2/5
Step 2/5 Supplied Materials Supplied material / Material suministrado / Geliefertes Material Materiale incluso / Matériel fourni 2820 2825 1. Allen key / Llave allen / Inbusschlüssel / Chiave a brugola / Clé Allen 1 un. 1 un. 2. Lighting fixture / Estructura luminaria / Leuchtenstruktur / Struttura lampada / Structure du luminaire 1 un. -
Page 6: Step 3/5
Step 3/5 Installation Preparation 6/14... -
Page 7: Step 3/5
Step 3/5 Installation Preparation -Wall plugs (not supplied) -Tacos de fijación (no suministrados) -Dübel (nicht im Lieferumfang) -Tasselli di fissaggio (non inclusi) -Chevilles de fixation (non fournies) -Screws (not supplied) -Tornillos (no suministrados) -Schrauben (nicht im Lieferumfang) -Viti (non incluse) -Vis (non fournies) 7/14... -
Page 8: Electrical Connection
Step 4/5 Electrical Connection Connection with one cable Connection with two cables Ø Min. 5 mm Ø Max. 10 mm 10 mm 30 mm 5 mm 8/14... - Page 9 Step 4/5 Electrical Connection 4.3A DALI & PUSH DIMMING SYSTEM CONNECTION Connect DALI SYSTEM DIMMING PUSH SYSTEM DIMMING Refs.: Refs.: - Only for product references ending in 1 - Only for product references ending in 5 - Solo para los productos terminados en 1 - Solo para los productos terminados en 5 282011/11 282011/15...
- Page 10 Step 4/5 Electrical Connection CASAMBI CONNECTION WITH REMOTE WATERTIGHT BOX 4.3B CLOSED OPENED Max. 9 mts. of cable - Electric cable (not supplied) - Cable eléctrico (no suministrados) - Stromkabel (nicht im Lieferumfang) - Cavo elettrico (non incluse) - Câble électrique (non fournies) 220-240V CASAMBI SYSTEM DIMMING O Min.
- Page 11 Step 4/5 Electrical Connection 4.4B BLACK CLOSED OPENED C A S A M Max. 9 mts. of cable 4.5B Max. 9 mts. Ø Min. 5 mm of cable Ø Max. 10 mm - Electric cable (not supplied) - Cable eléctrico (no suministrados) - Stromkabel (nicht im Lieferumfang) - Cavo elettrico (non incluse) - Câble électrique (non fournies)
- Page 12 Step 5/5 Product Assembly Click! - Ensure gasket to prevent water seepage. - Asegurar bien la junta para evitar la entrada de agua. - Stellen Sie sicher, dass die Fuge den Wasserdurchgang verhindert. - Assicurare la guarnizione per evitare infiltrazioni d'acqua. - Assurez-vous que le joint d'étanchéité...
- Page 13 Step 5/5 Product Assembly 13/14...
- Page 14 Verbindung stata acquistata. l’avez acheté. bei dem Sie die Leuchte bezogen haben. VASELINE - VASELINA - WAZELINE Vibia Lighting, S.L.U. 7 gr. Spain & Portugal T. +34 934 796 970 International T. +34 934 796 971 customer.service@vibia.com www.vibia.com...
