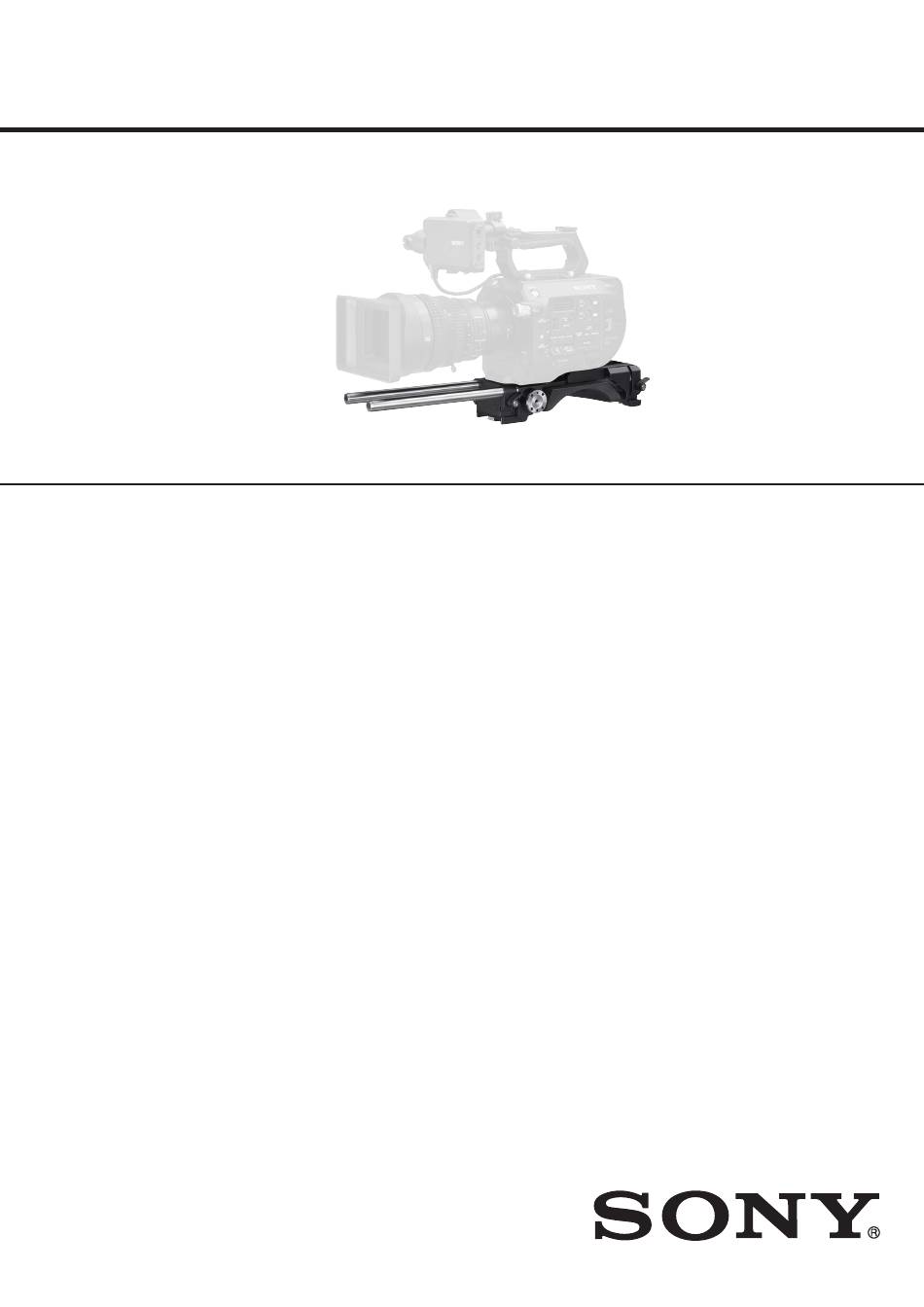

SERVICE MANUAL
Ver. 1.0 2014.11
9-896-107-01
Sony Corporation
2014K33-1
©
2014.11
Published by Sony Techno Create Corporation
Note: PXW-FS7 is not included in this unit.
SPECIFICATIONS
Dimensions (W / H / D)
Approx. 118 × 63.2 × 250 mm (4
Mass
Unit: 980 g (2 lb 2.6 oz), Rod (1): 160 g (5.6 oz)
Supplied items
Operating Instructions (2), screws (+B M3×8) (10),
screw (3/8 in.) (1) , Φ15 rods (2)
Design and specifications are subject to change without notice.
VCT-FS7
3
1
/
× 2
/
× 9
4
2

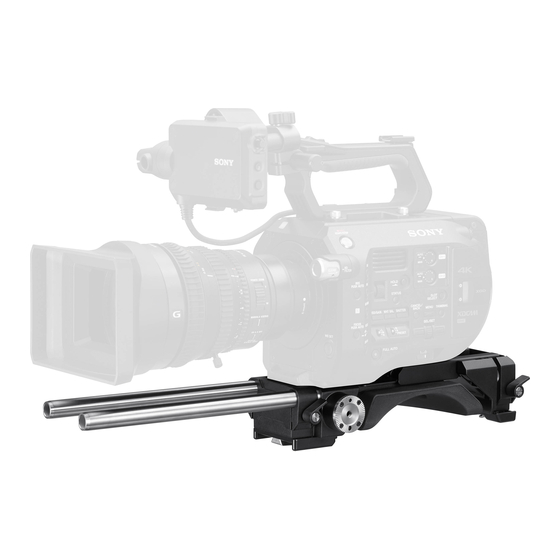

The VCT-FS7 is an accessory that attaches to Sony PXW-FS7 camcorders to
improve camera stability when shooting. Attaching the unit to the PXW-FS7 also
enables the camera to be mounted on a VCT-14/VCT-U14 tripod attachment.
LIGHT WEIGHT ROD SUPPORT
US Model
Canadian Model
AEP Model
Chinese Model
7
/
inches)
8
Advertisement
Related Manuals for Sony VCT-FS7
Summary of Contents for Sony VCT-FS7
- Page 1 (3/8 in.) (1) , Φ15 rods (2) Design and specifications are subject to change without notice. The VCT-FS7 is an accessory that attaches to Sony PXW-FS7 camcorders to improve camera stability when shooting. Attaching the unit to the PXW-FS7 also enables the camera to be mounted on a VCT-14/VCT-U14 tripod attachment.
- Page 2 VCT-FS7 SECTION 1 EXPLODED VIEW Note: • -XX and -X mean standardized parts, so • The mechanical parts with no reference they may have some difference from the number in the exploded views are not sup- original one. plied. • Items marked “*” are not stocked since •...
- Page 3 VCT-FS7 SECTION 2 ACCESSORIES Ref. No. Part No. Description Remark 4-564-777-01 MANUAL, INSTRUCTION (JAPANESE, ENGLISH, FRENCH, GERMAN) 4-564-777-11 MANUAL, INSTRUCTION (SPANISH, DUTCH, ITALIAN, PORTUGUESE, SIMPLIFIED CHINESE) 4-458-485-02 15X250 ROD (1 piece) (Φ 15 rod) 4-564-773-01 SCREW, BINDING 3/8 (Retaining screw (3/8 in.) for rear base)
- Page 4 VCT-FS7 REVISION HISTORY Checking the version allows you to jump to the revised page. Also, clicking the version at the top of the revised page allows you to jump to the next revised page. Ver. Date Description of Revision 2014.11...
