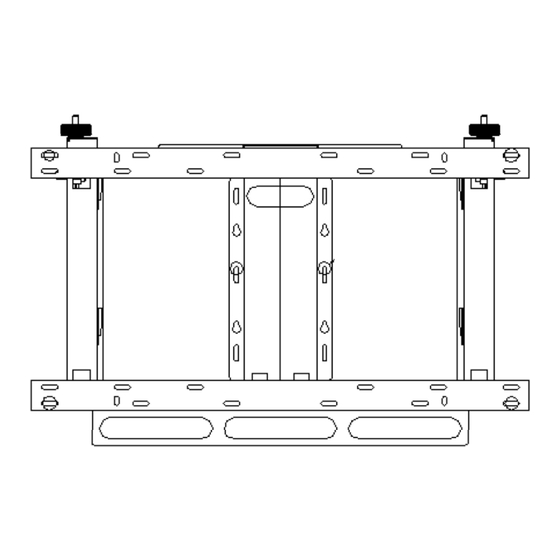

PDP Adjustable Wall-Mounted Frame
Installation Guide
How to attach TV to bracket
Assembling Step:
Step 1 : Mount brackets ( a ,b ) with six screws (three screws each) to the back of the
Plasma display.
Step 2 : Insert the screws and tighten with screw driver.
Step 3 : Hang the bracket's pothook (in all : eight) into the groove of mounting bracket.
b
a
Advertisement
Related Manuals for Philips 42MF230A
Summary of Contents for Philips 42MF230A
-
Page 1: Installation Guide
PDP Adjustable Wall-Mounted Frame Installation Guide How to attach TV to bracket Assembling Step: Step 1 : Mount brackets ( a ,b ) with six screws (three screws each) to the back of the Plasma display. Step 2 : Insert the screws and tighten with screw driver. - Page 2 How to attach bracket on the wall Step 1 : Use the eight expansion screws to fix bracket assembly onto the wall. Step 2 : Insert the screws and tighten them with the appropriate tool. wall Expansion screw Hole position Wall mounting frame Advice for mounting on the wall Use the four screws (Screws size : 60 mm in length, 6 mm in diameter) to attach the...
