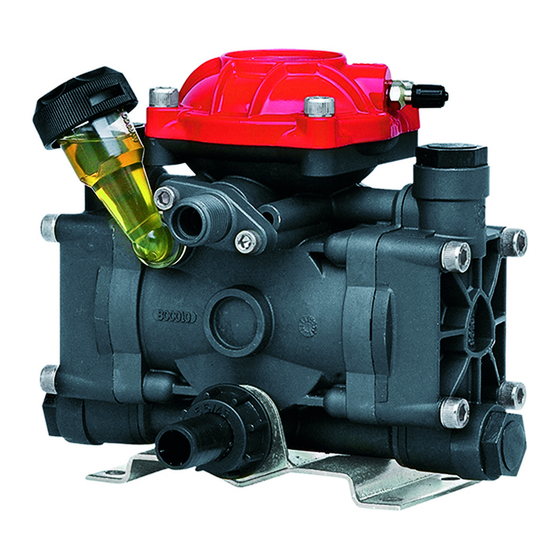

Annovi Reverberi AR 202 Instruction Manual

Hide thumbs Also See for AR 202:
Table of Contents

Advertisement

Quick Links

Download this manual
NOTICE D'UTILISATION ET INSTALLATION
BETRIEBS- UND INSTALLATIONSANLEITUNG
Dati tecnici e prestazioni - Technical and Performance Data - Données techniques et performances -
Technische Daten und Leistungsmerkmale - Datos técnicos y prestaciones
Modello
Portata max
Model
Max. flow
Modèle
Débit max.
Modell
Max. Fördermenge
Modelo
Caudal máx.
L/1'
l/min
AR 202
23,2
AR 252
24,6
Istruzioni originali
Original instructions
Notice originale
Originalanleitung
Instrucciones originales
Edizione - Edition - Édition - Ausgabe - Edición: 06/2020
MANUALE D'USO E INSTALLAZIONE
INSTRUCTION MANUAL
MANUAL DE USO E INSTALACIÓN
Pressione max
Max. pressure
Pression max.
Max. Druck
Presión máx.
gpm
bar
psi
U/min
6,1
20
290
6,5
25
362
AR 202
AR 252
N° giri max
Temperatura max
Max. rpm
Max. temperature
Nbre tours max.
Température max.
Max. Drehzahl
Max. Temperatur
R.p.m. máx.
Temperatura máx.
°C
650
60
650
60
N° codice manuale
Manual code no.
N° code de la notice
Kode der Betriebs-und
Installationsanleitung
N° código manual
Peso
Weight
Poids
Gewicht
Peso
°F
kg
lb
140
4
8,8
140
4
8,8
91407

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AR 202 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Annovi Reverberi AR 202

Summary of Contents for Annovi Reverberi AR 202

  • Page 1 AR 202 AR 252 MANUALE D’USO E INSTALLAZIONE INSTRUCTION MANUAL NOTICE D’UTILISATION ET INSTALLATION BETRIEBS- UND INSTALLATIONSANLEITUNG MANUAL DE USO E INSTALACIÓN Dati tecnici e prestazioni - Technical and Performance Data - Données techniques et performances - Technische Daten und Leistungsmerkmale - Datos técnicos y prestaciones...

  • Page 2: Table Of Contents

    CONTENTS GENERAL INFORMATION ........................... 22 TECHNICAL INFORMATION ........................24 SAFETY INFORMATION ..........................27 HANDLING AND TRANSPORT INSTRUCTIONS ................... 28 INSTALLATION INSTRUCTIONS ........................ 29 INSTRUCTIONS FOR USE ..........................32 MAINTENANCE INSTRUCTIONS ....................... 33 TROUBLESHOOTING ............................ 37 WARRANTY CONDITIONS............................95 INDEX OF CONTENTS After-Sales service procedures .........23 Residual risks ..............25 Annexed documentation ..........23...

  • Page 3: General Information

    D) Maximum delivery rate (l/min) E) Maximum operating pressure (bar) F) Maximum rpm G) Lubricant specifications H) Pump code: Manufacturer's name and address Annovi Reverberi Spa Via Martin Luther King, 3 41122 Modena (MO) - Italy English language Use and Installation...

  • Page 4: After-Sales Service Procedures

    GENERAL INFORMATION After-Sales service procedures To request after-sales service (in the event of a pump malfunction or failure, etc.) contact your nearest service centre or the manufacturer. When requesting after-sales services, always state the pump's data plate data and the type of problem. Disclaimer The manufacturer accepts no liability arising from: - incorrect installation;...

  • Page 5: Technical Information

    TECHNICAL INFORMATION General description The pump is designed and constructed to pump and compress liquids on spraying machines for the protective treatment of agricultural crops and garden plants. The pump incorporates radial pistons which actuate the diaphragms by means of an oil cushion. The dia- phragms are connected to the pistons in their middles by means of plates and secured at the edges between the cylinder liner and head.

  • Page 6: Residual Risks

    TECHNICAL INFORMATION Intended uses The pump is designed and constructed for incorporation in plants and machinery (spraying machines for the protective treatment of agricultural crops and garden plants). All other uses constitute misuse unless ap- proved by the manufacturer's technical service The pump must be used in a manner appropriate to its technical data (see “Technical Data”), and must not be modified or improperly used.

  • Page 7: Declaration Of Incorporation

    Reverberi Ing. Stefano Managing Director Modena 20/03/2017 Annovi Reverberi S.p.A. Via Martin Luther King, 3 – 41122 Modena (MO) – Italia Tel. +39 059 414 411 – Fax +39 059 253 505 – E-Mail : infoar@annovireverberi.it – Web : www.annovireverberi.it...

  • Page 8: Safety Information

    SAFETY INFORMATION General safety rules Most workplace accidents and injuries are caused by carelessness and failure to comply with common sense and safety rules. In most cases, accidents can be avoided by predicting their possible causes and proceeding with the necessary care and attention.

  • Page 9: Handling And Transport Instructions

    HANDLING AND TRANSPORT INSTRUCTIONS Safety recommendations for handling and lifting Before starting the operations, organise the intended working area so that the materials can be lifted and handled in safety. Unloading, loading, handling and lifting operations must be carried out by skilled, authorised, specifi- cally trained staff.

  • Page 10: Installation Instructions

    INSTALLATION INSTRUCTIONS Installation The mechanical connection between the pump and the motive power source may be made by means of a pul- ley and belt, with a drive shaft, or through a direct flanged connection to the motive power source. The crankshaft may turn in either direction.

  • Page 11: Connection

    INSTALLATION INSTRUCTIONS General guidelines on water supply connection To operate correctly, the diaphragm pump must draw in liquids from containers at atmospheric pressure. Do not supply the pump with pressurised liquids. For continuous duty, the pump should not draw in water by gravity from containers with liquid level at heights above 3 m.

  • Page 12: Installation Diagram (Guideline)

    INSTALLATION INSTRUCTIONS Installation diagram (guideline) The following is a simplified illustration of the typical installation layout and is purely guideline. Distributor by-pass Tank Agitation Relief valve by-pass Distributor Intake lter Pump Delivery line lter UN003414-EW English language Use and Installation...

  • Page 13: Instructions For Use

    INSTRUCTIONS FOR USE Safety recommendations for use Before start-up, the operator must perform the necessary safety checks. In the event of leaks from the pressurised pipes, stop the pump at once and remove the cause of the leak. Do not operate the pump above the limits set by the manufacturer to increase its performance. Preliminary checks If the pump has a pressure accumulator, check its level of inflation, see “Checking the inflation pressure”.

  • Page 14: Maintenance Instructions

    MAINTENANCE INSTRUCTIONS Safety recommendations for maintenance Caution - Take Care Before doing any maintenance work, depressurise the water system and isolate the pump from all en- ergy sources. When the jobs are done, before restarting the pump, check that no tools, rags or other materials have been left close to moving parts or in hazardous zones.

  • Page 15: Checking The Oil Level

    MAINTENANCE INSTRUCTIONS Table of lubricants The pump is delivered complete with high-performance synthetic multigrade oil suitable for the intended ambient conditions (see “Environmental operating limits”). Inspecting the pump mounting Check that the pump's fixing screws have not become loose. If necessary, tighten them with the driving torque stated in the installation design. Inspecting the connections and pipes - Inspect the connections for leaks.

  • Page 16: Checking The Inflation Pressure

    MAINTENANCE INSTRUCTIONS Checking the inflation pressure If the pump has a pressure accumulator, check its level of inflation, with the pump at a standstill, us- ing an air gun fitted with a pressure gauge. The ac- cumulator is inflated by the manufacturer for use of the pump at its maximum pressure.

  • Page 17: Scrapping The Pump

    MAINTENANCE INSTRUCTIONS Lengthy pump lay-offs It is important to comply with the recommendations for lay-offs in the operator's manual of the machine into which the pump is incorporated. For the pump itself, at the end of pumping operations it is essential to flush out the internal circuit by pump- ing clean water.

  • Page 18: Troubleshooting

    TROUBLESHOOTING The information provided is intended to provide guidance how to deal with malfunctions which may occur during use. Some of these procedures may be carried out by skilled staff, while others have to be performed at specialised service centres since they require the use of specific equipment as well as detailed knowledge of repair opera- tions.
  • Page 19 TROUBLESHOOTING Problem Cause Remedy Oil seal on pump Replace the worn oil seal. (1) shaft worn. Oil on pump body or base. Oil pressure inside pump too high. Restore correct oil level in tank. Pump using too much oil (oil flowing from delivery port) or oil Stop the pump at once.
  • Page 20 WARRANTY CONDITIONS Annovi Reverberi S.p.A guarantees the products of its manufacture against conformity defects for a period of 12 months from the date of sale to the user customer (as proven by the fiscal sales document: receipt, invoice, etc.). Any product components considered by the manufacture, at its own absolute discretion, to have defects in material or manufacture will be repaired or replaced free of charge.
