Page 1: Table Of Contents

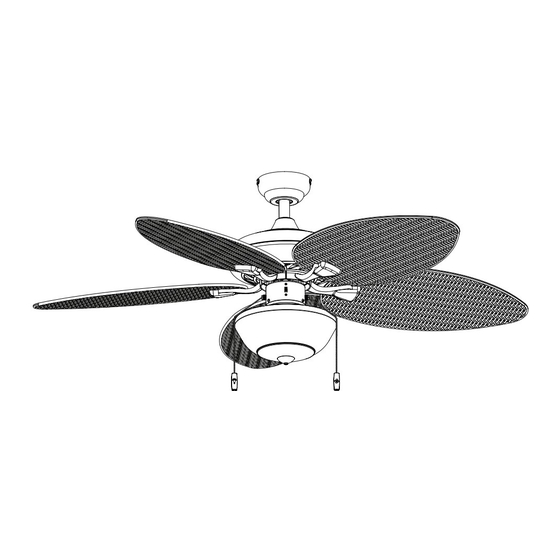

Home User Guide Inland Breeze Ceiling Fan Model #50510, 50511 INDEX Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 Hardware Contents . -
Page 2: Package Contents
PACKAGE CONTENTS Mounting Bracket Screw (x 4) Mounting Bracket Canopy Canopy Cover Downrod Downrod Clip Downrod Pin Yoke Cover Closemount Screw (x 3) Yoke Motor Assembly Switch Housing Blade (x 5) Blade Arm (x 5) Switch Housing Switch Housing Screw (x 3) Light Kit Finial Bulb (x 2) -
Page 3: Safety Information
SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or install the product . • Before you begin installing the fan, disconnect the power by removing fuses or turning off the circuit breakers. • Make sure all electrical connections comply with local codes, ordinances, the National Electrical Code and ANSI/NFPA 70-199 . -
Page 4: Preparation
PREPARATION Before beginning the assembly of this product, ensure all parts are present . Compare all parts with the package contents list and hardware contents list . If any part is missing or damaged, do not attempt to assemble the product . Estimated assembly time: 2 hours Tools required (not included): Electrical tape, Phillips Screwdriver, Safety Glasses, Step Ladder, and Wire Strippers . -
Page 5: Standard Or Angle Mount Instructions
STANDARD OR ANGLE MOUNT INSTRUCTIONS 1 . Feed the fan wires through the yoke cover, canopy and downrod (Figure 3 .1) . 2 . Partially loosen the two set screws in the yoke at the top of the motor assembly to allow for installation of the downrod . Slide the downrod into the yoke of the motor assembly . -
Page 6: Closemount Instructions
CLOSEMOUNT INSTRUCTIONS (optional) 1 . Remove the canopy cover from the bottom of the canopy (Figura 4 .1) . 2 . Remove the three Phillips-head closemount screws from the top of the motor assembly . Then align the canopy with the holes in the top of the motor assembly . - Page 7 FINAL INSTALLATION 4 . Partially insert the blade screws along with blade washer through blade and into the blade arm . Tighten each blade screw starting with the one in the middle . Repeat this step for the remaining blades and blade arms (Figura 5 . 4 ) . 5 .
-
Page 8: Installation Without Light Kit
FINAL INSTALLATION 10 . Lift the glass bowl up until the threaded rod of the light kit is visible, then install the rubber washer and hex nut to secure it . Screw the finial onto the threaded rod of the light kit (Figure 5 .10) . 11 . -
Page 9: Operating Instructions
OPERATING INSTRUCTIONS 1 . The fan pull chain has four positions to control fan speed . One pull is high, two is medium, three is low and four turns the fan off . The light pull chain has two positions to control the light, on and off (Figure 7 .1) . 2 . -
Page 10: Warranty
LIMITED LIFETIME WARRANTY Set forth below, the manufacturer, Hong Kong China Electric Appliance Company (HKC) warrants the fan motor for this ceiling fan to be free from defects in workmanship and material for the life of the product . Also, subject to the limitations below, HKC warrants all ceiling fan parts (“ceiling fan parts”...
