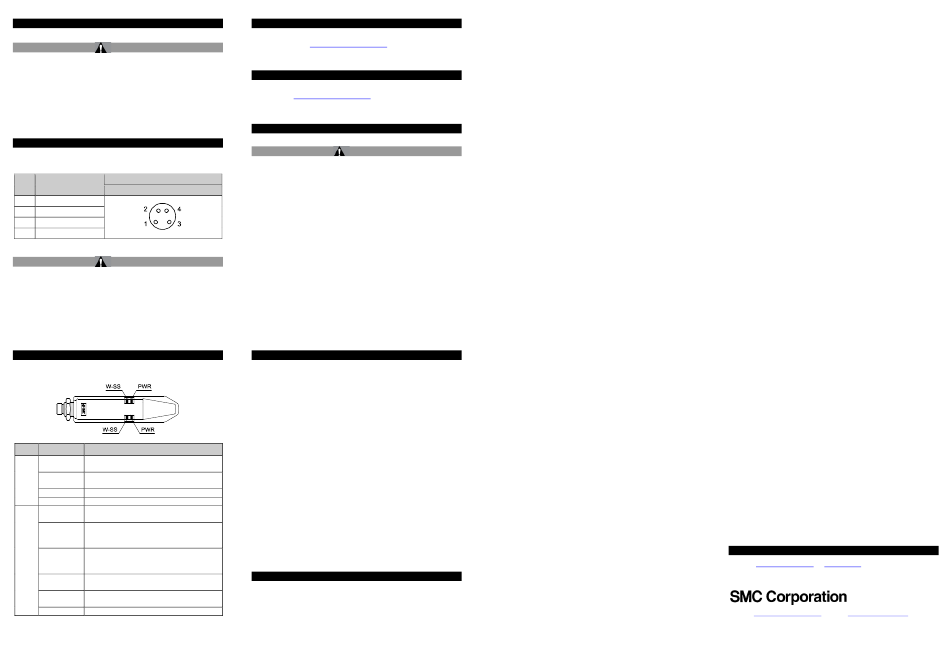

4 Installation (continued)
4.5 Environment
Warning
• Do not use in an environment where corrosive gases, chemicals, salt
water or steam are present.
• Do not use in an explosive atmosphere.
• Do not expose to direct sunlight. Use a suitable protective cover.
• Do not install in a location subject to vibration or impact in excess of
the product's specifications.
• Do not mount in a location exposed to radiant heat that would result in
temperatures in excess of the product's specifications.
5 Wiring
5.1 Wiring Connections
• Connector
M8, 4-pin, plug
No. Signal
A-coded
1 24 V (US1)
2 Internal Bus B
3 0 V (US1)
4 Internal Bus A
Caution
• The EXW1-AC1-X1 is the optional cable which should be used for
connection to the Wireless System or Air Management System.
• Radio laws require cables to be less than 3 m long, shielded and of a
twisted pair construction.
6 LED Display
• The LED indicators on the wireless adaptor indicate the power supply,
communication and diagnostic status.
LED LED Colour Operation
Green LED
US1 (for control) power supply is ON
ON
Orange LED
PWR Internal bus error is detected.
flashing
Red LED ON Unrecoverable error is detected.
OFF US1 (for control) power supply is OFF
Green LED
The level of received radio wave power is 3.
ON
Green LED
flashing The level of received radio wave power is 2.
(1 Hz)
Green LED
W-SS flashing The level of received radio wave power is 1.
(2 Hz)
Red LED No Base or Remote that support protocol
flashing V.1.0 are connected.
Orange LED No Base or Remote that support protocol
flashing V.2.0 are connected.
OFF Wireless Base or Remote is not registered.
7 How to Order
To obtain information about how to order this product, please refer to the
SMC website (URL https://www.smcworld.com).
8 Outline Dimensions (mm)
To obtain the outline dimensions for this product, please refer to the SMC
website (URL https://www.smcworld.com).
9 Maintenance
9.1 General Maintenance
Caution
• Not following proper maintenance procedures could cause the product
to malfunction and lead to equipment damage.
• If handled improperly, compressed air can be dangerous.
• Maintenance of pneumatic systems should be performed only by
qualified personnel.
• Before performing maintenance, turn off the power supply and be sure
to cut off the supply pressure. Confirm that the air is released to
atmosphere.
• After installation and maintenance, apply operating pressure and
power to the equipment and perform appropriate functional and
leakage tests to make sure the equipment is installed correctly.
• If any electrical connections are disturbed during maintenance, ensure
they are reconnected correctly and safety checks are carried out as
required to ensure continued compliance with applicable national
regulations.
• Do not make any modification to the product.
• Do not disassemble the product, unless required by installation or
maintenance instructions.
10 Limitations of Use
10.1 Limited warranty and Disclaimer/Compliance Requirements
Refer to Handling Precautions for SMC Products.
NOTE
This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial
environment.
This equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instruction manual,
may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the
interference at his own expense.
• Influence of radio frequency on implantable medical devices:
The radio frequency generated by this product may give an adverse
effect on implantable medical devices, such as implantable cardiac
pacemakers and implantable cardioverter defibrillators.
Please read catalogues or instruction manuals of the equipment and
device which may be affected by radio frequencies for any instructions
for use or contact their manufacturers.
11 Product Disposal
This product shall not be disposed of as municipal waste. Check your
local regulations and guidelines to dispose of this product correctly, in
order to reduce the impact on human health and the environment.
12 Contacts
Refer to www.smcworld.com or www.smc.eu for your local distributor /
importer.
URL: https://www.smcworld.com (Global) https://www.smceu.com
SMC Corporation, 4-14-1, Sotokanda, Chiyoda-ku, Tokyo 101-0021, Japan
Specifications are subject to change without prior notice from the manufacturer.
