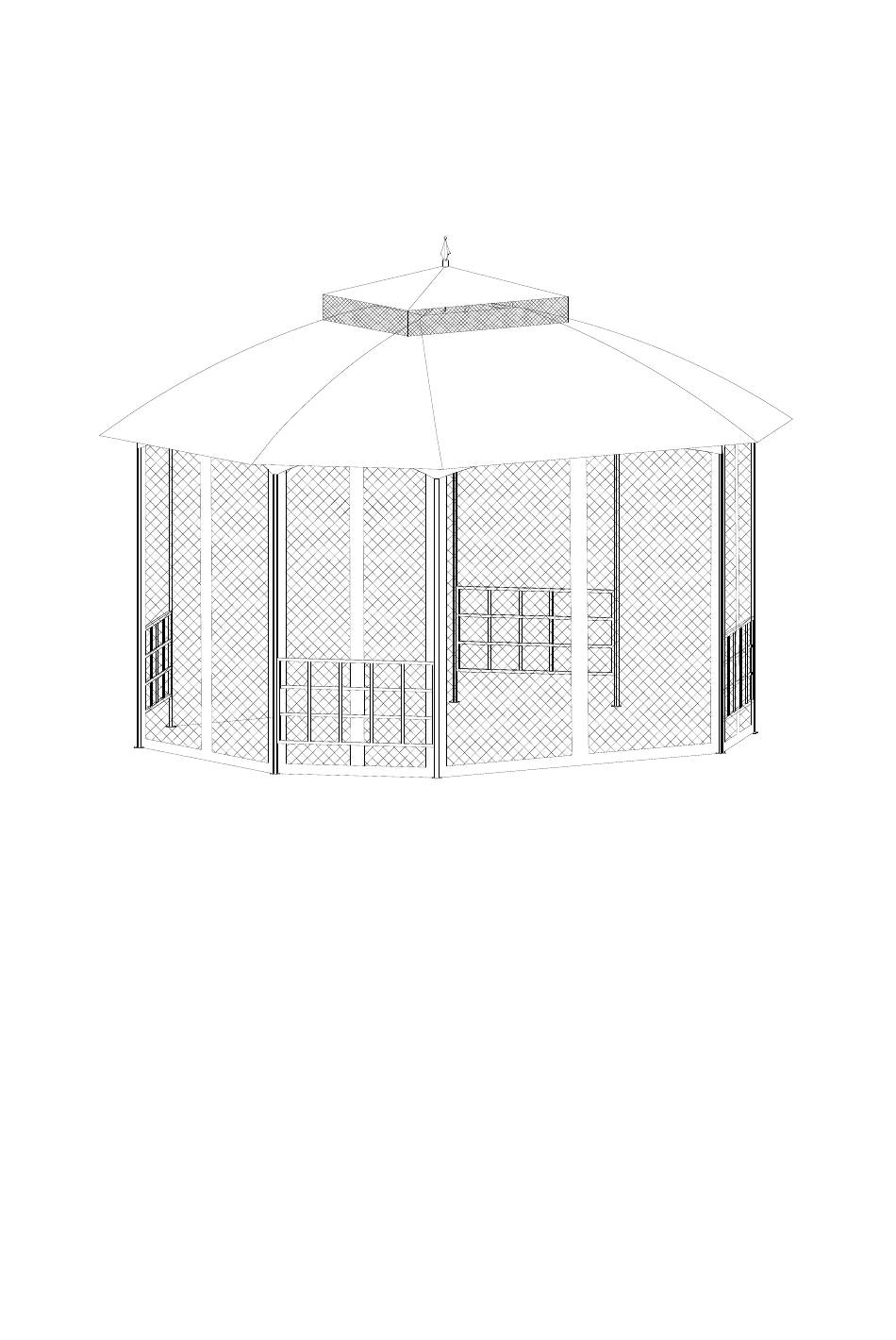

Caltalina Gazebo TV NO.:187020 WARNING: ● Keep all children and pets away from assembly area. Children and pets should be supervised when they are in the area of the Gazebo construction. ● Keep assembly area at least 6 feet from any obstruction such as a fence, garage, house, overhanging branches, laundry line, or electrical wires.
Parts List Small connector Big connector Finial Hook Connector 1 Connector 2 Slide beam 1 Slide beam 2 Corner connector Beam 1 Beam 2 Beam 3 Post 1 Post 2 Screen Small canopy Big canopy Mosquito netting...
Page 4
Fig.1: Using bolt (AA) and flat washer (BB) to assemble the beam 1(F) to the post 1 (I) or post 2 (J). Make sure the canopy holes face outside on the beam 1 (F) when secure it. Fig.2: Using bolt (CC) and flat washer (BB) to connect the screen (K) to the post 1(I) or post 2 (J).
Page 5
Fig.5: Insert the connector 2 (C2) into the big connector (A2) and attach the hook (B2) to the big connector (A2). Fig.6: Insert the slide beam 1 (D) and slide beam 2 (E) into the connector 2 (C2). Fig.7: Insert the slide beam 2 (E) into the corner connector (E1) as arrow shows and connect them by using screw (GG) and flat washer (BB).
Page 6
Hardware Pack 3 Ring 48 PCS Fig.12: Using the ring to attach the mosquito netting (N) to the beams (H,F&G).
