Gas Analysis

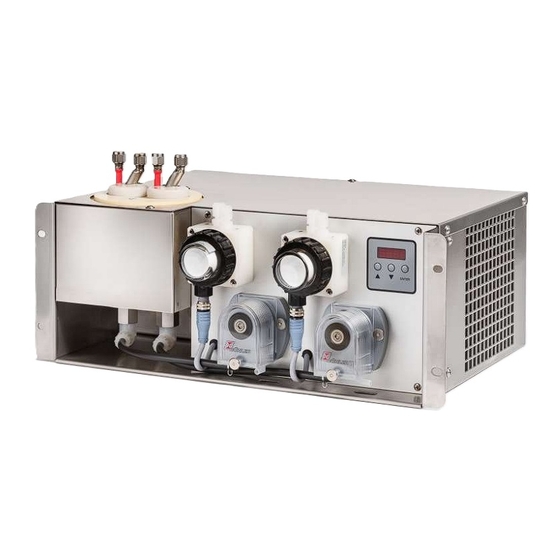

Sample gas cooler
EGK 2-19 (+)
Installation and Operation Instructions
Original instructions
BE450010
Bühler Technologies GmbH, Harkortstr. 29, D-40880 Ratingen
05/2023
Tel. +49 (0) 21 02 / 49 89-0, Fax: +49 (0) 21 02 / 49 89-20
E-Mail: analyse@buehler-technologies.com
Internet: www.buehler-technologies.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Buhler EGK 2-19
Summary of Contents for Buhler EGK 2-19
- Page 1 Gas Analysis Sample gas cooler EGK 2-19 (+) Installation and Operation Instructions Original instructions BE450010 Bühler Technologies GmbH, Harkortstr. 29, D-40880 Ratingen 05/2023 Tel. +49 (0) 21 02 / 49 89-0, Fax: +49 (0) 21 02 / 49 89-20 E-Mail: analyse@buehler-technologies.com...
- Page 2 Bühler Technologies GmbH, Harkortstr. 29, D-40880 Ratingen Tel. +49 (0) 21 02 / 49 89-0, Fax: +49 (0) 21 02 / 49 89-20 Internet: www.buehler-technologies.com E-Mail: analyse@buehler-technologies.com Read this instruction carefully prior to installation and/or use. Pay at- tention particularly to all advises and safety instructions to prevent in- juries.
-
Page 3: Table Of Contents
EGK 2-19 (+) Contents Introduction ............................................. 2 Intended use ......................................... 2 Types............................................ 2 Scope of delivery ........................................ 2 Ordering instructions...................................... 2 1.4.1 Gas cooler models with one heat exchanger .......................... 2 1.4.2 Gas cooler models with two heat exchangers .......................... 3 1.4.3... -
Page 4: Introduction
EGK 2-19 (+) 1 Introduction 1.1 Intended use This unit is intended for industrial use in gas analysis systems. It's an essential component for conditioning the sample gas to protect the analysis instrument from residual moisture in the sample gas. -
Page 5: Gas Cooler Models With Two Heat Exchangers
EGK 2-19 (+) 1.4.2 Gas cooler models with two heat exchangers The item number is a code for the configuration of your unit. Please use the following model key: X X X X X X X X 0 Product characteristic... -
Page 6: Gas Cooler Type With Two Heat Exchangers In Series
EGK 2-19 (+) 1.4.3 Gas cooler type with two heat exchangers in series The item number is a code for the configuration of your unit. Please use the following model key: X X X X X X X X 0 Product characteristic... -
Page 7: Safety Instructions
EGK 2-19 (+) 2 Safety instructions 2.1 Important advice Operation of the device is only permitted if: – the product is used under the conditions described in the installation- and operation instruction, the intended application according to the type plate and the intended use. In case of unauthorized modifications done by the user Bühler Technolo- gies GmbH can not be held responsible for any damage, –... -
Page 8: General Hazard Warnings
EGK 2-19 (+) 2.2 General hazard warnings The equipment must be installed by a professional familiar with the safety requirements and risks. Be sure to observe the safety regulations and generally applicable rules of technology relevant for the installation site. Prevent malfunctions and avoid personal injuries and property damage. -
Page 9: Transport And Storage
EGK 2-19 (+) 3 Transport and storage Only transport the product inside the original packaging or a suitable alternative. The equipment must be protected from moisture and heat when not in use. It must be stored in a covered, dry and dust-free room at a temperature of -20 °C to 60 °C (-4 °F to 140 °F). -
Page 10: Installation And Connection
EGK 2-19 (+) 4 Installation and connection 4.1 Installation site requirements The unit is only intended for use in enclosed areas in a 19” rack or wall-mounted. Adequate protection from the weather must be provided when used outdoors. Install the unit leaving enough room below the cooler to discharge the condensate. Leave room above for the gas supply. -
Page 11: Connecting The Heat Exchanger
EGK 2-19 (+) 4.2.2 Connecting the heat exchanger The picture on the left shows the schematics for connecting two separate heat exchangers. To minimise gas wash out in the cooler, the two (identical) heat exchangers must be operated in series (right picture). This should be done as follows: Gas inlet line to red gas inlet on heat exchanger 2 (pre-cooling). -
Page 12: Electrical Connections
EGK 2-19 (+) 4.3 Electrical connections The operator must install an external separator for the device which is clearly assigned to this device. This separator – must be located near the device, – must be easy for the operator to reach, –... -
Page 13: Signal Outputs
EGK 2-19 (+) 4.4 Signal outputs At the back of the unit is a 12-pin PHÖNIX connector which provides various status signals. The maximum switching power of the alarm outputs is 250 VAC/DC, 1 A each. An alarm is triggered if the temperature of the cooler is outside the specified limits. It does not indicate if the alarm was triggered due to excess temperature or insufficient temperature. -
Page 14: Operation And Control
EGK 2-19 (+) 5 Operation and control NOTICE The device must not be operated beyond its specifications. After switching on the cooler the block temperature will be displayed. The display will flash until the block temperature has reached the preset target value (± adjustable alarm range). The status contact is in the Alarm position. -
Page 15: Overview Of The Menu Items
EGK 2-19 (+) 5.1.1 Overview of the menu items Display of current temperature and operating state ____ Display ____ Displayed is the block temperature with a resolution of 0.5 °C / 0.75 °F. By pressing the Enter button brings the Current temperature display to the Main Menu. -
Page 16: Detailed Description Of The Operational Principle
EGK 2-19 (+) 5.1.2 Detailed description of the operational principle The detailed description will guide you through the menu step by step. Connect the unit to the power supply and wait for the startup procedure to complete. At first the software version im- plemented on the unit will be displayed for a brief period. -
Page 17: Submenu
EGK 2-19 (+) 5.2.2 Submenu Cooler -> nominal temperature (temperature) This setting determines the nominal temperature for the cooler temperature. The value can be set to a range from 2 °C (35.6 °F) to 20 °C (68 °F). Note: The standard value at delivery is 5 °C (41 °F) (unless otherwise agreed). If the temperature is changed the indicator may blink, until the new operating range has been reached. -
Page 18: Maintenance
EGK 2-19 (+) 6 Maintenance If the cooler is delivered in basic configuration, no special maintenance is necessary. Nevertheless, depending on the configuration different options or accessories may be installed. In this case, follow the mainten- ance schedule in regular intervals. -
Page 19: Service And Repair
EGK 2-19 (+) 7 Service and repair This chapter contains information on troubleshooting and correction should an error occur during operation. Repairs to the unit must be performed by Bühler authorised personnel. Please contact our Service Department with any questions: Tel.: +49-(0)2102-498955 or your agent... -
Page 20: Safety Instructions
EGK 2-19 (+) Error messages on the display The display alternates between the temperature and error message. Problem / Malfunction Possible cause Action Error 01 – Broken wire – Temperature sensor defective: Send in cooler Error 02 – Short circuit –... -
Page 21: Cleaning And Removal Of The Heat Exchanger
EGK 2-19 (+) CAUTION Health hazard in case of leaking cooling circuit / heat exchanger The cooling circuit is filled with coolant R134a. The heat exchanger is filled with a coolant based on glycol. In case of leaking / broken cooling circuit / heat exchanger: a) Avoid contact with skin or eyes. -
Page 22: Replacing The Hoses Of The Peristaltic Pump (Option)
EGK 2-19 (+) 7.5 Replacing the hoses of the peristaltic pump (option) – Turn off gas supply. – Switch the device off and disconnect power supply. – Remove the supplying and draining hoses from the pump (Take care of the safety instructions!). -
Page 23: Spare Parts
EGK 2-19 (+) 7.9 Spare parts Please also specify the model and serial number when ordering parts. Upgrade and expansion parts can be found in our catalog. Available spare parts: Item no. Description 9100110124 Display ABT 400 9100010125 Controller board MCP 1 9110000059 Sample gas cooler micro-fuse 230 V, 5 x 20 mm, 3.15 A, delayed action... -
Page 24: Disposal
EGK 2-19 (+) 8 Disposal The refrigerant circuit of the cooler contains R134a refrigerant. The heat exchanger is charged with glycol-based coolant. The applicable national laws must be observed when disposing of the products. Disposal must not result in a danger to health and environment. -
Page 25: Appendices
EGK 2-19 (+) 9 Appendices 9.1 Gas Cooler Technical Data EGK 2-19 Gas Cooler Technical Data Ready for operation after max. 15 minutes Rated cooling capacity (at 25 °C) 320 kJ/h Ambient temperature 5 °C to 50 °C Gas outlet dew point, preset 5 °C... - Page 26 EGK 2-19 (+) EGK 2-19+ Gas Cooler Technical Data Ready for operation after max. 15 minutes Rated cooling capacity (at 25 °C) 320 kJ/h Ambient temperature 5 °C to 50 °C Gas outlet dew point, preset 5 °C Dew point fluctuations static: ±...
-
Page 27: Technical Data - Options
EGK 2-19 (+) 9.2 Technical Data - Options Analogue Output Cooler Temperature Technical Data Signal 4-20 mA or 2-10 V corresponds to -20 °C to +50 °C cooler temperature Plug M12x1, DIN EN 61076-2-101 Technical Data FF-3-N Moisture Detector Ambient temperature 3 °C to 50 °C max. -
Page 28: Heat Exchanger
EGK 2-19 (+) 9.3 Heat exchanger 9.3.1 Heat exchanger description The energy content of the sample gas and the required cooling capacity of the gas cooler is determined by three parameters: gas temperature ϑ , dew point τ (moisture content) and volume flow v. The outlet dew point rises with increasing energy content of the gas. -
Page 29: Performance Curves
EGK 2-19 (+) 9.4 Performance curves EGK 2-19 Ambient temperature (°C) Note: The limit curves for the heat exchangers exchanger apply to a dew point of 40 °C. EGK 2-19+ Ambient temperature (°C) EGK 2-19+ 2 PTG-2/ PTV-2 in series (dew point = 70 °C) 2 PTG-2/ PTV-2 in series (dew point = 50 °C) -
Page 30: Dimensions
EGK 2-19 (+) 9.5 Dimensions EGK 2-19 EGK 2-19+ Bühler Technologies GmbH BE450010 ◦ 05/2023... -
Page 31: Attached Documents
EGK 2-19 (+) 10 Attached documents – Declaration of conformity KX450010 – RMA - Decontamination Statement BE450010 ◦ 05/2023 Bühler Technologies GmbH... - Page 34 RMA-Formular und Erklärung über Dekontaminierung RMA-Form and explanation for decontamination RMA-Nr./ RMA-No. Die RMA-Nr. bekommen Sie von Ihrem Ansprechpartner im Vertrieb oder Service. Bei Rücksendung eines Altgeräts zur Entsorgung tragen Sie bitte in das Feld der RMA-Nr. "WEEE" ein./ You may obtain the RMA number from your sales or ser- vice representative.
- Page 35 Dekontaminierungserklärung DE000011 Bühler Technologies GmbH, Harkortstr. 29, D-40880 Ratingen 12/2022 Tel. +49 (0) 21 02 / 49 89-0, Fax: +49 (0) 21 02 / 49 89-20 E-Mail: service@buehler-technologies.com Internet: www.buehler-technologies.com...
