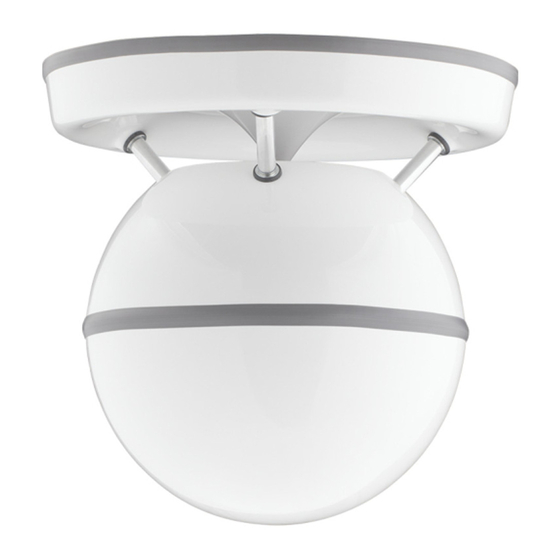

MSE Audio SOUNDSPHERE SS-Q-8 Owner's Manual

Please read the following instructions carefully before installing
your Soundsphere ® speaker. If you have any questions
regarding installation that are not answered in the following
directions, please contact your local sound contractor or the
Soundsphere ® /MSE Audio ® technical support team.
General Information
Maximum Amplifier Power
Nominal Impendance
Wiring
Amplifier connection is via flying leads. Connect the positive
(+) amplifier lead to the RED input wire. Connect the negative
(-) amplifier lead to the BLACK wire. Secure connections us-
ing wire nuts, etc. For wiring optional 100W transformer, see
section "TX-100 Transformer Installation Instructions" on page
2 of this manual.
Mounting
Hanging Kit
Mount using one of the following methods:
a) Properly secured wire rope with a minimum breaking
strength of 225 lbs. (for a 10:1 safety factor).
b) Beam clamp with proper load rating.
It is recommended to use a secondary wire rope support around
one of the Q-8 legs. Do not use rope for mounting. The use of
chain is not recommended unless rated for suspension of loads
greater than or equal to 225 lbs (for a 10:1 safety factor).
Surface Mount Bracket
Secure the bracket to the hard surface using proper hardware.
Secure the Q-8 to the bracket using the washers and nylon
locknuts provided. It is recommended to use a secondary wire
rope support around one of the Q-8 legs and through an unused
bracket hole.
Warranty
Soundsphere loudspeakers carry a 5 year limited warranty and
a 3 year limited warranty on all electrical components. See war-
ranty sheet for details and limitations.
Replacement Parts
8" 100 Watt coaxial loudspeaker driver with crossover.
- Order Model Number CX-8
Always check local requirements for overhead suspension
of loudspeakers.
Contact: MSE Audio, 855.663.5600 / 913.663.5600 / sales@mseaudio.com
100 Watts RMS
8 ohms
Replacing the Coax Driver and Crossover in the Q-8
1. Remove the reflector from the Q-8 by removing the 3
bolts, washers, and tabs.
2. Remove the 4 screws securing the driver. Remove the
driver by gently lifting the tweeter with one hand and
removing it with the other hand. Pull the wire out through
the hole in the bolt.
3. Feed the wire from the replacement driver through the
drilled bolt inside the sphere. Install the new driver and
secure with screws.
Other Information
Wire runs between the amplifier(s) and loudspeaker(s) must be
of the appropriate gauge to insure the full audio performance
capabilities of the Soundsphere loudspeakers. This applies
to all loudspeaker impedances (4 or 8 Ohms) or audio line
voltages (50, 70.7 or 100 Volts). For more information, please
see the 'Downloads" section at www.soundsphere.com, or call
our Customer Service at 913.663.5600.
OWNER'S MANUAL
SS-Q-8

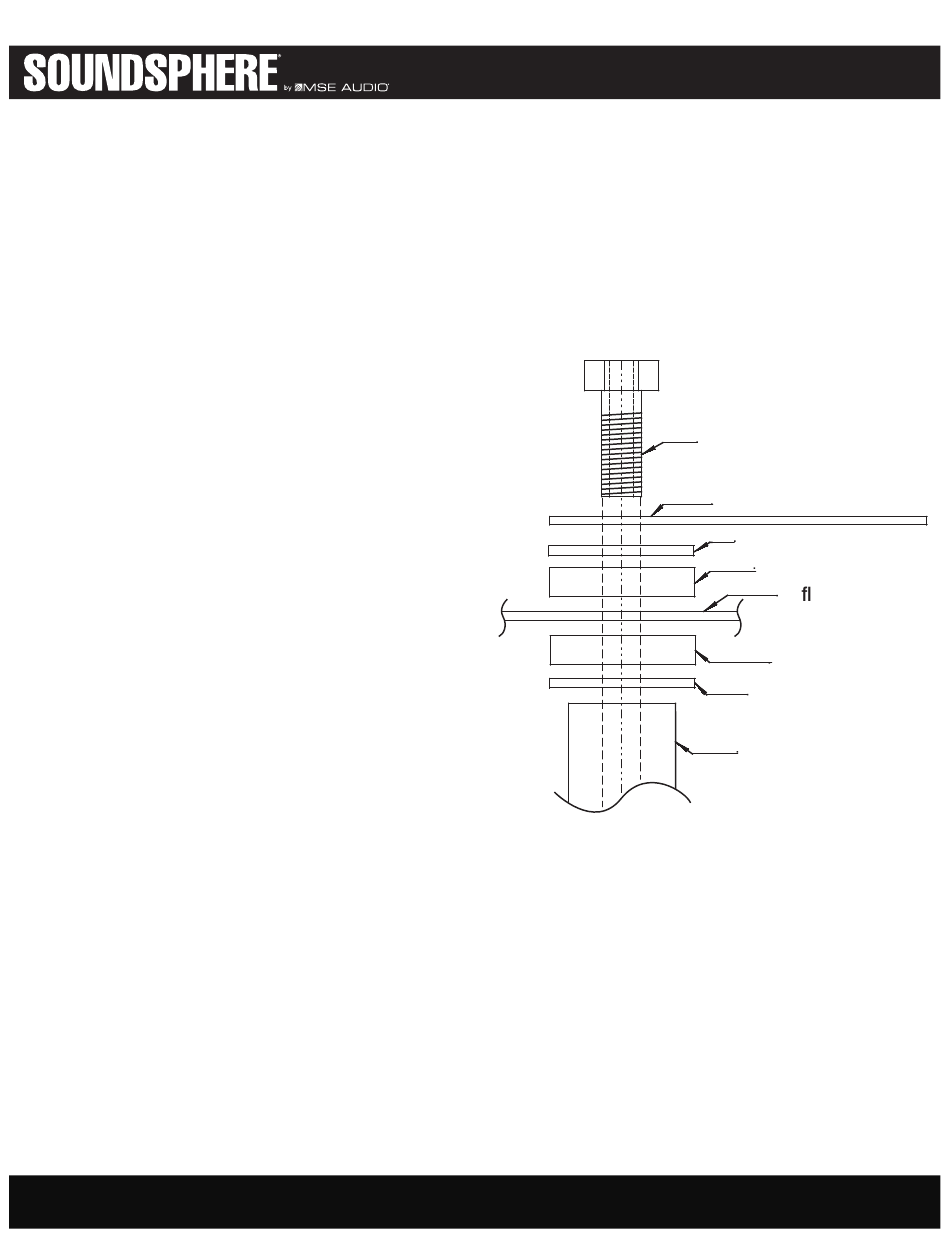

Leg Bolt
Tab
Metal Washer
Rubber Washer
Re ector
Rubber Washer
Metal Washer
Leg
© 2021 MSE Audio. Rev. 02.25.2021
360º of the Best Sound Around™
