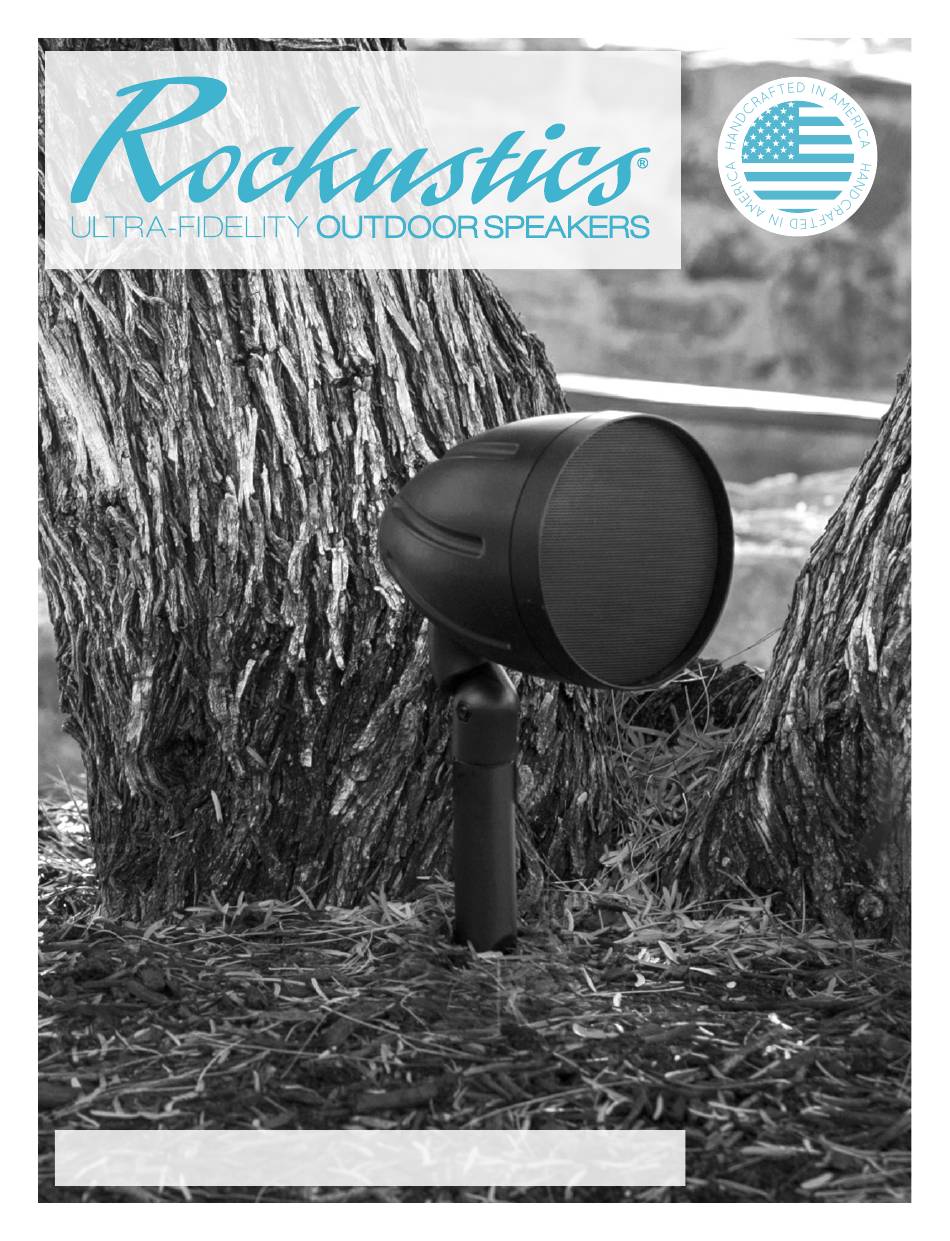

- Page 1 ESCAPE SERIES OWNER’S MANUAL Rev 2.6.2019...
-
Page 2: Cautions And Maintenance
® ® Rockustics /MSE Audio technical support team. Contact information can be found on the back of the manual. Optimizing Speaker Placement for Best Sound All Rockustics speakers can generate a high SPL (sound pressure level). Be ready to rock, but be considerate of your neighbors! Maximum acoustic performance should be an important factor in determining speaker placement. - Page 3 Cautions and Maintenance (Continued) For environments that get snow and ice during the winter months, be sure to check that the openings and woofer cone are clear and there is no hard-packed snow or ice built up in these areas before playing. If there is ice or snow present on the cone, use a hair dryer set on a low setting to to melt it away.
- Page 4 PERISCAPE INSTRUCTIONS Red + Black - ~6-8” ~8” 2. Strip Wire 3. Thread Wire 4. Trim Wire 1. Digging Strip and prepare wire ends for your Pass the wire from the amp through Trim the wire to the appropriate Dig a hole sufficient to bury the speaker configuration.
- Page 5 SUBSCAPE INSTRUCTIONS Daisy Chaining Wiring Wire Nuts Signal Wire Daisy-Chained Speaker or Subwoofer Speaker or Subwoofer 3. 70V Applications 4. Daisy Chaining 1. Install Cap 1. Digging Dig a hole sufficient to bury the For 70V (or 100V) applications, If daisy-chaining, be sure to also Install the cap by threading it onto Subscape so that there is 3-5”...
-
Page 6: Applicable Models

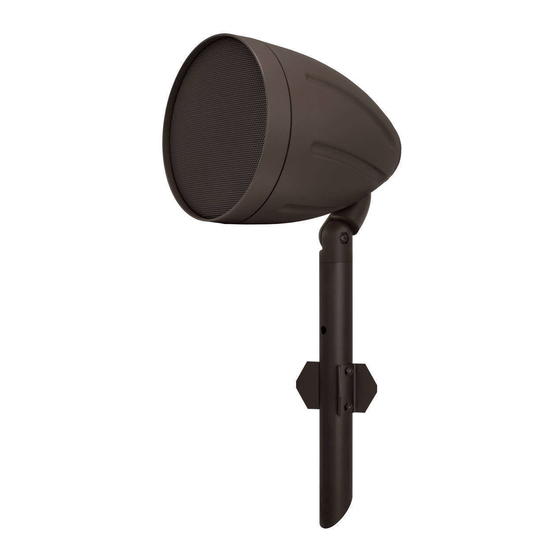

Applicable Models Periscape™ 4 Periscape™ 6 Subscape™ 8 Subscape™ 10 Subscape™ 12 ® ® Rockustics by MSE Audio | 8005 W 110th St. Suite 208 | Overland Park, KS 66210 913-663-5600 or 855-663-5600 | www.Rockustics.com...
