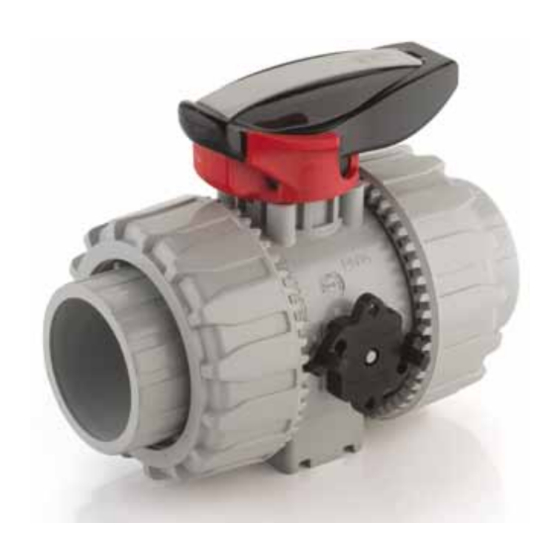

- Page 1 VKD DN 10÷50 PVC-C Dual BloCk® 2-way ball valve...
- Page 2 DN 10÷50 FIP has developed a DuAl BloCk® 2-wAy BAll VAlVe VkD Dual BloCk® 2-way ball valve • Connection system for solvent weld, threaded and flanged joints • Patented SeAT SToP® ball seat carrier system that lets you micro-adjust to introduce a high ball seats and minimise the axial force effect.
- Page 3 HIPVC Ergonomic Robust integrated bracket for DuAl BloCk® patented lock multifunctional handle equipped valve anchoring, for easy and system that ensures union nut with removable tool to adjust quick automation even after tightening hold even in severe the ball seat carrier. valve installation on the system conditions such as vibrations or via the Power Quick module...
-
Page 4: Technical Data
TeChnICal DaTa PReSSuRe VARIATIoN °C ACCoRDING To TeMPeRATuRe For water and non-hazardous fluids to which the material is classified as CHEMICALLY RESISTANT. In other cases, a reduction of the nominal pressure PN is required (25 years with safety factor). Note: When using PVC-C at working temperatures higher than 90°, it is advisable to first contact the service centre. - Page 5 oPeRATING ToRQue AT MAxIMuM woRkING PReSSuRe The information in this leaflet is provided in good faith. no liability will be accepted concerning technical data that is not directly covered by recognised international standards. FIP reserves the right to carry out any modification. Products must be installed and maintained by qualified personnel.
- Page 6 DImensIons VkDIC DUAL BLOCK® 2-way ball valve with female ends for solvent welding, metric series EPDM Code FPM Code VKDIC016E VKDIC016F VKDIC020E VKDIC020F 34.5 VKDIC025E VKDIC025F 69.5 VKDIC032E VKDIC032F 82.5 VKDIC040E VKDIC040F 1007 VKDIC050E VKDIC050F 1717 VKDIC063E VKDIC063F VkDIC/SHx DUAL BLOCK® 2-way ball valve with female ends for solvent welding, metric series, handle block and STAINLESS steel threaded inserts EPDM Code FPM Code...
- Page 7 VkDFC DUAL BLOCK® 2-way ball valve with BSP threaded female ends EPDM Code FPM Code 1/2” 17.8 75.4 VKDFC020E VKDFC020F 3/4” 34.5 VKDFC025E VKDFC025F 1” 69.5 22.6 89.8 VKDFC032E VKDFC032F 1”1/4 82.5 25.1 102.8 VKDFC040E VKDFC040F 1”1/2 24.7 106.6 1040 VKDFC050E VKDFC050F 2”...
- Page 8 VkDoC DUAL BLOCK® 2-way ball valve with fixed flanges, drilled EN/ISO/DIN PN10/16. Face to face according to EN 558-1 EPDM Code FPM Code 481.1 VKDOC020E VKDOC020F 34.5 13.5 663.1 VKDOC025E VKDOC025F 69.5 895.9 VKDOC032E VKDOC032F 82.5 1379 VKDOC040E VKDOC040F 1761 VKDOC050E VKDOC050F 2741...
- Page 9 aCCessorIes CVDe Long spigot PE100 end connectors for joints with electrofusion fittings or for butt welding Code CVDE11020 CVDE11025 CVDE11032 CVDE11040 CVDE11050 CVDE11063 SHkD Handle block kit 0° - 90° lockable Code 16 - 20 10 - 15 SHKD020 25 - 32 20 - 25 SHKD032 40 - 50...
- Page 10 eASyToRQue kIT Kit for ball seat carrier tightening adjustment for DUAL BLOCK® DN 10÷50 series valves Torque Code recommended* 3/8”-1/2” 10-15 3 N m - 2,21 Lbf ft KET01 3/4” 4 N m - 2,95 Lbf ft KET01 1” 5 N m - 3,69 Lbf ft KET01 1”1/4 5 N m - 3,69 Lbf ft...
- Page 11 MSkD MSKD is a limit switch box with electromechanical or inductive micro switches to re- motely signal the valve position. Manual valve installation is possible using the Power Quick actuation module. The box can be assembled on the VKD valve even if already installed on the system. Code Code Code...
- Page 12 ComPonenTs exPloDeD VIew 1 Handle insert (PVC-U - 1) 8 Ball seat O-Ring 14 Spring (STAINLESS steel - 1)** (EPDM or FPM - 2)* 2 Handle (HIPVC - 1) 15 Handle safety block (PP-GR - 1)** 9 ...
-
Page 13: Installation
DISASSeMBly ASSeMBly Fig. 1 1) Isolate the valve from the line (re- 1) All the O-rings (3, 8, 9, 10) must be lease the pressure and empty the inserted in their grooves as shown in pipeline). the exploded view. 2) Release the union nuts by pressing 2) Insert the stem (4) from inside the the lever on the DUAL BLOCK®... - Page 14 Fig. 5 7) Lock the union nuts by returning the DUAL BLOCK® to its housing, pressing on it until the hinges lock on the nuts. 8) If necessary, support the pipework with FIP pipe clips or by means of the carrier built into the valve itself (see paragraph “fastening and supporting”).
