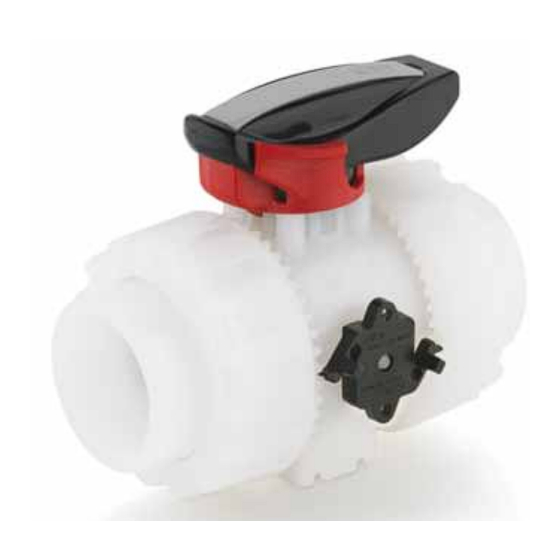

- Page 1 VKD DN 10÷50 PVDF DUAL BLOCK® 2-way ball valve...
- Page 2 DN 10÷50 FIP has developed a DUAL BLOCK® 2-WAy BALL VALVe VKD DUAL BLOCK® 2-way ball valve • Connection system for weld and flanged joints • Patented SeAT STOP® ball carrier system that lets you micro-adjust ball to introduce a seats and minimise the axial force effect.
- Page 3 HIPVC Ergonomic Robust integrated bracket for DUAL BLOCK® patented lock multifunctional handle equipped valve anchoring, for easy and system that ensures union nut with removable tool to adjust quick automation even after tightening hold even in severe the ball seat carrier. valve installation on the system conditions such as vibrations or via the Power Quick module...
-
Page 4: Technical Data
TeChnICAL DATA PReSSURe VARIATION °C ACCORDINg TO TeMPeRATURe For water and non-hazardous fluids with regard to which the material is classified as CHEMICALLY RESISTANT. In other cases, a reduction of the nominal pressure PN is required (25 years with safety factor). - Page 5 OPeRATINg TORQUe AT MAxIMUM WORKINg PReSSURe The information in this leaflet is provided in good faith. no liability will be accepted concerning technical data that is not directly covered by recognised international standards. FIP reserves the right to carry out any modification. Products must be installed and maintained by qualified personnel.
- Page 6 DImensIOns VKDIF DUAL BLOCK® 2-way ball valve with female ends for socket welding, metric series Code 74.5 VKDIF016F VKDIF020F 34.5 VKDIF025F 69.5 VKDIF032F 82.5 VKDIF040F 1242 VKDIF050F 2187 VKDIF063F VKDIF/SHx DUAL BLOCK® 2-way ball valve with handle lock and STAINLESS steel threaded inserts for fastening, with female ends for butt welding, metric series Code 74.5...
- Page 7 VKDOF DUAL BLOCK® 2-way ball valve with fixed flanges, drilled EN/ISO/DIN PN10/16. Face to face according to EN 558-1 Code VKDOF020F 34.5 VKDOF025F 69.5 1024 VKDOF032F 82.5 1583 VKDOF040F 2024 VKDOF050F 3219 VKDOF063F VKDOAF DUAL BLOCK® 2-way ball valve with fixed flanges, drilled ANSI B16.5 cl.150 #FF Code 1/2”...
- Page 8 ACCessOrIes CVDF End connector in PVDF SDR 21 PN 16, long spigot, for butt welding Code CVDF21020 CVDF21025 CVDF21032 CVDF21040 CVDF21050 CVDF21063 SHKD Handle block kit 0° - 90° lockable Code 16 - 20 10 - 15 SHKD020 25 - 32 20 - 25 SHKD032 40 - 50...
- Page 9 eASyTORQUe KIT Kit for ball seat carrier tightening adjustment for DUAL BLOCK® DN 10÷50 series valves Tightening torque Code recommended* 3/8”-1/2” 10-15 3 N m - 2,21 Lbf ft KET01 3/4” 4 N m - 2,95 Lbf ft KET01 1” 5 N m - 3,69 Lbf ft KET01 1”1/4...
- Page 10 MSKD MSKD is a limit switch box with electromechanical or inductive micro switches to re- motely signal the valve position. Manual valve installation is possible using the Power Quick actuation module. The box can be assembled on the VKD valve even if already installed on the system. Code Code Code...
-
Page 11: Exploded View
COmPOnenTs exPLODeD VIeW 1 Handle insert (PVC - 1) 8 Ball seat O-ring 14 Spring (STAINLESS steel - 1)** (FPM - 2)* 2 Handle (HIPVC - 1) 15 Handle safety block (PP-GR - 1)** 9 Radial seal O-Ring 3 ... -
Page 12: Installation
DISASSeMBLy ASSeMBLy Fig. 1 1) Isolate the valve from the line (re- 1) All the O-rings (3, 8, 9, 10) must be lease the pressure and empty the inserted in their grooves as shown in pipeline). the exploded view. 2) Unlock the union nuts by pressing 2) Insert the stem (4) from inside the the lever on the DUAL BLOCK®... - Page 13 Fig. 5 8) If necessary, support the pipework with FIP pipe clips or by means of the carrier built into the valve itself (see paragraph “fastening and supporting”). The VKD valve can be equipped with a handle lock to prevent ball rotation (supplied separately).
