Summary of Contents for Aliaxis VEE Series

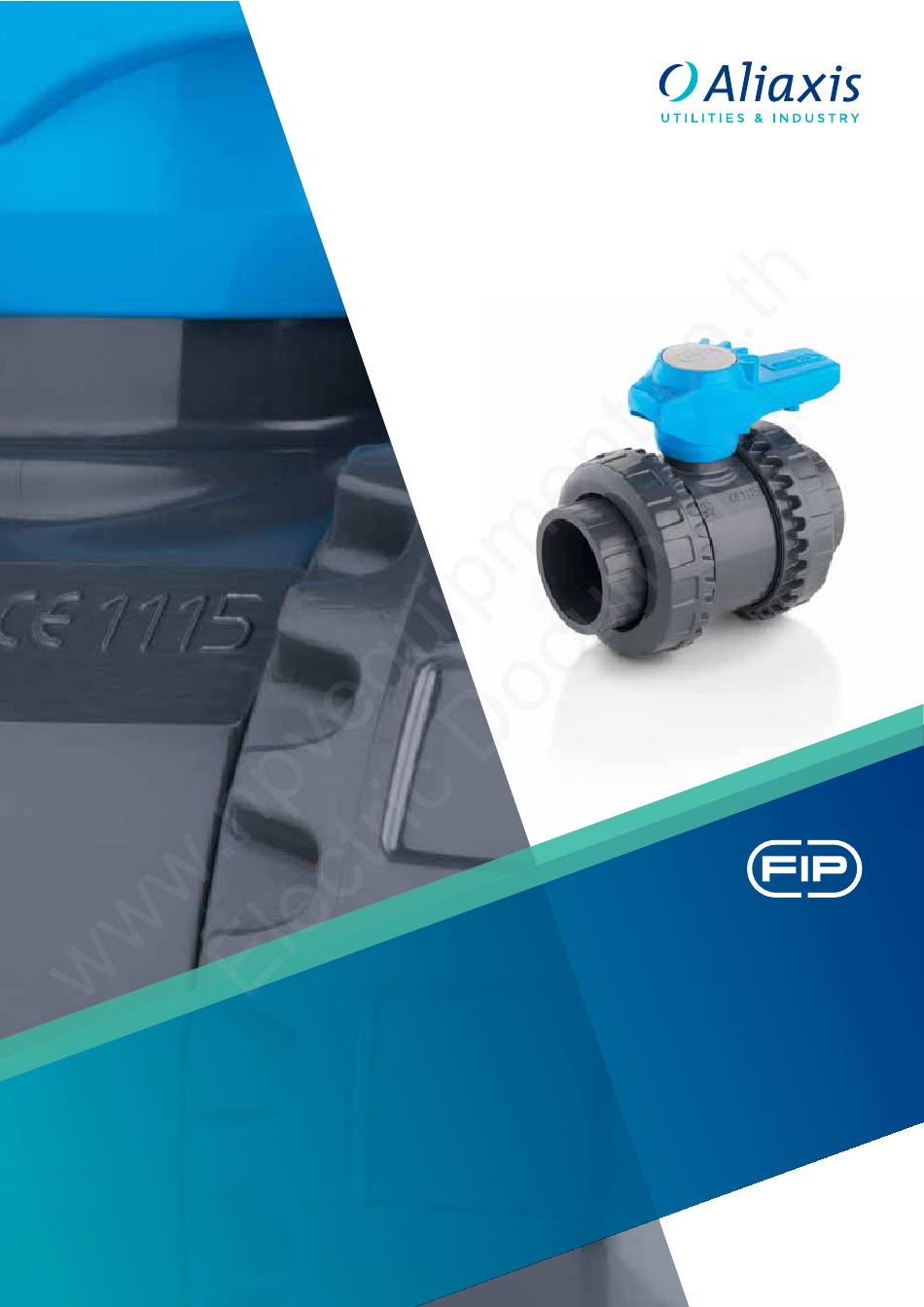

- Page 1 VEE DN 10÷50 PVC-U Easyfit 2-way ball valve...

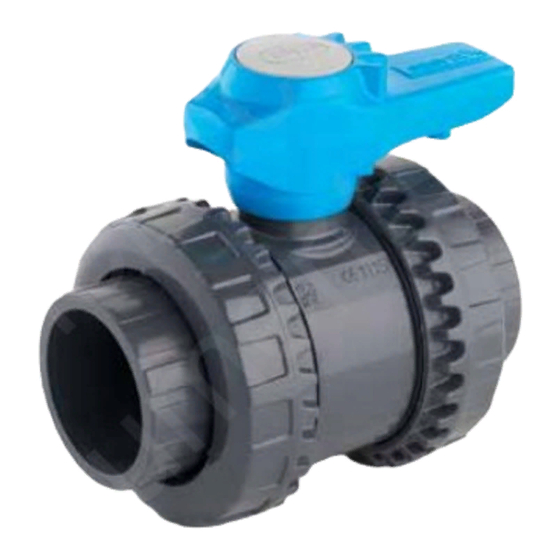

- Page 2 DN 10÷50 FIP and Giugiaro EASYFIT 2-WAY BALL VALVE Design designed and developed VEE • Patented Easyfit system: innovative mechanism based on the principle of the bevel gear pair that controls valve union nut rotation during installa- Easyfit, tion. the innovative True •...
- Page 3 Two position Easyfit ergonomic The PE ball seat system with Settings for the customisable multifunctional handle with Labelling System using the locked carrier adjustable via union nut tightening control LCE module (available as Easyfit multifunctional handle which can be used to adjust an accessory).
-
Page 4: Technical Data
TECHNICAL DATA PRESSURE VARIATION °C ACCORDING TO TEMPERATURE For water and harmless fluids to which the material is classified as CHEMICALLY RESISTANT. In other cases, a reduction of the nominal PN pressure is required (25 years with safety factor). Working temperature PRESSURE DROP 1000 10000... - Page 5 DIMENSIONS VEEIV Easyfit 2-way ball valve with female ends for solvent welding, metric series Code VEEIV016E VEEIV020E VEEIV025E VEEIV032E VEEIV040E VEEIV050E 1325 VEEIV063E VEEFV Easyfit 2-way ball valve with BSP threaded female ends Code 3/8” 11.4 59.2 VEEFV038E 1/2” VEEFV012E 3/4”...
- Page 6 VEEAV Easyfit 2-way ball valve with female ends for solvent welding, ASTM series Code 1/2” 22.5 VEEAV012E 3/4” 25.5 VEEAV034E 1” 28.7 59.5 VEEAV100E 1” 1/4 VEEAV114E 1” 1/2 VEEAV112E 2” 38.2 97.6 1325 VEEAV200E VEENV Easyfit 2-way ball valve with female ends, NPT thread Code 3/8”...
- Page 7 VEEGV Easyfit 2-way ball valve with female ends, JIS thread Code 1/2” VEEGV012E 3/4” VEEGV034E 1” VEEGV100E 1” 1/4 VEEGV114E 1” 1/2 VEEGV112E 2” 1325 VEEGV200E ACCESSORIES CVDE Long spigot PE100 end connectors for joints with electrofusion fittings or for butt welding Code CVDE11020...
- Page 8 EASYTORQUE KIT Kit for union nut tightening adjustment and ball seat carrier for Easyfit DN 10÷50 valves. *Union nut tightening *Seat carrier tightening Code torque torque 3/8”-1/2” 10-15 5 N m - 3,69 Lbf ft 3 N m - 2,21 Lbf ft KET01 3/4”...
- Page 9 CUSTOMISATION The Easyfit VEE DN 10÷50 valve is set for the customisable Labelling System. Fig. 1 This system lets you create special labels to insert in the handle. This makes it ex- tremely easy to apply company logos, identification serial numbers or service indica- tions such as, for example, the valve function in the system, the transported fluid, but also specific information for customer service, such as the customer name or installa- tion date or location on the valves.
-
Page 10: Exploded View
COMPONENTS EXPLODED VIEW Handle plug (PVC-U - 1) Radial seal O-Ring Socket seal O-Ring (EPDM - 1)* (EPDM - 2)* Stem O-Ring (EPDM - 2)* End connector (PVC-U - 2) Handle (HIPVC - 1) Stem (PVC-U - 1) Ball seat carrier Union nut (PVC-U - 2) (PVC-U - 1) Body (PVC-U - 1) -
Page 11: Installation
ASSEMBLY DISMOUNTING Fig. 5 1) Isolate the valve from the line (re- 1) All the O-Rings (2, 6, 10) must be in- lease the pressure and empty the serted in their grooves as shown in the pipeline). exploded view. 2) Fully unscrew the union nuts (13) 2) Insert the stem (3) from inside the body from the valve body and slide the (4). - Page 12 Fig. 9 9) Repeat point 7 for the other union nut. Note: A small force applied on the handle develops a torque much higher than manual tightening. You can also, using the Easytorque kit (fig. 12), supplied as an accessory, tighten union nuts using a torque wrench to quantify the force and thus monitor the stress applied to the thermoplastic threads according to the installation indica- tions in the instructions enclosed with the kit.
- Page 13 VEE DN 65÷100 PVC-U Easyfit 2-way ball valve...
- Page 14 DN 65÷100 FIP and Giugiaro EASYFIT 2-WAY BALL VALVE Design designed and developed VEE • Patented Easyfit system: innovative mechanism that lets you use the quick release handle to adjust the ball carrier. Easyfit, • Connection system for solvent weld and threaded joints the innovative True •...
- Page 15 Innovative quick release Easyfit Valve body set for SHE kit the LSE set (available as an handle made up of a central installation (available as accessory). The customisation hub firmly coupled with the an accessory) that blocks lets you identify the valve on stem by a dual spoke grip that the system according to specific the closing and opening...
- Page 16 TECHNICAL DATA PRESSURE VARIATION °C ACCORDING TO TEMPERATURE For water and harmless fluids to which the material is classified as CHEMICALLY RESISTANT. In other cases, a reduction of the nominal PN pressure is required (25 years with safety factor). Working temperature PRESSURE DROP 1000 10000...
- Page 17 OPERATING TORQUE AT MAXIMUM WORKING RPESSURE PN 6 PN 10 PN 16 The information in this leaflet is provided in good faith. No liability will be accepted concerning technical data that is not directly covered by recognised international standards. FIP reserves the right to carry out any modification. Products must be installed and maintained by qualified personnel.
- Page 18 DIMENSIONS VEEIV Easyfit 2-way ball valve with female ends for solvent welding, metric series Code 2750 VEEIV075E 3432 VEEIV090E 174.5 5814 VEEIV110E VEEFV Easyfit 2-way ball valve with BSP threaded female ends Code 2” 1/2 30.2 150.6 2750 VEEFV212E 3” 33.3 181.4 3432...
- Page 19 VEENV Easyfit 2-way ball valve with female ends, NPT thread Code 2” 1/2 33.2 144.6 2750 VEENV212E 3” 35.5 3432 VEENV300E 4” 174.5 37.6 207.8 5814 VEENV400E VEEJV Easyfit 2-way ball valve with female ends, JIS series Code 2” 1/2 2750 VEEJV212E 3”...
- Page 20 ACCESSORIES CVDE Long spigot PE100 end connectors for joints with electrofusion fittings or for butt welding Code CVDE11075 11 CVDE11090VXE CVDE11110VXE Stem extension Code Code inch B min ISO pipe ASTM-BS pipe 2” 1/2 PSE090 PSE300 3” PSE090 PSE300 4” PSE110 PSE400 Transparent protection plug with tag holder...
- Page 21 POWER QUICK EASYFIT The valve can be equipped with pneumatic or electric standard actuators and gearboxfor heavy-duty operations, using the PP-GR module reproducing the drilling pattern foreseen by ISO 5211. p x j P x J Code F05 x 6,5 F07 x 8,5 PQE090 F05 x 6,5...
- Page 22 CUSTOMISATION The Easyfit VEE DN 65÷100 valve is set for the customisable Labelling System. Fig. 1 This system lets you create special labels to insert in the handle. This makes it ex- tremely easy to apply company logos, identification serial numbers or service indica- tions such as, for example, the valve function in the system, the transported fluid, but also specific information for customer service, such as the customer name or installa- tion date or location on the valves.
- Page 23 COMPONENTS EXPLODED VIEW Easyfit quick release Body (PVC-U - 1) Union nut (PVC-U - 2) handle (HIPVC - 1) Ball seat O-Ring Grey protection plug Stem O-Ring (EPDM, FPM - 2) (PVC - 1) (EPDM - 2)* Radial seal O-Ring Central hub (HIPVC - 1) Stem (PVC-U - 1) (EPDM - 1)*...
- Page 24 DISMOUNTING ASSEMBLY Fig. 5 1) Isolate the valve from the line (re- 1) All the O-rings (3, 8, 9, 10) must be lease the pressure and empty the inserted in their grooves as shown in pipeline). the exploded view. 2) Fully unscrew the union nuts (13) 2) Place the anti-friction disk (16) on the from the valve body and slide the stem (4) and insert it in the body (7).
- Page 25 Fig. 9 6) If necessary, support the pipe with FIP pipe clip model ZIKM and DSM distance plates. The VEE valve can be equipped with a simple locking device by inserting a lock to protect the system against tampering (fig. 12). The valve body and hub are, in fact, set to house a lockable plate on the valve body using two self-threading screws (see SHE accessories) (fig.
