HP Compaq 6005 Pro Product End-Of-Life Disassembly Instructions page 5

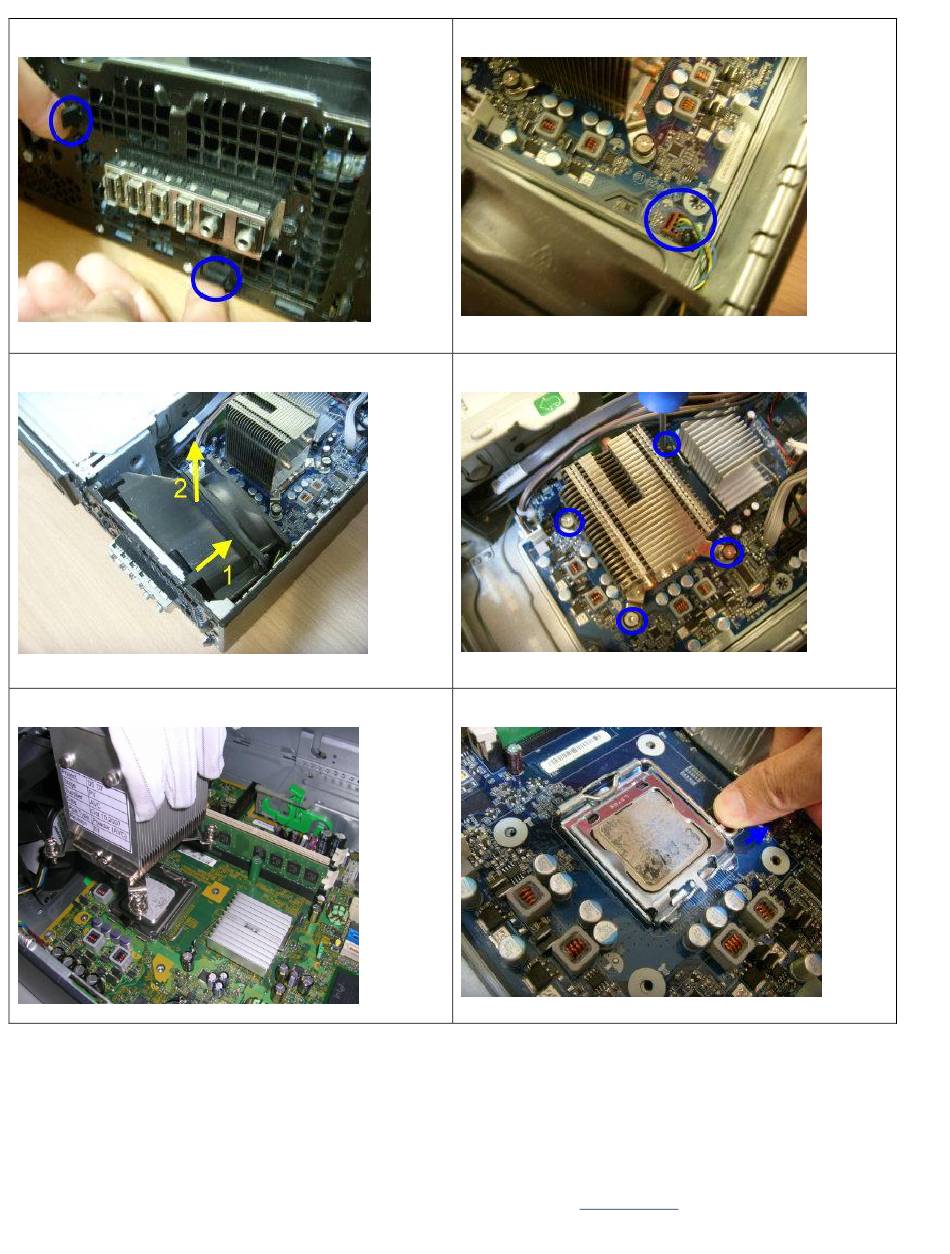

Figure 7: Press 2 clip to Remove Fan holder from
front chassis,
Figure 9 : Remove fan and fan holder from chassis
Figure 11: Remove Heat sink from PCA
EL-MF877-00
Template Revision B
PSG instructions for this template are available at
Figure 8: Disconnect Fan connector from PCA
header
Figure 10 : Wresting screw with screw driver release
4 qyt's screw
Figure 12: Press CPU chassis lock
EL-MF877-01
Page 5
