Larson Electronics HUL-LED25WRE-CPR-TRP Instruction Manual

6 Million Candlepower - 12-32V DC - 1000' Beam - Trailer Plug

I. Operation and Plug Options

I. On/Off Operation

This flashlight is operated by a simple push
button located on the front side of the handle.
On/Off Push Button
Larson Electronics, LLC
25W Handheld LED Hunting Spotlight
Instruction Manual
Phone: (877) 348-9680

II. Plug Options

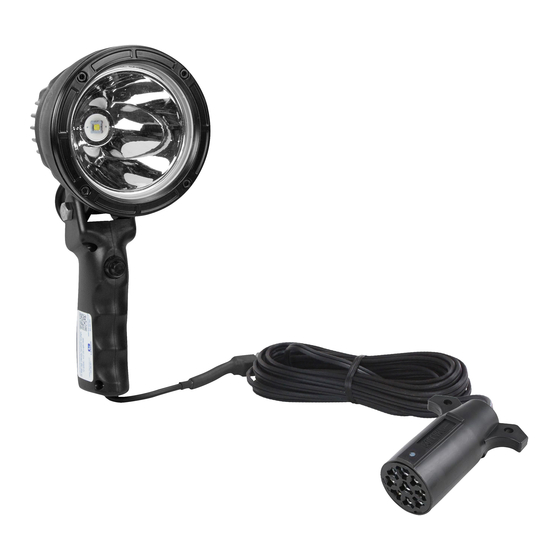

Each light comes with a detachable 16 foot
coil cord with trailer plug, specified when
ordering. The cord is detached via a
weatherproof, 2 pin Deutsch connector which
easily and securely attaches and detaches
the coil cord from the spotlight. Other cords,
including 21 foot cords with ring terminals
(C-21RT), 16 foot cord with spring battery
clamps (alligator clips) (C-16BC) and a 16
foot straight cord with cigarette plug
(C-16CP) are available. This light can be
ordered in configuration from 12-32V DC,
allowing it to be used with any vehicle or ATV
equipped with a trailer receptacle. Simply
connect coil cord to light via Deutsch
connector, then connect trailer plug to
compatible outlet outputting correct voltage.
Use pistol grip on/off switch to operate light.
Fax: (903) 498-3364
HUL-LED25WRE-CPR-TRP
www.larsonelectronics.com
1 of 2
