Summary of Contents for Ferroli 47-267-63

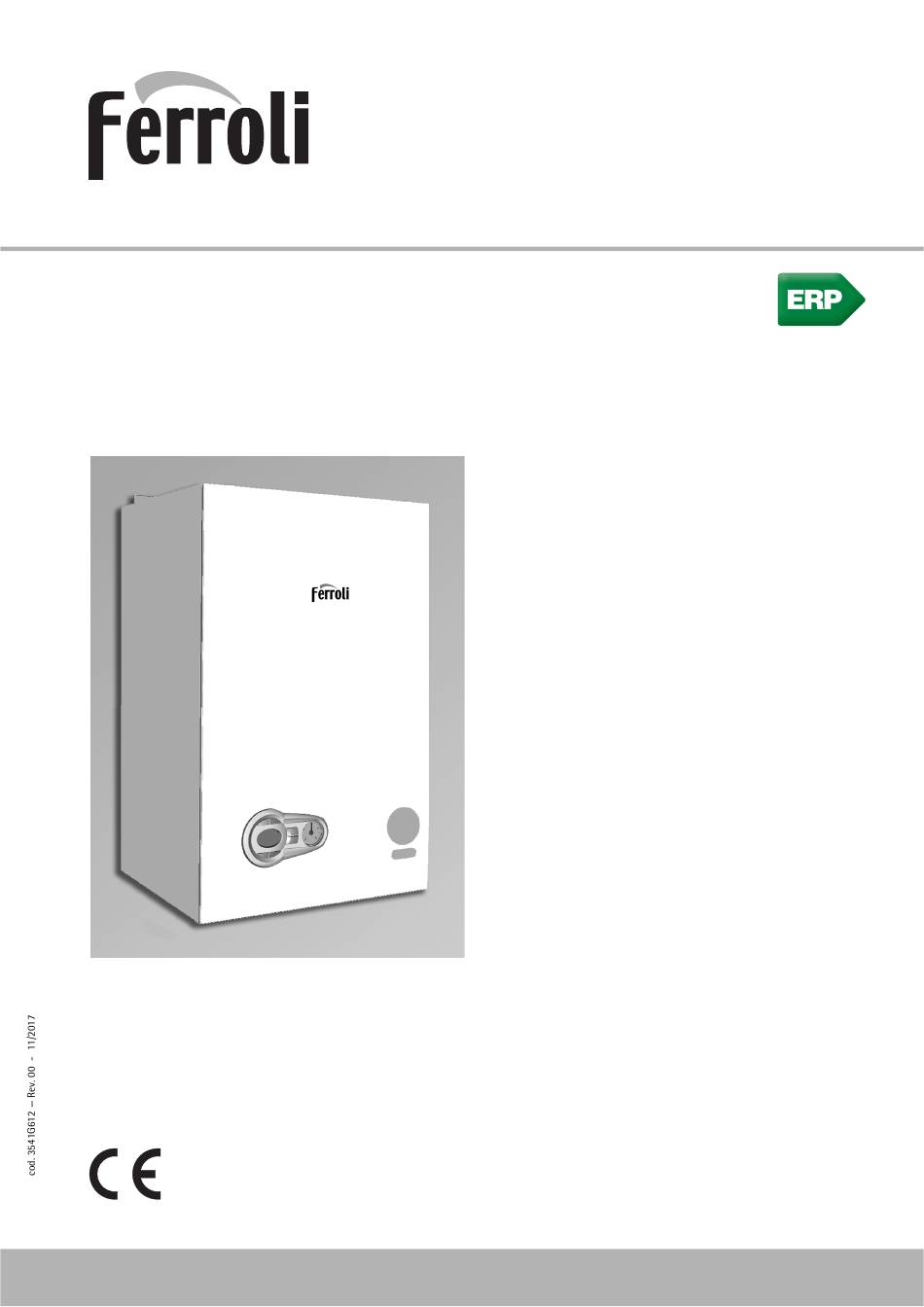

Page 1
MODENA 38C HE INSTRUCTIONS FOR USE, INSTALLATION AND MAINTENANCE “MODENA 38 C HE” GC N° 47-267-63...
Page 2
“This record must be completed and left with the end user”. Ferroli is a member of the Benchmark initiative and fully supports the aims of the programme. Benchmark has been introduced to improve the standards of installation and commissioning of central heating systems in the UK and to encourage the regular servicing of all central heating systems to ensure safety and efficiency.
MODENA 38C HE 1 Instructions ..........................4 1.1 Introduction............................. 4 1.2 Control panel ............................4 1.3 Turning ON and OFF..........................5 1.4 Adjustments............................7 2 Installation ..........................9 2.1 General Instructions ..........................9 2.2 Place of installation ..........................10 2.3 Plumbing connections .......................... 10 2.4 Connection to the gas system ......................
1. Instructions 1.1 Introduction Thank you for choosing the MODENA 38C HE, a FERROLI wall-mounted boiler the latest generation appliance, fea- turing advanced design and cutting-edge technology. MODENA 38C HE is a high-efficiency condensing pre-mix appliance for central heating and hot water production, run- ning on natural gas or LPG, generating extremely low emissions.
MODENA 38C HE Indication during boiler operation Central Heating mode The Central Heating heat demand (generated by the OpenTherm Remote Control, the Room Thermostat or the Clock) is indicated by the flashing of the Hot Air symbol over the radiator (part. 13 and 14 - fig. 1). The display indicates the actual Central Heating water temperature (part.
Page 6
MODENA 38C HE Ignition Ensure the power is on to the appliance. fig. 5 - Ignition fig. 6 - Air purge • During the first 5 seconds, the display shows the software version of the pcb. • For the first 300 seconds, the display shows FH that identifies the Air purge function. •...
MODENA 38C HE 1.4 Adjustments Heating temperature setting To set the system flow temperature, use the CH buttons (part. 3 and 4 - fig. 1). It can be varied from a minimum of 20°C to a maximum of 80°C. fig. 9 Domestic hot water temperature setting To set the hot water temperature, use the DHW buttons (part.
Page 8
MODENA 38C HE O.T.C. setting To enter the OTC mode, press OTC button (part. 6 - fig. 1) for 5 seconds. The display shows CU flashing (fig. 11); to set Curve, use the DHW buttons (part. 1 and 2 - fig. 1). It can be varied from 1 to 10, in accordance with the chart (fig.
MODENA 38C HE 2. Installation 2.1 General Instructions This unit must only be used for its intended purpose. This unit is designed to heat water to a temperature below boiling point and must be connected to a heating system and/or a water supply system for domestic use, com- patible with its performance, characteristics and heating capacity.
MODENA 38C HE 2.2 Place of installation The combustion circuit is sealed with respect to the place of installation and therefore the unit can be in- stalled in any room. However, the place of installation must be sufficiently ventilated to prevent the creation of dangerous conditions in case of even slight gas leaks.
Page 11
MODENA 38C HE Isolation valve kit The isolation valves supplied (see fig. 16) must be installed between the boiler and heating system to allow the boiler to be isolated from the system if necessary. Flow isolation valve 3/4” Domestic hot water outlet elbow 1/2” Gas cock 1/2”...
MODENA 38C HE Water treatment If treatment of the water is necessary, Ferroli recommends the exclusive use of specific products such as Fernox or Sentinel to be applied in compliance with the producer's instructions. For more information, please contact: Fernox Manufacturing Co. LTD.
Page 13
MODENA 38C HE Accessing electrical terminal block The electrical connections terminal block can be accessed after removing the casing The layout of the terminals for the various connections is given in the wiring diagram in fig. 38. ON/OFF SWITCH (configurable) fig.
Only a Ferroli flue system (with respective accessories) must be used with this unit, as required by BS 5440 and CE standards.
Page 15
MODENA 38C HE Other coaxial connections fig. 20 - Examples of connection with coaxial pipes ( = Air / = Fumes) For coaxial connection, fit the unit with one of the following starting accessories. For the wall hole dimensions, refer to section 4.1 Dimensions and connections.
Page 16
MODENA 38C HE Connection with twin pipe flue fig. 22 - Examples of connection with twin pipe flue ( = Air / = Fumes) For the connection of twin pipe flue, fit the unit with the following starting accessories: Ø 81 Ø...
Page 17
MODENA 38C HE Position of terminals D, E fig. 24 Minimum dimensions of fume exhaust terminals Directly under an opening, air inlet, openable window, etc. 300 mm Above an opening, air inlet, openable window, etc. 300 mm Horizontally to an opening, air inlet, openable window, etc. 300 mm Under gutters, drain pipes 75 mm...
MODENA 38C HE Connection to multiple flues or single flues with natural draught To connect the MODENA 38C HE boiler to a multiple flue or a single flue with natural draught, the flue or chimney must be expressly designed by professionally qualified technical personnel in conformity with the current standards and regulations. In particular, flues and chimneys must: •...
Page 19
MODENA 38C HE Condensate drain The condensate should be run inside as far as is practicably possible. For that purpose, use a pipe of at least 22 mm supplied with diameter and a trap with flexible connection the unit to facilitate connection of the condensate drain pipe. The pipe must be in solvent weld plastic and not in copper, since the condensate has a pH of 4 (slightly acid).
All adjustment, conversion, startup and maintenance operations described below must only be carried out by Qualified Per- sonnel (meeting the professional technical requirements prescribed by current regulations). FERROLI declines any liability for damage and/or injury caused by unqualified and unauthorised persons tampering with the unit.
MODENA 38C HE 3.2 Start-up Checks to be made on initial start up, and after all maintenance operations that involved disconnection from the systems or an operation on safety devices or parts of the boiler: Before lighting the boiler • Open any valves between the boiler and the system.
MODENA 38C HE 3.3 Commisioning instructions General PLEASE NOTE: The combustion for this appliance has been checked, adjusted and preset at the factory for operation on the gas type defined on the appliance data plate. Having checked: • That the boiler has been installed in accordance with these instructions, •...
MODENA 38C HE 3.4 Routine servicing, maintenance & repair General PLEASE NOTE: During routine servicing, and after any maintenance or change of part of the combustion circuit, we recommend that the following is checked: • The integrity of the flue system and the flue seals; •...
Page 24
MODENA 38C HE Opening the casing To open the boiler casing, you need to follow the sequence given below and the instructions of fig. 31. 1. Using a screwdriver, partially unscrew the 2 screws “A” (fig. 30) 2. Lift the panel “B” Before carrying out any operation inside the boiler, disconnect the electrical power supply and close the gas cock upstream fig.
Page 25
MODENA 38C HE Setting the Air/Gas Ratio valve There are two adjustments possible on the air/gas ratio valve, the throttle setting at maximum rate and the offset setting at minimum rate. If either setting is adjusted the combustion values must be rechecked at both rates. At Maximum Rate: 1.
MODENA 38C HE 3.5 Troubleshooting Diagnostics The boiler is equipped with an advanced self-diagnosis system. In case of a boiler fault, the display will flash together with the fault symbol (detail 11 - fig. 1) indicating the fault code. Certain faults cause permanent boiler shutdowns (marked with the letter “A”): to restore operation, press the RESET button (detail 6 - fig.
MODENA 38C HE 4. Technical data and characteristics 4.1 Dimensions and connections 2 3 4 54 51 81 fig. 34 - Dimensions and connections Heating system flow Domestic hot water outlet Gas inlet Cold water inlet Heating system return cod. 3541G612 - Rev. 00 - 11/2017...
MODENA 38C HE 4.2 General view and main components WILO fig. 35 - General view Gas inlet Gas valve Domestic hot water outlet Expansion tank Cold water inlet Ignition/ionization electrode System flow 114 Water pressure switch System return 136 Flow meter Safety valve 186 Return sensor Heating circulating pump...
MODENA 38C HE 4.5 Diagrams Head available for the system (MODENA 38C HE) H [m H 1.000 1.500 2.000 2.500 Q [l/h] fig. 37 Boiler pressure losses Circulating pump min. speed Circulating pump max. speed cod. 3541G612 - Rev. 00 - 11/2017...
Page 36
GAS BOILER SYSTEM COMMISSIONING CHECKLIST This Commissioning Checklist is to be completed in full by the competent person who commissioned the boiler as a means of demonstrating MODENA 38C HE compliance with the appropriate Building Regulations and then handed to the customer to keep for future reference. CONTROLS Optimum start control Fitted...
Page 37
SERVICE RECORD It is that your heating system is serviced and that the appropriate Service Interval Record is completed. MODENA 38C HE Service Provider SERVICE 01 SERVICE 02 ² % ² % ² % ² % SERVICE 03 SERVICE 04 ²...
Page 40
MODENA 27C HE / 32C HE Before contacting Ferroli please have available the completed BENCHMARK document (located in the back of this manual), boiler serial number and model detail. For Technical assistance during the installation, call our Technical Helpline on 0843 479 0479.
